UT-10947-A - Homelite 16" Chainsaw, 33cc Engine Internal - Oil Pump Parts Diagram

16" Chainsaw, 33cc

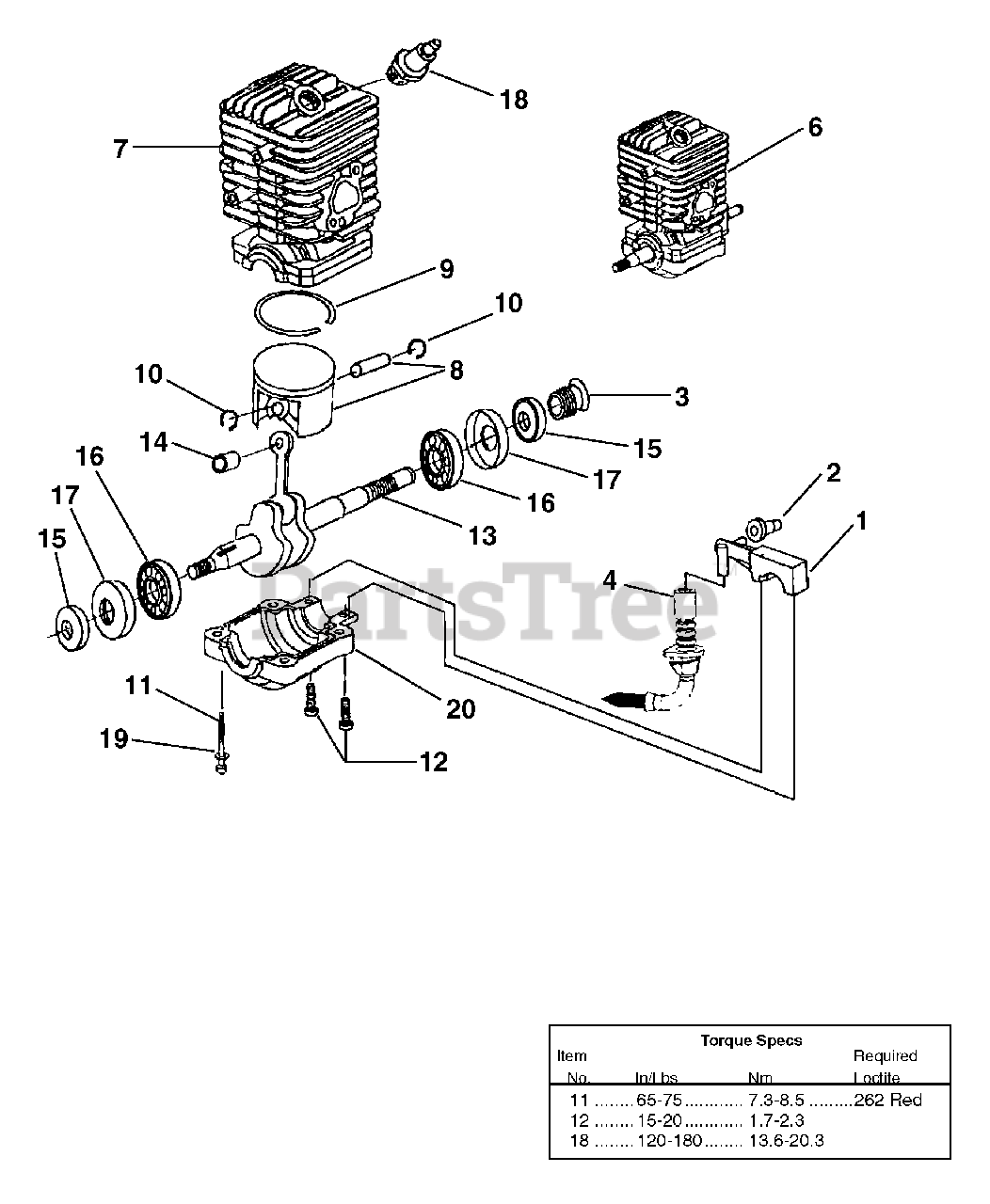

Engine Internal - Oil Pump Parts Diagram

  • Title

1

Homelite UP06602

Oil Pump Kit

Note: Include items 1-4

$

$

Not available

2

Homelite 06841

Grommet, Oil Outlet
(Superseded to 570226001)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 06847

Left Hand Worm
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite PA01037

Oil Intake Tube w/Filter

$

$

Not available

6

Homelite UP03119A

Short Block, Complete (33cc)

Note: Include items 6-17

$

$

Not available

7

Homelite A08666A

Cylinder Kit (33cc)

Note: Include items 7

$

$

Not available

Homelite 900848001

Gasket, Muffler

Note: (Not Shown)

$1.49

$

In Stock, only 1 left!

0

Homelite 06840A

Gasket, Heat Dam

Note: (Not Shown)

$

$

Not available

Homelite 98339

Gasket, Carburetor
(Superseded to 900843001)

Note: (Not Shown)

$

$

Not available

8

Homelite UP06971A

Piston & Pin (33cc)

Note: Include items 8-10

$

$

Not available

9

Homelite 04933

Piston Ring

$

$

Not available

10

Homelite 64813

Ring, Retaining

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite PS04989

Screw, Pan Hd., Plastite (8-32 x5/8" )
(Superseded to 660627001)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite PA00979

Crankshaft & Rod Assembly

$

$

Not available

14

Homelite PS04921

Bearing, Needle

$

$

Not available

15

Homelite 04920

Shaft Seal
(Superseded to 570220001)

$

$

Not available

16

Homelite A04931A

Bearing & Rubber Case
(Superseded to UP04176A)

$

$

Not available

17

Homelite 04919

Rubber Case
(Superseded to 570221001)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite PS02227

Spark Plug
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

19

Homelite 84008

Washer
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 04909

Lower Crankcase
(Superseded to 640818001)

$

$

Not available
