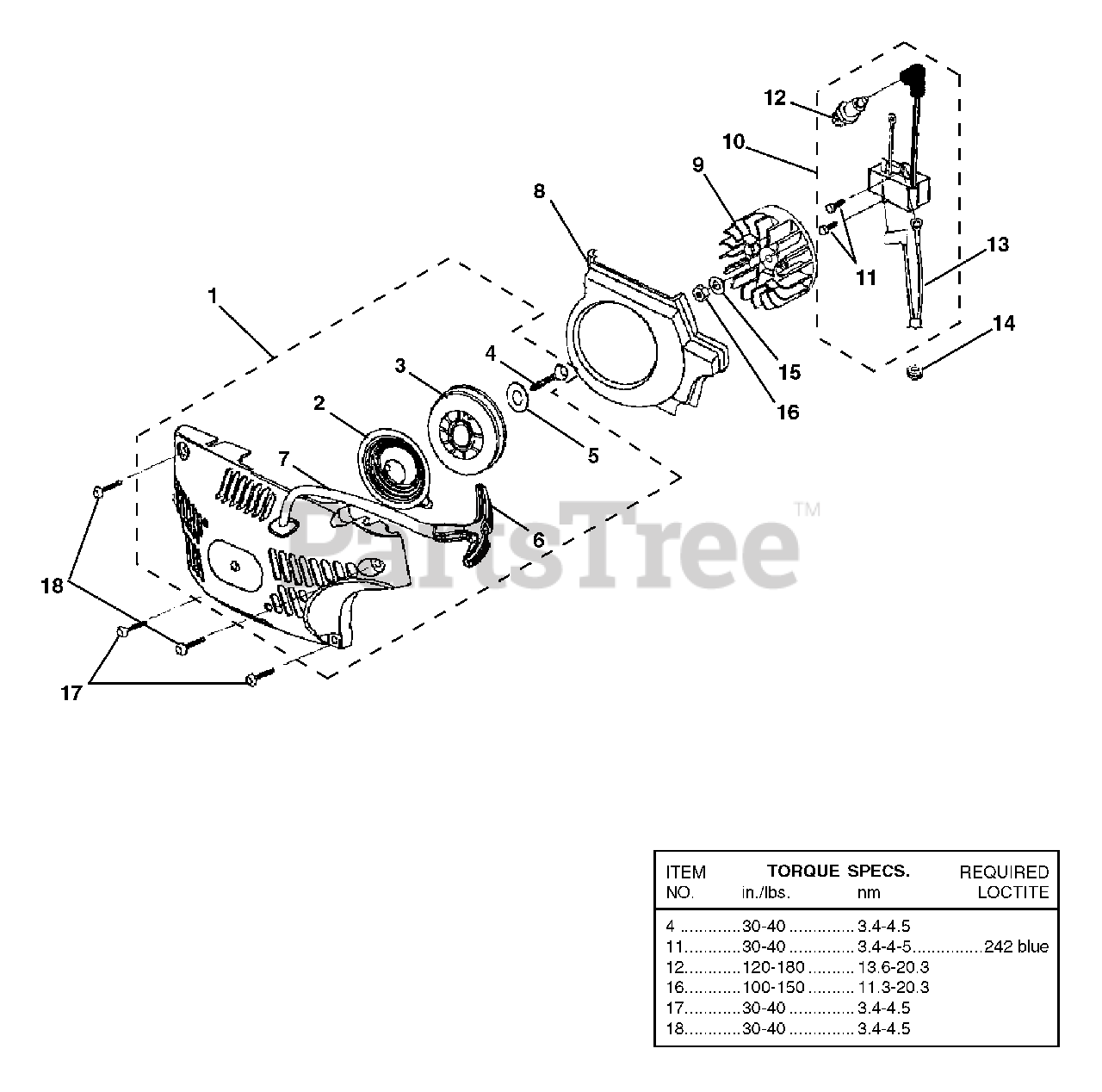

UT-10947-D - Homelite 16" Chainsaw, 33cc Starter - Ignition Parts Diagram

16" Chainsaw, 33cc

Starter - Ignition Parts Diagram

  • Title

1

Homelite 984881001

STARTER HOUSING ASSEMBLY
(Superseded to 300982011)

$

$

Not available

2

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

3

Homelite PS03117

STARTER PULLEY

$

$

Not available

4

Homelite 82621

SCREW, THREAD FORM, PLASTITE (10-14 X 5/8 in.)

$

$

Not available

5

Homelite 94062

WASHER RETAINING

$

$

Not available

6

Homelite PS06114

GRIP STARTER

$

$

Not available

7

Homelite 9789901

STARTER ROPE (46 in.)
(Superseded to 900849001)

$1.49

$

In Stock, only 4 left!

0

8

Homelite 06876

BAFFLE, FAN HOUSING

$3.99

$

Usually ships in 3-7 days

0

9

Homelite UP05850A

ROTOR & STARTER PAWL
(Superseded to 986154001)

$13.99

$

In Stock, only 1 left!

0

10

Homelite 984882001

IGNITION KIT (33 cc)
(Superseded to 300953003)

$

$

Not available

11

Homelite 82575

SCREW, THREAD FORM (8-32 x 5/8 in.)
(Superseded to 660639001)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

13

Homelite A07602A

IGNITION SWITCH HARNESS

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 07587

GROMMET, WIRE HARNESS (SPLIT) 1
(Superseded to 570227001)

$1.49

$

In Stock, only 1 left!

0

15

Homelite PS84065

WASHER, FLAT

$

$

Not available

16

Homelite 81229A

JAM NUT

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 82620

SCREW, TRUSS HD. PLASTITE (10-14 x 7/8 in.)

$1.49

$

In Stock, Qty 5

0

18

Homelite 82621

SCREW, TRUSS HD. PLASTITE (10-14 x 5/8 in.)

$

$

Not available
