UT-13144 - Green Machine Walk-Behind Trimmer

Walk-Behind Trimmer

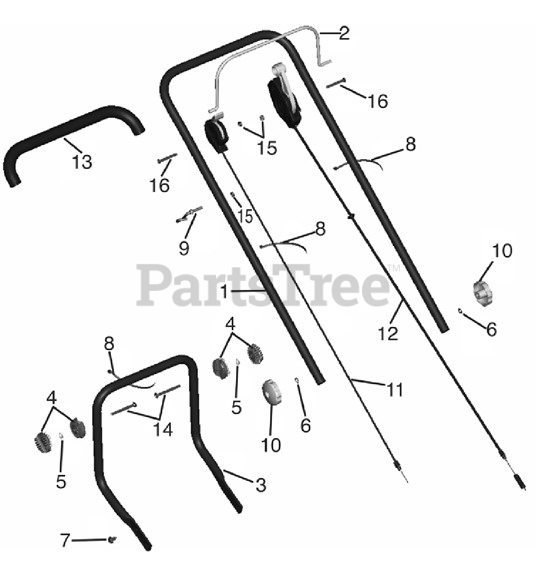

UT-13144 - Green Machine Walk-Behind Trimmer > Parts Diagrams (5) > Handle Assembly A

  • Title
A100541

1

Upper Handle

Part# A100541

OEM Warranty Repair Part for Homelite

Not available

A100542

2

Lever, Stop

Part# A100542

OEM Warranty Repair Part for Homelite

Not available

A100543

3

Lower Handle

Part# A100543

OEM Warranty Repair Part for Homelite

Not available

A100544

4

Pivot, Handle

Part# A100544

OEM Warranty Repair Part for Homelite

Not available

A100545

5

Washer, Spring

Part# A100545

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $0.97

A100546

6

Washer

Part# A100546

OEM Warranty Repair Part for Homelite

Not available

A100547

7

Screw

Part# A100547

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $0.97

A100548

8

Tie, Cable

Part# A100548

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $0.97

A100549

9

Guide, Rope

Part# A100549

OEM Warranty Repair Part for Homelite

Currently unavailable

A100550

10

Knob, Handle

Part# A100550

OEM Warranty Repair Part for Homelite

Not available

A100551

11

Control, Throttle

Part# A100551

OEM Warranty Repair Part for Homelite

Not available

A100552

12

Cable, Control Latching

Part# A100552

OEM Warranty Repair Part for Homelite

Not available

A100553

13

Tubing Foam

Part# A100553

OEM Warranty Repair Part for Homelite

Not available

A100554

14

Bolt, M8x85

Part# A100554

OEM Warranty Repair Part for Homelite

Not available

A100506

15

Nut, M6

Part# A100506

OEM Warranty Repair Part for Homelite

Not available

A100555

16

Bolt, M6x50

Part# A100555

OEM Warranty Repair Part for Homelite

Not available
