UT-13144 - Green Machine Walk-Behind Trimmer Handle Assembly B Parts Diagram

Walk-Behind Trimmer

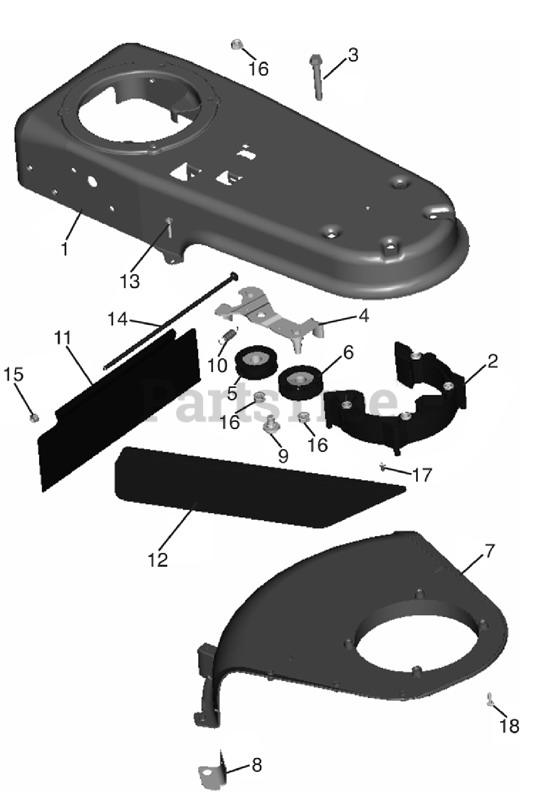

Handle Assembly B Parts Diagram

  • Title

1

Homelite A100561

Frame, Trimmer

$

$

Not available

2

Homelite A100562

Spacer Assembly, Jackshaft

$

$

Not available

3

Homelite A100563

Screw

$

$

Not available

4

Homelite A100564

Bracket, Idler Assembly

$10.99

$

Usually ships in 3-7 days

0

5

Homelite A100565

Pulley, Idler

$

$

Not available

6

Homelite A100566

"V" Pulley

$

$

Not available

7

Homelite A100567

Shield, Trimmer

$

$

Currently unavailable

8

Homelite A100568

Blade

$

$

Currently unavailable

9

Homelite A100569

Bolt

$

$

Not available

10

Homelite A100570

Spring, Extension

$

$

Not available

11

Homelite A100571

Shied, Trailing

$35.99

$

In Stock, only 1 left!

0

12

Homelite A100572

Flap, Debris

$

$

Not available

13

Homelite A100573

Screw

$

$

Not available

14

Homelite A100574

Bolt, Carriage, M6x283

$

$

Not available

15

Homelite A100506

Nut, M6

$

$

Not available

16

Homelite A100462

Nut, M10

$1.49

$

Usually ships in 3-7 days

0

17

Homelite A100575

Screw, ST4.8x12

$

$

Not available

18

Homelite A100576

Screw

$

$

Not available
