UT-13144 - Green Machine Walk-Behind Trimmer

Walk-Behind Trimmer

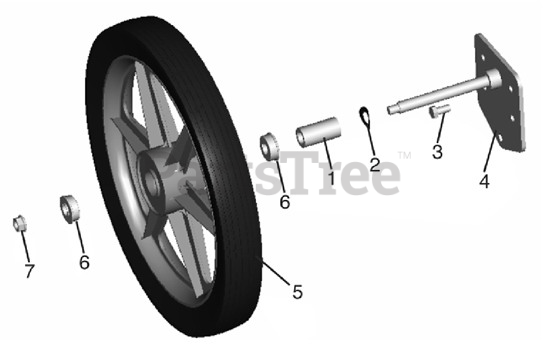

UT-13144 - Green Machine Walk-Behind Trimmer > Parts Diagrams (5) > Wheel Assembly

  • Title
A100556

1

Spacer

Part# A100556

OEM Warranty Repair Part for Homelite

Not available

A100557

2

Washer, Spring

Part# A100557

OEM Warranty Repair Part for Homelite

Not available

A100458

3

Bolt, M8x16

Part# A100458

OEM Warranty Repair Part for Homelite

Not available

A100558

4

Assembly, Axle & Bracket

Part# A100558

OEM Warranty Repair Part for Homelite

Not available

A100559

5

Wheel & Tire

Part# A100559

OEM Warranty Repair Part for Homelite

Not available

A100560

6

Bearing

Part# A100560

OEM Warranty Repair Part for Homelite

Not available

A100462

7

Nut, M10

Part# A100462

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $0.97
