UT-15518-D - Homelite Expand-It Edger Attachment Parts List Rev D Parts Diagram

Expand-It Edger Attachment

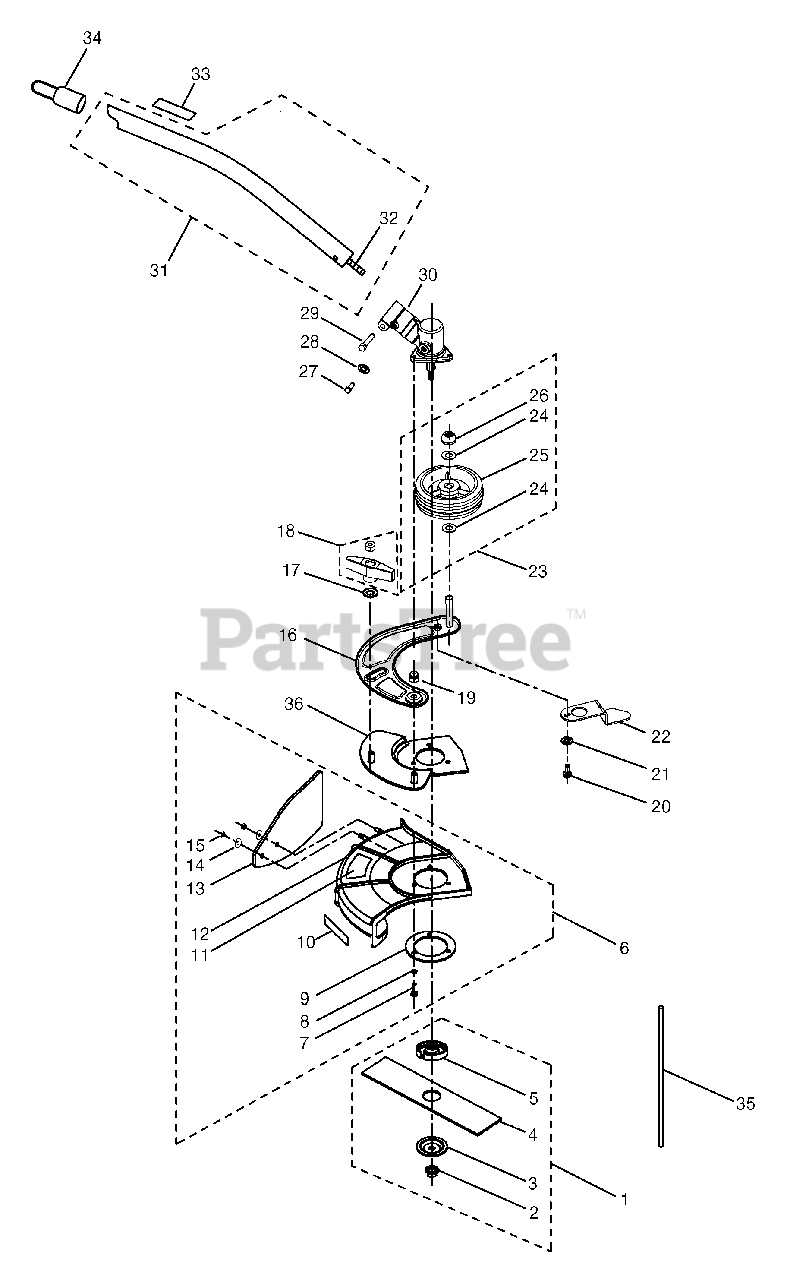

Parts List Rev D Parts Diagram

  • Title

1

Homelite UT15518D-01

BLADE ASSEMBLY
(Superseded to 099078001001)

$21.99

$

Usually ships in 3-7 days

0

2

Homelite UT15518D-02

LOCK NUT (M8)
(Superseded to 662450001)

$1.49

$

In Stock, only 4 left!

0

3

Homelite UT15518D-03

WASHER, CUPPED
(Superseded to 099078001003)

$

$

Not available

4

Homelite UT15518D-04

BLADE, EDGER
(Superseded to 638006005)

$

$

Not available

5

Homelite UT15522D-08

WASHER, FLANGE
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

6

Homelite UT15518D-05

BLADE GUARD ASSEMBLY

$26.99

$

Usually ships in 3-7 days

0

7

Homelite UT15518D-06

SCREW (10-24 X 5/8 in.)
(Superseded to 099078001007)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

8

Homelite UT15518D-07

WASHER, HELICAL LOCK #10
(Superseded to 099078001008)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite UT15518D-08

RING

$

$

Not available

10

Homelite UT15518D-09

DECAL, WARNING
(Superseded to 099078001010)

$

$

Not available

11

Homelite UT15518D-10

DECAL, EXPAND-IT
(Superseded to 099078001011)

$

$

Not available

12

Homelite UT15518D-11

BLADE GUARD

$

$

Not available

13

Homelite UT15518D-12

DRAG FLAP
(Superseded to 099078001013)

$

$

Not available

14

Homelite UT15518D-13

WASHER, FLAT (6mm)
(Superseded to 099078001014)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite UT15518D-14

NUT, HEX (M6)
(Superseded to 099078001015)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite UT15518D-17

SUPPORT ARM
(Superseded to 099078001018)

$

$

Not available

17

Homelite UT15518D-18

WASHER, FLAT (10mm)
(Superseded to 099078001019)

$

$

Not available

18

Homelite UT15518D-33

KNOB ASSEMBLY
(Superseded to 099078001020)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite UT15518D-21

NUT, HEX W/NYLON CAP (M8)
(Superseded to 099078001021)

$

$

Not available

20

Homelite UT15518D-22

SCREW, (M5 X 16mm, HEX)
(Superseded to 099078001022)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

21

Homelite UT15518D-23

WASHER, FLAT
(Superseded to 099078001023)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite UT15518D-24

CURB GUIDE
(Superseded to 099078001024)

$

$

Not available

23

Homelite UT15518D-25

WHEEL ASSEMBLY
(Superseded to 099078001025)

$

$

Not available

24

Homelite UT15518D-26

WASHER, FLAT (10mm)
(Superseded to 099078001026)

$1.49

$

In Stock, only 4 left!

0

25

Homelite UT15518D-27

EDGER WHEEL
(Superseded to 099078001027)

$

$

Not available

26

Homelite UT15518D-28

NUT, PUSHON (10mm)
(Superseded to 099078001028)

$1.49

$

In Stock, Qty 5

0

27

Homelite UT15522D-12

SCREW, (M5 X 15mm, HEX HD.)
(Superseded to 099078001030)

Note: May Be Purchased Locally

$

$

Not available

28

Homelite UT15522D-11

WASHER, FLAT

$

$

Not available

29

Homelite UT15522D-13

SCREW, (M6 X 30mm, HEX HD.)
(Superseded to 983381007)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

30

Homelite UT15522D-10

GEARHEAD ASSEMBLY W/SCREWS
(Superseded to 099078001029)

$73.99

$

Usually ships in 3-7 days

0

31

Homelite UT15518D-29

DRIVESHAFT ASSEMBLY
(Superseded to 099078001034)

$

$

Not available

32

Homelite UT15518D-30

FLEXIBLE SHAFT
(Superseded to 099078001035)

$

$

Not available

33

Homelite UT15519D-02

WARNING LABEL
(Superseded to 099078001038)

$

$

Not available

34

Homelite UT15519D-19

END CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

35

Homelite UT15518D-32

HOLDING PIN
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

36

Homelite UT15518D-16

PLATE AND STUD
(Superseded to 099078001017)

$

$

Not available

Homelite 983000223

OPERATOR'S MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable
