UT-15520 - Homelite Expand-It Pruner Attachment Parts List UT 15520 Parts Diagram

Expand-It Pruner Attachment

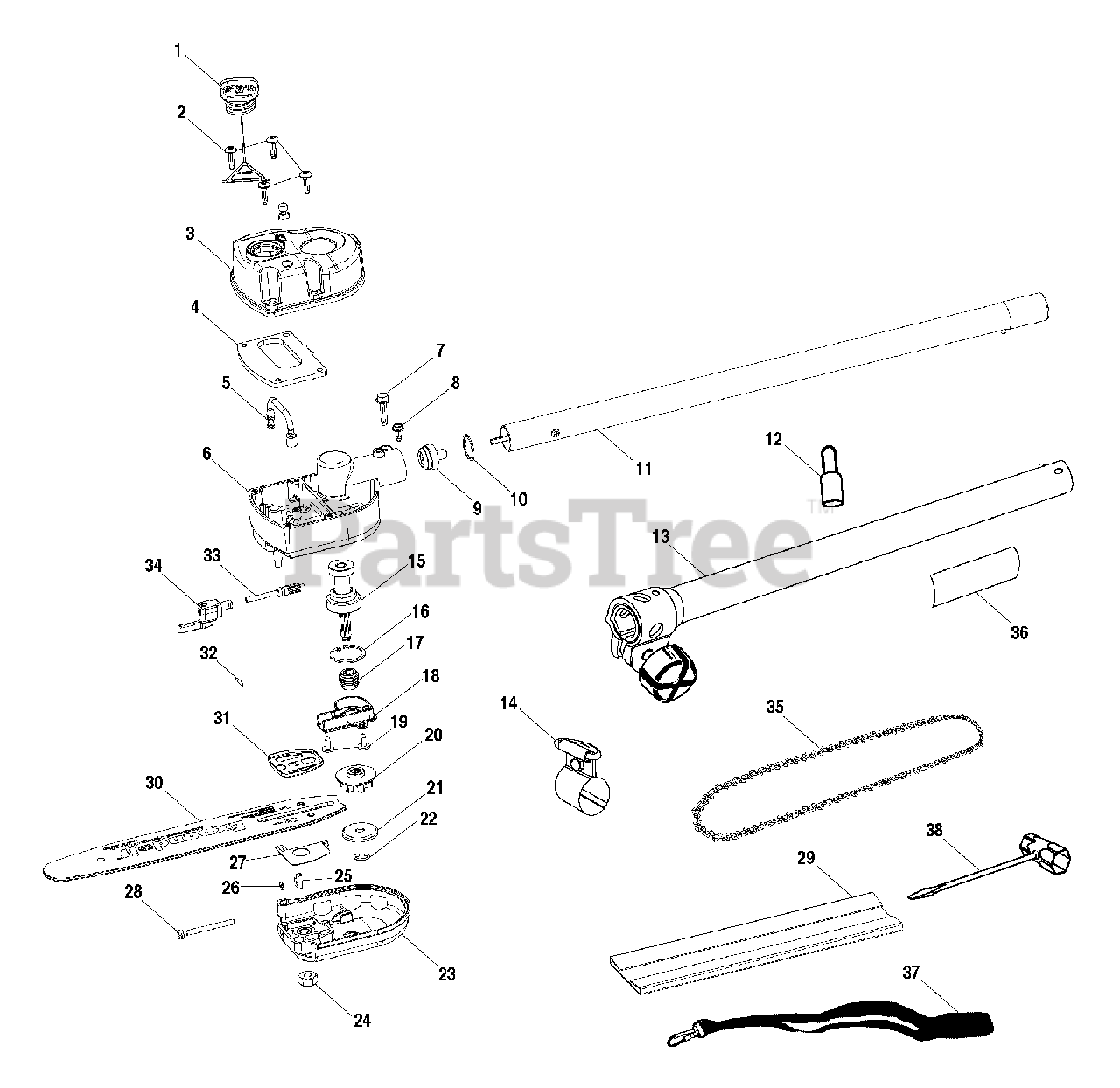

Parts List UT 15520 Parts Diagram

  • Title

1

Homelite A07591

OIL CAP
(Superseded to 090038001001)

$2.49

$

In Stock, only 4 left!

0

2

Homelite 82538

SCREW

$2.49

$

Usually ships in 3-7 days

0

3

Homelite PA01332

OIL TANK COVER ASSEMBLY

$

$

Not available

4

Homelite 983578001

OIL COVER GASKET
(Superseded to 985265001)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite PA01487

PICK UP TUBE ASSEMBLY

$

$

Not available

6

Homelite 983884001

GEAR HOUSING

$

$

Not available

7

Homelite PS05448

SCREW (1/4-20 X 1 in.)

$

$

Not available

8

Homelite PS05449

SCREW (10-24 X 1/2 in.)
(Superseded to 660911001)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 983887001

PINION ASSEMBLY

$

$

Not available

10

Homelite PS04873

RETAINING RING

$

$

Not available

11

Homelite PA01335B

LOWER DRIVE SHAFT ASSEMBLY
(Superseded to 308511001)

$

$

Not available

12

Homelite PS02155

HANGER CAP
(Superseded to 518019004)

$2.49

$

In Stock, Qty 6

0

13

Homelite PA01334B

INTERMEDIATE DRIVESHAFT ASSEMBLY
(Superseded to 308526001)

$

$

Not available

14

Homelite 07255

STRAP HANGER

$

$

Not available

15

Homelite 983886001

GEAR ASSEMBLY

$

$

Not available

16

Homelite PS04872

RETAINING RING

$

$

Not available

17

Homelite PS04540

WORM GEAR

$

$

Not available

18

Homelite PS04551

OIL PUMP HOUSING

$3.49

$

Usually ships in 3-7 days

0

19

Homelite PS01605

TRUSS HEAD SCREW

$

$

Not available

20

Homelite PS04556

SPROCKET

$

$

Not available

21

Homelite 04939A

CUPPED WASHER
(Superseded to 631060001)

$

$

Not available

22

Homelite 08981

E-RING

$5.99

$

In Stock, only 2 left!

0

23

Homelite PA01333

BAR CLAMP ASSEMBLY
(Superseded to 308521001)

$

$

Not available

24

Homelite 81196

HEX NUT (5/16-18)
(Superseded to 671076001)

$2.49

$

In Stock, Qty 5

0

25

Homelite 06842

GUIDE BAR ADJUSTMENT PIN
(Superseded to 631037001)

$2.49

$

In Stock, only 2 left!

0

26

Homelite 69599

RETAINING RING

$

$

Not available

27

Homelite PS04974

GUIDE BAR PLATE
(Superseded to 638281001)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 06844

GUIDE BAR ADJUSTMENT SCREW

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 983606001

SCABBARD
(Superseded to 518405001)

$3.49

$

Usually ships in 3-7 days

0

30

Homelite UP08687

GUIDE BAR
(Superseded to 983872001)

$54.99

$

In Stock, only 1 left!

0

31

Homelite PS04554

BAR PAD PLATE
(Superseded to 090038001028)

$2.99

$

Usually ships in 3-7 days

0

32

Homelite PS04552

OIL PUMP CAM PIN

$

$

Not available

33

Homelite PS04548

GEAR AND PLUNGER

$3.99

$

Usually ships in 3-7 days

0

34

Homelite 983888001

OIL PUMP SEAL

$

$

Not available

35

Homelite UP08688

CHAIN
(Superseded to 690583002)

$

$

Not available

36

Homelite 983608001

WARNING LABEL

$2.49

$

Usually ships in 3-7 days

0

37

Homelite 944701

HARNESS
(Superseded to 308487001)

$13.99

$

In Stock, only 1 left!

0

38

Homelite 09207

COMBINATION WRENCH

$14.99

$

Usually ships in 3-7 days

0

39

Homelite PSO5170

8 oz. BOTTLE OF OIL

$

$

Currently unavailable

Homelite PSO4565

OPERATOR'S MANUAL

$

$

Currently unavailable

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable
