UT-15522-D - Homelite Expand-It Trimmer Attachment Parts List Rev D Parts Diagram

Expand-It Trimmer Attachment

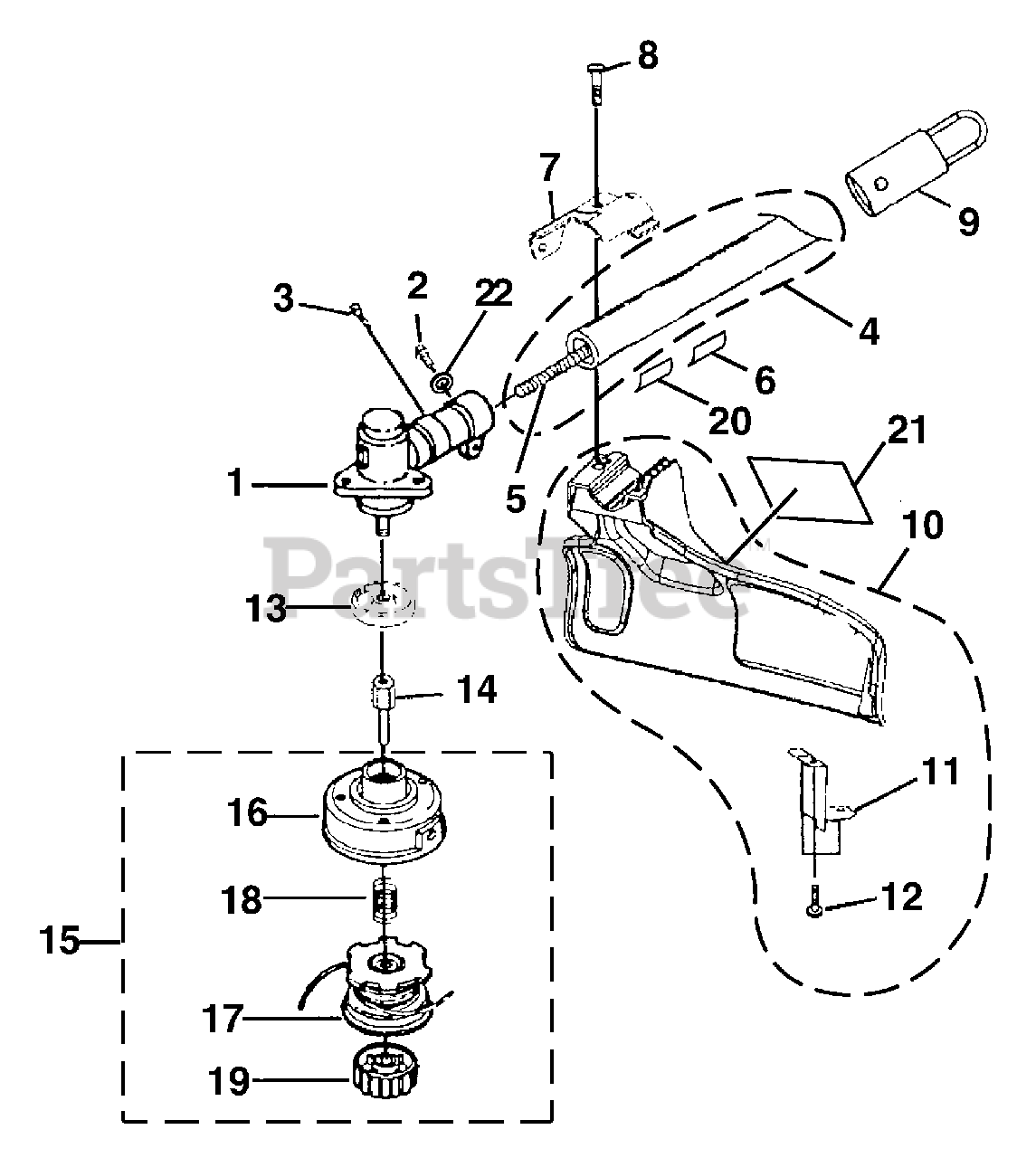

Parts List Rev D Parts Diagram

  • Title

1

Homelite UT15522D-10

GEAR HEAD ASSEMBLY WITH SCREWS
(Superseded to 099078001029)

$73.99

$

Usually ships in 3-7 days

0

2

Homelite UT15519D-12

SCREW (M5 x 15 mm HEX HD.)

$

$

Not available

3

Homelite UT15522D-13

CAP SCREW (M6 x 30 mm)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite UT15522D-20

DRIVE SHAFT HOUSING ASSEMBLY
(Superseded to 985570003)

$

$

Not available

5

Homelite UT15518D-30

FLEXIBLE SHAFT ASSEMBLY
(Superseded to 099078001035)

$

$

Not available

6

Homelite UT15522D-22

WARNING DECAL

$1.49

$

Usually ships in 3-7 days

0

7

Homelite UT15522D-14

GRASS SHIELD CLAMP
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

8

Homelite UT15522D-15

SCREW (M6 x 30 mm)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite UT15519D-19

HANGER CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

10

Homelite UT15522D-16

GRASS SHIELD ASSEMBLY W/SCREWS

$

$

Not available

11

Homelite UT15522D-18

CUT-OFF BLADE
(Superseded to 099068001013)

$

$

Not available

12

Homelite UT15522D-17

SCREW (M4.2 x 12 mm)
(Superseded to 099068001012)

$

$

Not available

13

Homelite UT15522D-08

FLANGE WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

14

Homelite UT15522D-07

STRING HEAD ADAPTER
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

15

Homelite UT15522D-02

STRING HEAD ASSEMBLY

$

$

Not available

16

Homelite UT15522D-06

HOUSING W/EYELET
(Superseded to 099068001005)

$

$

Not available

17

Homelite UT15522D-04

SPOOL W/STRING

$

$

Not available

18

Homelite UT15522D-05

COMPRESSION SPRING
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

19

Homelite UT15522D-03

SPOOL RETAINER
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite UT15522D-24

WARNING LABEL
(Superseded to 099068001019)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite UT15522D-23

LOGO PLATE
(Superseded to 099068001021)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite UT15522D-11

WASHER

$

$

Not available

Homelite 983000222R

OPERATOR'S MANUAL

$

$

Currently unavailable
