UT-15522-E - Homelite Expand-It Trimmer Attachment Trimmer Parts Diagram

Expand-It Trimmer Attachment

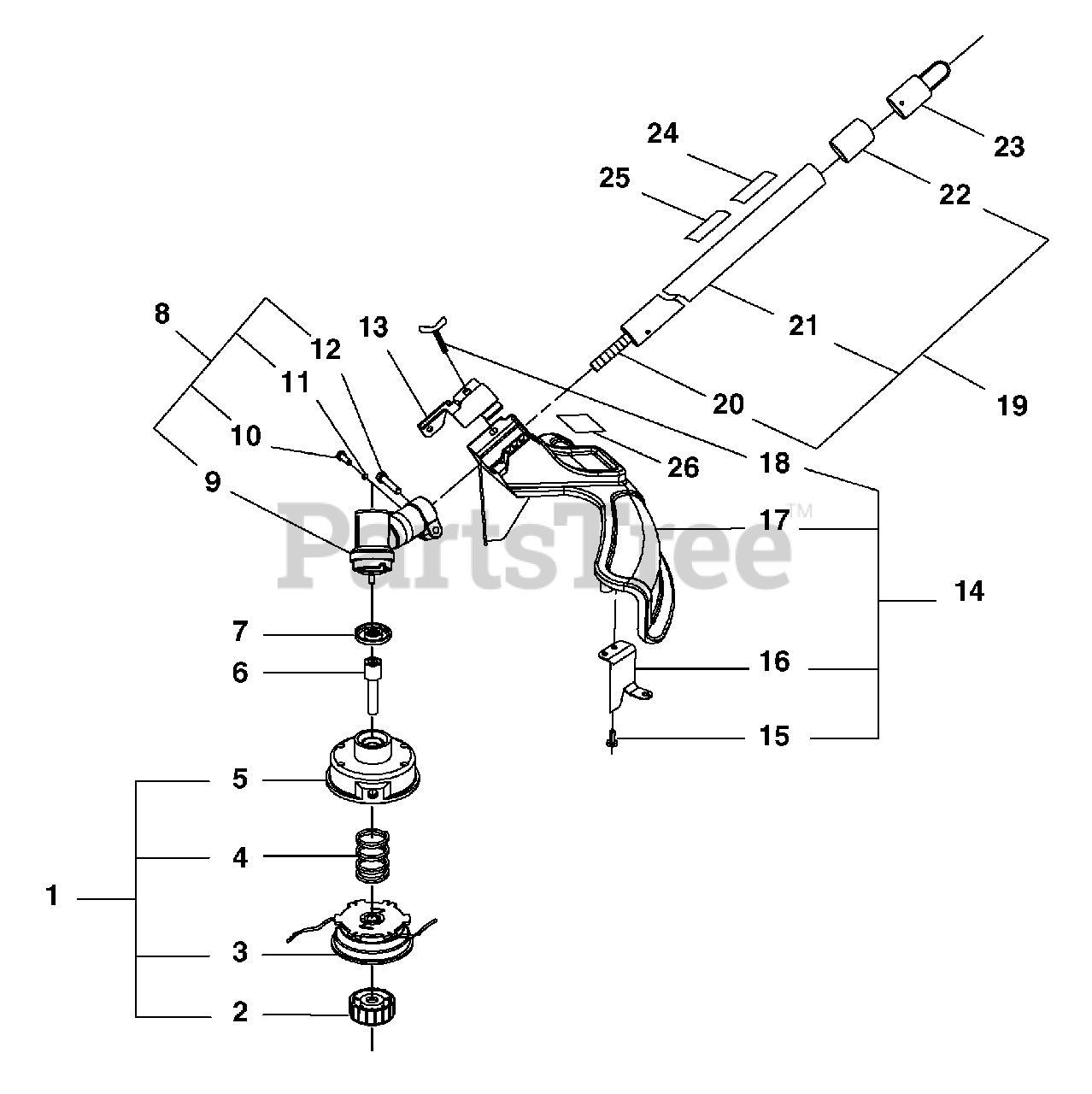

Trimmer Parts Diagram

  • Title

1

Homelite 099068001001

STRINGHEAD ASSEMBLY
(Superseded to 000998251)

Note: (Includes Key Nos.2-5)

$

$

Not available

2

Homelite 099068001002

RETAINER-SPOOL ASSEMBY (L.H.THREAD)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 099068001003

SPOOL & STRING ASSEMBLY
(Superseded to PA00778A)

Note: (0.08in.WHITE STRING)

$

$

Not available

4

Homelite 099068001004

SPRING-COMPRESSION
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 099068001005

HOUSING & EYELET ASSEMBLY

$

$

Not available

6

Homelite 099068001006

ADAPTER-STRINGHEAD
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

7

Homelite 099068001007

WASHER-FLANGED
(Superseded to 984931001)

$

$

Not available

8

Homelite 099068001008

GEARHEAD & SCREW ASSEMBLY

Note: (Includes Key Nos.9-12)

$

$

Not available

9

Homelite 099068001009

GEAR HEAD ASSEMBLY
(Superseded to 984244001)

$28.99

$

Usually ships in 3-7 days

0

10

Homelite 099078001030

HEXAGON HEAD SCREW (M5 X 12 mm)

$

$

Not available

11

Homelite 099078001031

LOCK WASHER (5 mm)

$

$

Not available

12

Homelite 099078001032

CAP HEAD SCREW (M6 X 30 mm)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 099068001010

CLAMP FOR GRASS SHIELD
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

14

Homelite 099068001011

BLADE & SHIELD ASSEMBLY

Note: (Includes Key Nos.15-18)

$

$

Not available

15

Homelite 099068001012

PAN HEAD SCREW (ST4.2 X 12 mm)

$

$

Not available

16

Homelite 099068001013

BLADE-CUT OFF

$

$

Not available

17

Homelite 099068001014

GRASS SHIELD

$

$

Not available

18

Homelite 099068001015

WINGED HEAD SCREW (M6 X 30 mm)

$

$

Not available

19

Homelite 099068001016

BOOM ASSEMBLY

Note: (Includes Key Nos. 20-22)

$29.99

$

Usually ships in 3-7 days

0

20

Homelite 099068001017

SHAFT-FLEXIBLE

$

$

Not available

21

Homelite 099068001018

DRIVESHAFT HOUSING ASSEMBLY

$

$

Not available

22

Homelite 099078001037

DUSTPROOF COVER

$

$

Not available

23

Homelite 099078001039

HANGER
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

24

Homelite 099068001019

BRUSH CUTTER KIT WARNING LABEL

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 099068001020

UL DECAL WARNING LABEL

$

$

Not available

26

Homelite 099068001021

BRAND LABEL

$1.49

$

Usually ships in 3-7 days

0

Homelite 983000499

OPERATOR'S MANUAL (099068001022) 9830004
(Superseded to 983000911)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:00)

$

$

Currently unavailable
