UT-15550 - Homelite Expand-It Tiller Attachment Tiller Parts Diagram

Expand-It Tiller Attachment

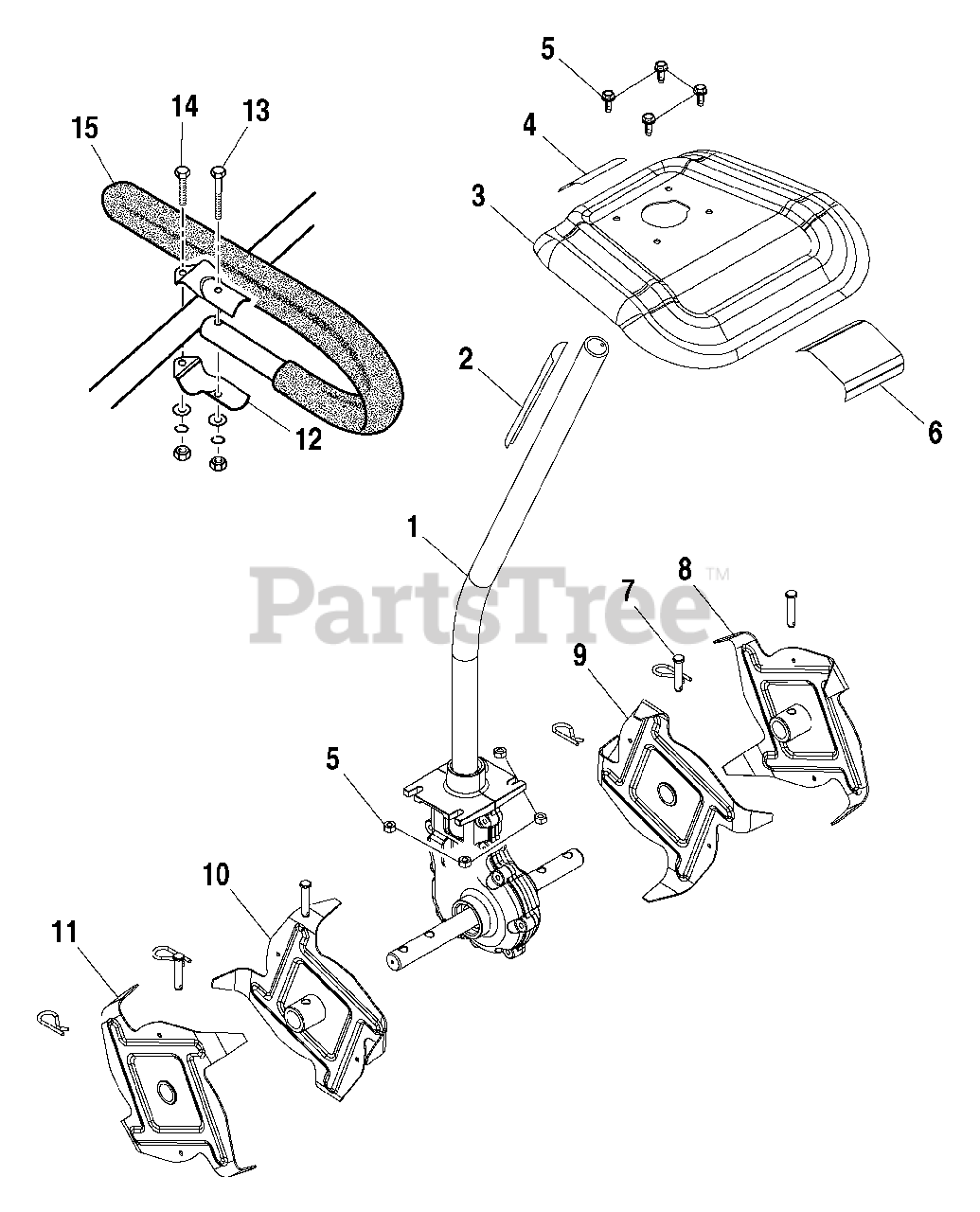

Tiller Parts Diagram

  • Title

1

Homelite UT15550A-31

GEAR CASE AND BOOM ASSEMBLY

$

$

Not available

2

Homelite UT15550A-03

WARNING LOGO

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 984010001

TILLER SHIELD

$

$

Not available

4

Homelite UT15550A-32

EXPAND-IT TILLER DECAL

$1.49

$

Usually ships in 3-7 days

0

5

Homelite UT15550A-33

SCREW AND LOCK NUT

$

$

Not available

6

Homelite UT15550A-34

WARNING LOGO

$

$

Not available

7

Homelite 984507001

CLEVIS AND HINGE PIN

$

$

Not available

8

Homelite 983368001

TINE D ASSEMBLY

$

$

Not available

9

Homelite 983369001

TINE C ASSEMBLY

$

$

Not available

10

Homelite 983371001

TINE B ASSEMBLY

$

$

Not available

11

Homelite 983370001

TINE A ASSEMBLY

$

$

Not available

12

Homelite UT15550A-37

HANDLE BAR CLAMP

$

$

Not available

13

Homelite UT15550A-38

BOLT ASSEMBLY (M6 X 40)

$

$

Not available

14

Homelite UT15550A-39

BOLT ASSEMBLY (M6 X 25)

$

$

Not available

15

Homelite UT15550A-40

J HANDLE AND GRIP

$

$

Not available

Homelite 983000220

OPERATOR'S MANUAL

$

$

Not available

Homelite NLA

REPAIR SHEET

$

$

Currently unavailable
