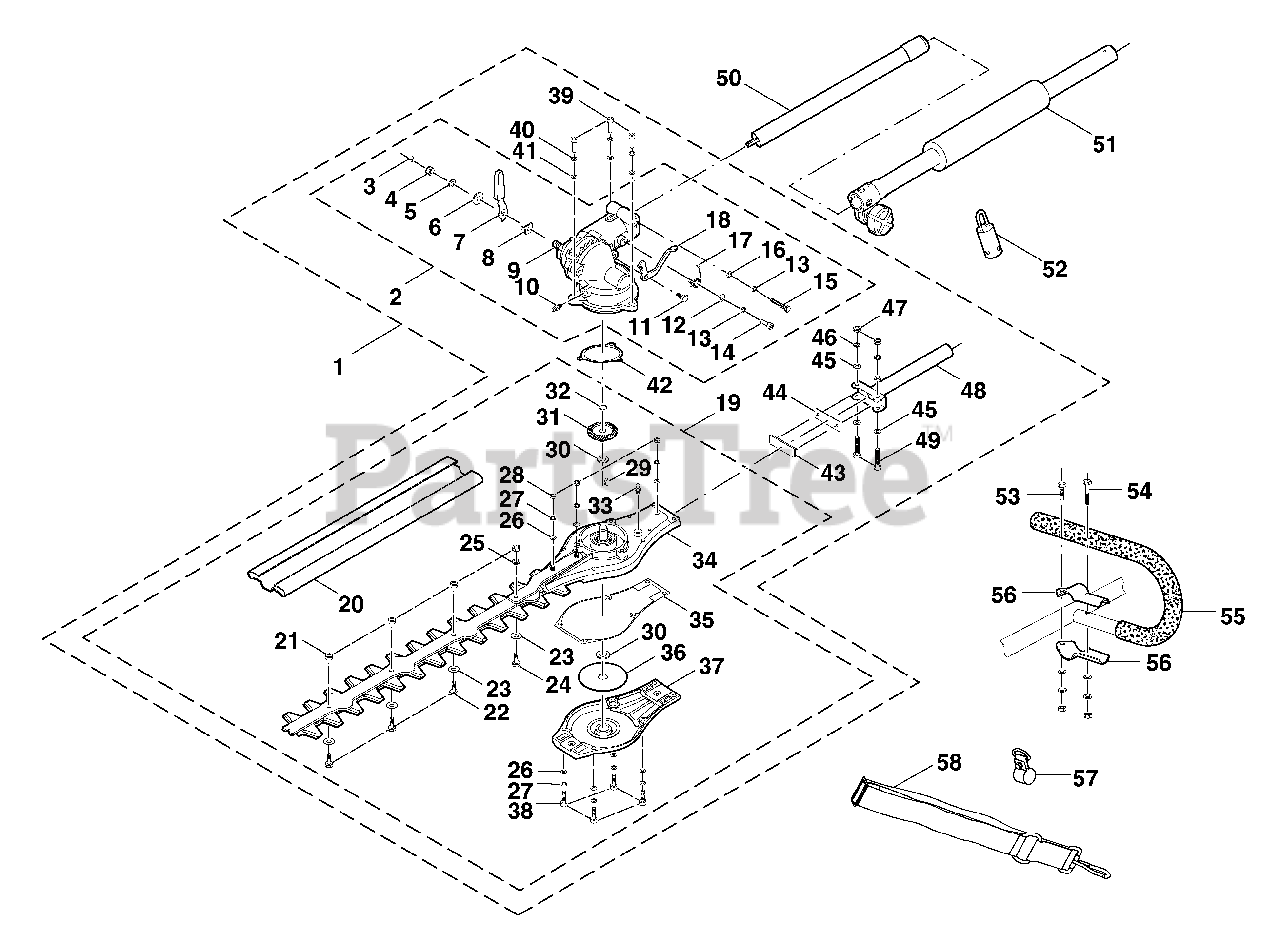

UT-15701-A - Homelite Expand-It Hedge Trimmer Attachment Articulating Hedge Trimmer Parts Diagram

Expand-It Hedge Trimmer Attachment

Articulating Hedge Trimmer Parts Diagram

  • Title

1

Homelite 099074001001

GEARBOX AND BLADE ASSEMBLY

Note: (INCLUDE KEY NOS. 2, 19, 39-49)

$

$

Currently unavailable

2

Homelite 099074001002

UPPER COVER ASSEMBLY

Note: (INCLUDE KEY NOS. 3-18)

$

$

Currently unavailable

3

Homelite 099074001003

COTTER PIN

$

$

Currently unavailable

4

Homelite 099074001004

HEX NOTCH NUT (M6)

$

$

Currently unavailable

5

Homelite 099074001005

SPRING WASHER(ø6)

$

$

Currently unavailable

6

Homelite 099074001006

FLAT WASHER (ø6)

$

$

Currently unavailable

7

Homelite 099074001007

CLAMPING LEVER

$

$

Currently unavailable

8

Homelite 099074001008

LOCKING PLATE

$

$

Currently unavailable

9

Homelite 099074001009

ARTICULATING GEARBOX ASSEMBLY

$

$

Currently unavailable

10

Homelite 099074001010

OIL CUP

$

$

Currently unavailable

11

Homelite 099074001011

LOCKING SCREW (M5)

$

$

Currently unavailable

12

Homelite 099074001012

FLAT WASHER

$

$

Currently unavailable

13

Homelite 099074001013

SPRING WASHER (ø5)

$

$

Currently unavailable

14

Homelite 099074001014

INNER HEX COLUMN HEAD SCREW (M5 X 14 mm)

$

$

Currently unavailable

15

Homelite 099074001015

HEX HEAD BOLT (M5 X 30 mm)

$

$

Currently unavailable

16

Homelite 099074001016

FLAT WASHER(ø5)

$

$

Currently unavailable

17

Homelite 099074001017

RATCHET TORSIONAL SPRING

$

$

Currently unavailable

18

Homelite 099074001018

DETENT

$

$

Currently unavailable

19

Homelite 099074001019

DRIVEN GEAR HOUSING AND BLADE ASSEMBLY W/ BACK COVER

Note: (INCLUDE KEY NOS. 20-38)

$

$

Currently unavailable

20

Homelite 099074001020

BLADE GUARD

$

$

Currently unavailable

21

Homelite 099074001021

LOCKING NUT (M6)

$

$

Currently unavailable

22

Homelite 099074001022

HEX HEAD BOLT (M6 X 16 mm)

$

$

Currently unavailable

23

Homelite 099074001023

FLAT WASHER (ø6)

$

$

Currently unavailable

24

Homelite 099074001024

HEX HEAD BOLT (M6 X 22 mm)

$

$

Currently unavailable

25

Homelite 099074001005

SPRING WASHER (ø6)

$

$

Currently unavailable

26

Homelite 099074001016

FLAT WASHER (ø5)

$

$

Currently unavailable

27

Homelite 099074001013

SPRING WASHER (ø5)

$

$

Currently unavailable

28

Homelite 099074001025

HEX NUT (M5)

$

$

Currently unavailable

29

Homelite 099074001026

HALF-ROUND KEY

$

$

Currently unavailable

30

Homelite 099074001027

ADJUST SPACER

$

$

Currently unavailable

31

Homelite 099074001028

DRIVEN BEVEL GEAR

$

$

Currently unavailable

32

Homelite 099074001029

C-RING (ø10)

$

$

Currently unavailable

33

Homelite 099074001010

OIL CUP

$

$

Currently unavailable

34

Homelite 099074001030

DRIVEN GEAR HOUSING AND BLADE ASSEMBLY W/O BACK COVER

$

$

Currently unavailable

35

Homelite 099074001031

FELT

$

$

Currently unavailable

36

Homelite 099074001032

CIRCLE GUARD PLATE

$

$

Currently unavailable

37

Homelite 099074001033

BACK COVER ASSEMBLY

$

$

Currently unavailable

38

Homelite 099074001034

INNER HEX COLUMN HEAD SCREW (M5 X 20 mm)

$

$

Currently unavailable

39

Homelite 099074001035

INNER HEX COLUMN HEAD SCREW (M5 X 16 mm)

$

$

Currently unavailable

40

Homelite 099074001013

SPRING WASHER (ø5)

$

$

Currently unavailable

41

Homelite 099074001016

FLAT WASHER (ø5)

$

$

Currently unavailable

42

Homelite 099074001036

FELT

$

$

Currently unavailable

43

Homelite 099074001037

RUBBER SEAL

$

$

Currently unavailable

44

Homelite 099074001038

METAL PLATE

$

$

Currently unavailable

45

Homelite 099074001016

FLAT WASHER (ø5)

$

$

Currently unavailable

46

Homelite 099074001013

SPRING WASHER (ø5)

$

$

Currently unavailable

47

Homelite 099074001025

HEX NUT (M5)

$

$

Currently unavailable

48

Homelite 099074001039

LOWER HANDLE ASSEMBLY

$

$

Currently unavailable

49

Homelite 099074001015

HEX HEAD BOLT (M5 X 30 mm)

$

$

Currently unavailable

50

Homelite 099074001040

LOWER BOOM ASSEMBLY

$

$

Currently unavailable

51

Homelite 099074001041

INTERMEDIAL BOOM ASSEMBLY

$

$

Currently unavailable

52

Homelite 099078001039

HANGER
(Superseded to 518019004)

$1.49

$

In Stock, Qty 5

0

53

Homelite 099075001009

BOLT ASSEMBLY (SHORT)

$

$

Not available

54

Homelite 099075001008

BOLT ASSEMBLY (LONG)

$

$

Not available

55

Homelite 099075001010

J-HANDLE AND GRIP
(Superseded to A08130)

$15.99

$

Usually ships in 3-7 days

0

56

Homelite 099075001007

HANDLE BAR CLAMP

$1.49

$

Usually ships in 3-7 days

0

57

Homelite 099075001011

STRAP HANGER
(Superseded to 07255)

$

$

Not available

58

Homelite 099075001012

SHOULDER STRAP ASSEMBLY
(Superseded to 944701)

$6.99

$

Usually ships in 3-7 days

0

Homelite 983000621

Operator's MANUAL 099074001042)

$

$

Currently unavailable

Homelite NLA

REPAIR SHEET (REV: 00)

$

$

Currently unavailable
