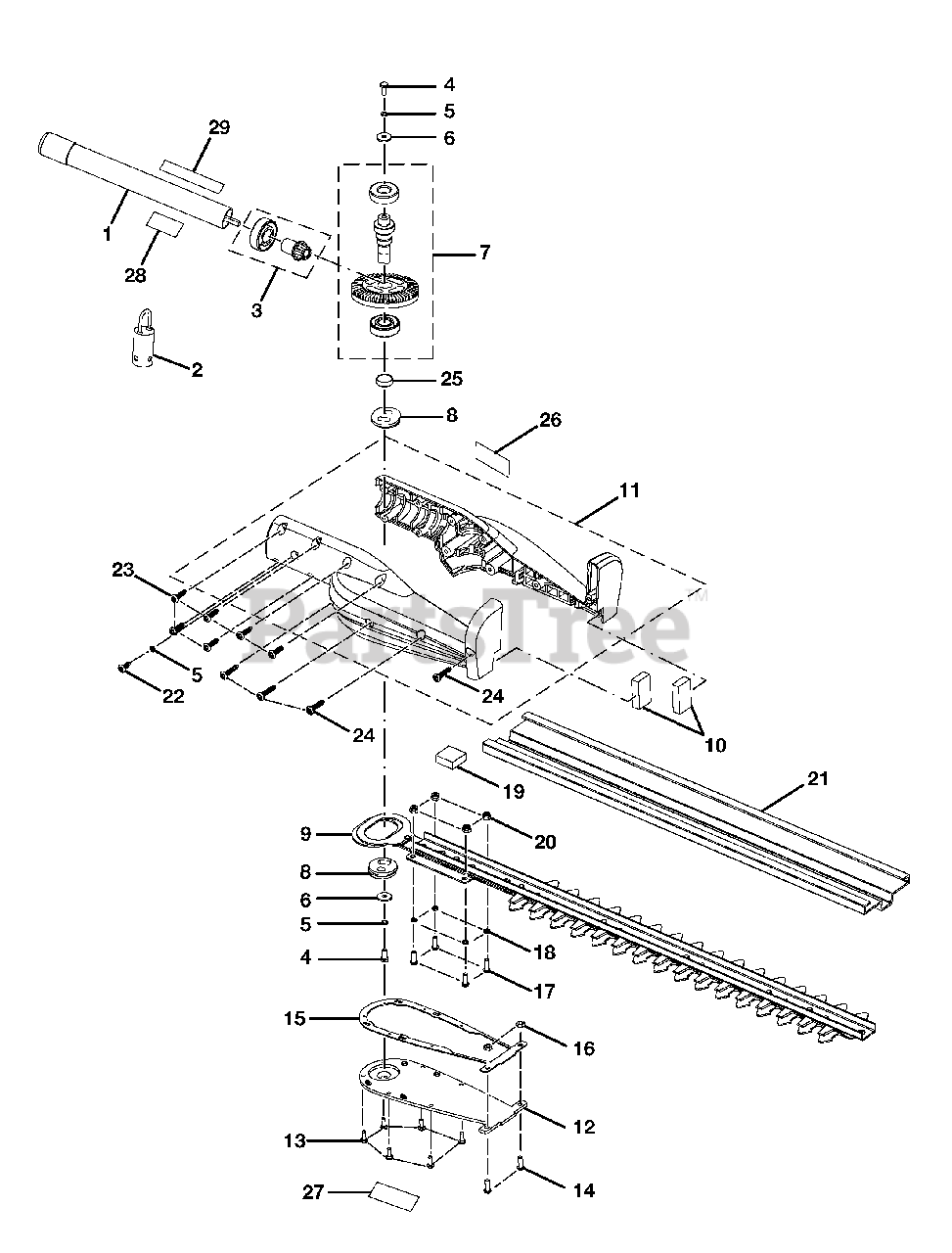

UT-15703 - Homelite Expand-It Hedge Trimmer Attachment Hedge Trimmer Parts Diagram

Expand-It Hedge Trimmer Attachment

Hedge Trimmer Parts Diagram

  • Title

1

Homelite 099069001001

LOWER DRIVE SHAFT ASSEMBLY

$

$

Not available

2

Homelite 099078001039

HANGER CAP
(Superseded to 518019004)

$2.49

$

In Stock, only 3 left!

0

3

Homelite 099069002001

PINION ASSEMBLY

$

$

Not available

4

Homelite 099069001004

SCREW (M5 X 10 mm)

Note: May Be Purchased Locally

$

$

Not available

5

Homelite 099069001005

SPRING WASHER

Note: May Be Purchased Locally

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 099069001006

FLAT WASHER

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 099069002002

OUTPUT SHAFT ASSEMBLY

$

$

Not available

8

Homelite 099069001012

CAM

$15.99

$

Usually ships in 3-7 days

0

9

Homelite 099069001013

BLADEASSEMBLY

$

$

Not available

10

Homelite 099069001014

FELT

$

$

Not available

11

Homelite 099069002005

HOUSINGASSEMBLY

$

$

Not available

12

Homelite 099069001016

HOUSING BOTTOM PLATE

$

$

Not available

13

Homelite 099069001017

SCREW (M3.5 X 8 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 099069001018

SCREW (M4 X 12 mm)

Note: May Be Purchased Locally

$

$

Not available

15

Homelite 099069001019

SEAL

$

$

Not available

16

Homelite 099069001020

NUT (M4)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 099069001021

SCREW (M4 X 16 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 099069001022

SPRING WASHER

Note: May Be Purchased Locally

$

$

Not available

19

Homelite 099069001023

FELT

$

$

Not available

20

Homelite 099069001024

NUT (M4)

Note: May Be Purchased Locally

$

$

Not available

21

Homelite 099069001025

BLADE GUARD (SCABBARD)

$9.49

$

Usually ships in 3-7 days

0

22

Homelite 099069001028

SCREW (M4.8 X 7 mm)

Note: May Be Purchased Locally

$

$

Not available

23

Homelite 099069001029

SCREW (M4.8 X 15 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 099069001027

SCREW (M4.8 X 26 mm)

Note: May Be Purchased Locally

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 099069002012

CAM WASHER

$

$

Not available

26

Homelite 099069002011

EXPAND-IT LOGO LABEL

$

$

Not available

27

Homelite 099069002010

HOT SURFACE LABEL

$

$

Not available

28

Homelite 099069002009

DATA LABEL

$

$

Not available

29

Homelite 099069002008

WARNING LABEL

$

$

Not available

Homelite 983000896

OPERATOR'S MANUAL (099069002006)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:00)

$

$

Currently unavailable
