UT-20024-A - Homelite String Trimmer Figure B Parts Diagram

String Trimmer

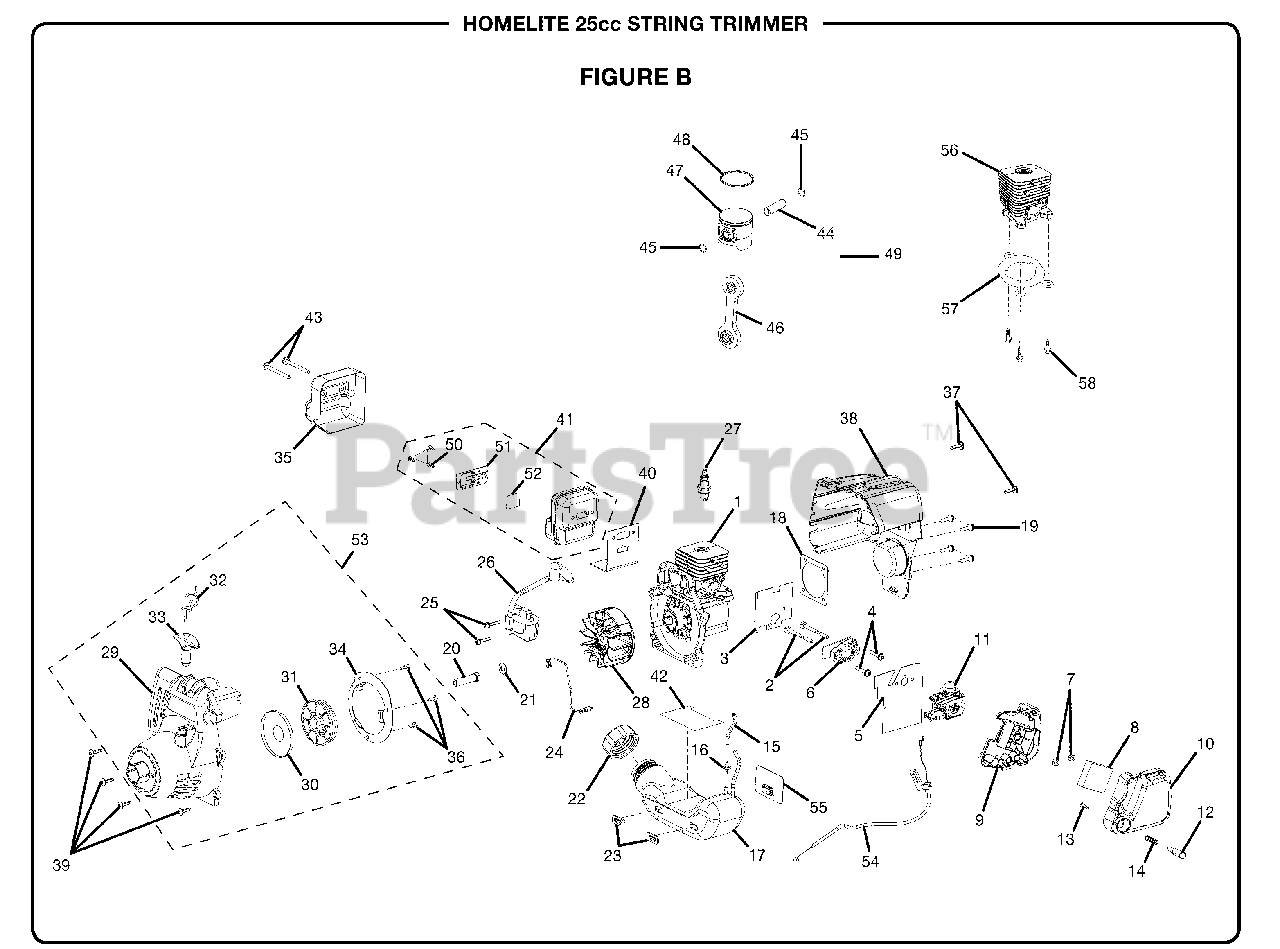

Figure B Parts Diagram

  • Title

1

Homelite 985891001

SHORT BLOCK ASSEMBLY
(Superseded to 984773001)

$

$

Not available

2

Homelite 04474

CARBURETOR BOLTS

$

$

Not available

3

Homelite 984762001

INTAKE GASKET

$1.49

$

In Stock, only 4 left!

0

4

Homelite 093221

SCREW (10-24 X 1-1/16 IN. PAN HD.)
(Superseded to 660662001)

Note: Purchase locally

$

$

Not available

5

Homelite 9074001

CARBURETOR GASKET

$

$

Not available

6

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

7

Homelite 81208

LOCK NUT (10-24)

Note: Purchase locally

$

$

Not available

8

Homelite 98760

AIR FILTER

$1.49

$

In Stock, Qty 7

0

9

Homelite PS02113

AIR FILTER BOX
(Superseded to 518094001)

$

$

Not available

10

Homelite PS02156

AIR BOX COVER
(Superseded to 518096002)

$

$

Not available

11

Homelite 985624001

CARBURETOR ASSEMBLY
(Superseded to 308054003)

$

$

Not available

12

Homelite 06618A

BUTTON SWITCH

$

$

Not available

13

Homelite 82513

SCREW, (6-19 X 1/2 IN. T.F.)

$1.49

$

In Stock, Qty 5

0

14

Homelite 95020A

COMPRESSION SPRING

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 0143908

RUBBER TUBING (2 IN.)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 985304001

INLINE FUEL FITTING

$1.49

$

In Stock, Qty 17

0

17

Homelite PA01624

FUEL TANK
(Superseded to 308181004)

Note: INC. KEY NO. 22

$

$

Not available

18

Homelite 06443A

CRANK CASE COVER GASKET
(Superseded to 900954001)

$

$

Not available

19

Homelite 984812001

SCREW (10-24 X 3/4 IN. PAN HD. TORX W/LW)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 98795A

DRIVE CONNECTOR

$

$

Not available

21

Homelite PS84065

FLAT WASHER

$

$

Not available

22

Homelite A09116

FUEL CAP ASSEMBLY
(Superseded to 300758006)

$

$

Not available

23

Homelite 98792

BUMPER

$1.49

$

In Stock, only 3 left!

0

24

Homelite A07238

LEAD W/TERMINALS
(Superseded to 290218001)

$

$

Not available

25

Homelite 82540

SCREW (8-32 X 1 IN. THREAD FORMING)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 4306401

IGNITION MODULE
(Superseded to 850080001)

$18.99

$

Usually ships in 3-7 days

0

27

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

28

Homelite 986153001

ROTOR AND PAWL ASSEMBLY
(Superseded to 300952002)

$13.99

$

Usually ships in 3-7 days

0

29

Homelite 3075303

STARTER HOUSING ASSEMBLY
(Superseded to PA00673)

$15.99

$

Usually ships in 3-7 days

0

30

Homelite A98773A

SPRING AND CONTAINER
(Superseded to 638033001)

$3.49

$

In Stock, only 1 left!

0

31

Homelite 98770A

STARTER PULLEY

$1.99

$

In Stock, only 4 left!

0

32

Homelite 9789902

STARTER ROPE
(Superseded to 900849002)

$1.49

$

In Stock, only 4 left!

0

33

Homelite PS06114

STARTER GRIP

$

$

Not available

34

Homelite PS00326

BAFFLE

$1.49

$

In Stock, only 1 left!

0

35

Homelite 984743001

HEAT SHIELD

$

$

Not available

36

Homelite 82543

SCREW (8-16 X 1/2 IN. THREAD FORMING).

Note: Purchase locally

$

$

Not available

37

Homelite 82563

SCREW (10-14 X 3/4 IN.THREAD FORMING)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

38

Homelite 984740001

REAR HOUSING
(Superseded to 518106001)

$7.99

$

Usually ships in 3-7 days

0

39

Homelite 82538

SCREW (10-24 X 3/4 IN.TRUSS HD.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 984760001

MUFFLER GASKET
(Superseded to 900994006)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 985869001

CATALYTIC MUFFLER ASSEMBLY

Note: INCL. KEY NO. 50 THRU 52

$

$

Not available

42

Homelite 900999002

GASKET

$1.49

$

In Stock, only 2 left!

0

43

Homelite 88083

SCREW (10-24 X 2-3/16 IN. TORX HD.)
(Superseded to PS03999)

Note: Purchase locally

$

$

Not available

44

Homelite 00238A

PIN, PISTON

$

$

Not available

45

Homelite 6969102

CLIP RING

$

$

Not available

46

Homelite PA00190

CONNECTING ROD ASSEMBLY

$

$

Not available

47

Homelite 984228001

PISTON, 25CC
(Superseded to 308156002)

$

$

Not available

48

Homelite PS04468

PISTON RING
(Superseded to 678001003)

$2.99

$

In Stock, only 1 left!

0

49

Homelite 3081102

PISTON ASSEMBLY

Note: INCLUDES KEY NO. 44-48

$

$

Not available

50

Homelite 984759001

SCREW (6-20 X 1/4 IN. PAN HD.)

Note: Purchase locally

$

$

Not available

51

Homelite 985596001

OUTLET TUBE

$

$

Not available

52

Homelite 984753001

SCREEN

$1.99

$

In Stock, only 1 left!

0

53

Homelite 985543001

COMPLETE STARTER ASSEMBLY
(Superseded to 300753005)

$

$

Not available

54

Homelite 0883202

THROTTLE CABLE W/HANGER
(Superseded to 308055002)

$1.99

$

In Stock, Qty 5

0

55

Homelite 985767001

BUMPER
(Superseded to 570549001)

$1.49

$

In Stock, only 1 left!

0

56

Homelite 6457005

CYLINDER

$

$

Not available

57

Homelite 985259001

CYLINDER GASKET
(Superseded to 900953001)

$

$

Not available

58

Homelite PS02807

SCREW (10-24 X .66 IN TORX PAN HD.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0
