UT-20042-A - Homelite EZ Reach String Trimmer, 25cc String Trimmer- Figure C Parts Diagram

EZ Reach String Trimmer, 25cc

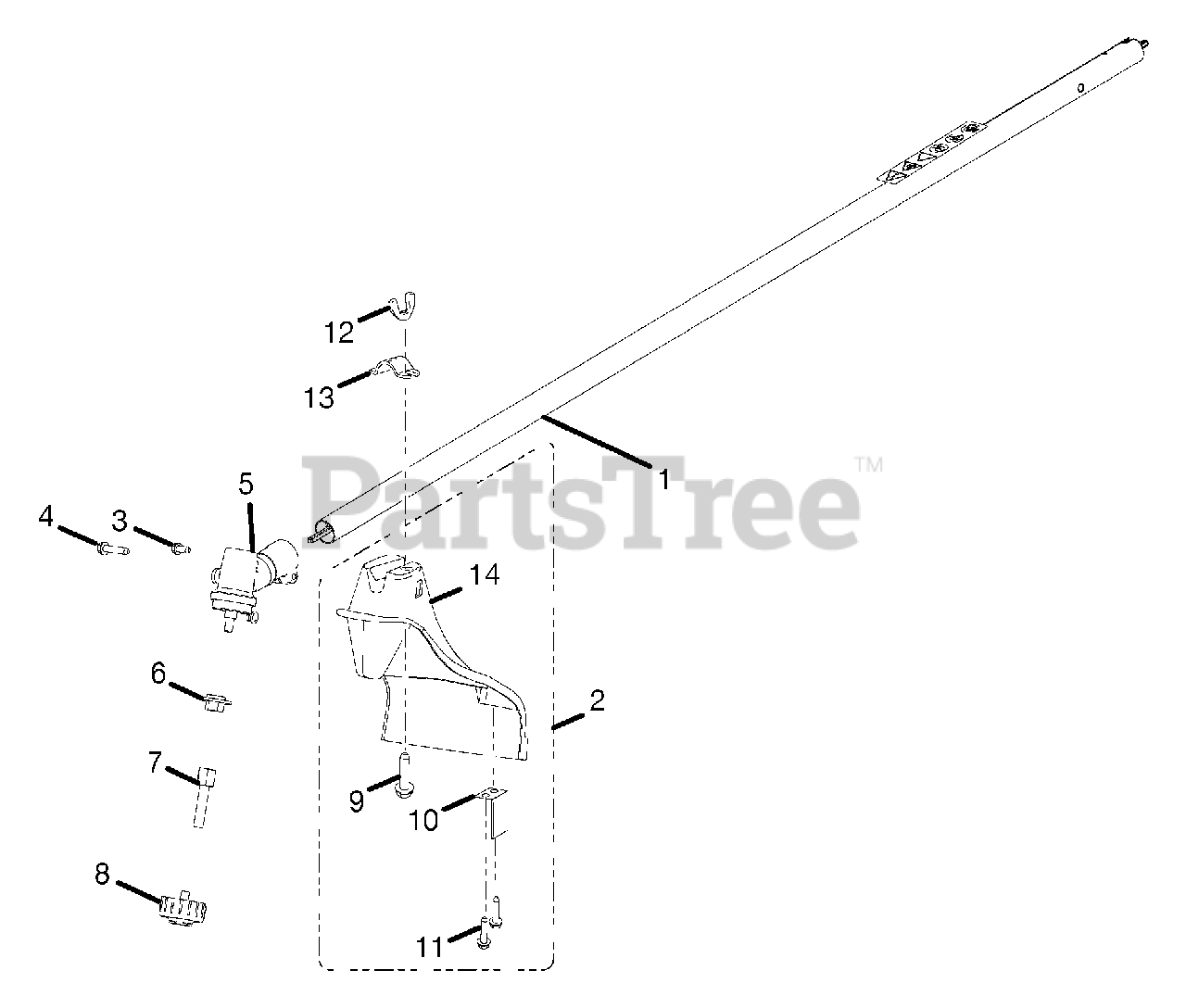

String Trimmer- Figure C Parts Diagram

  • Title

1

Homelite 985381001

STRAIGHT SHAFT ASSEMBLY
(Superseded to 000998228)

$

$

Not available

2

Homelite 984821001

GRASS SHIELD ASSEMBLY
(Superseded to 308454001)

Note: (INCLUDES HARDWARE)

$5.49

$

Usually ships in 3-7 days

0

3

Homelite PS04673

SCREW (10-24 x 5/8 in)
(Superseded to 660641001)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 983381007

SCREW (10-24 x 1-1/4 in.)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 984244001

GEAR HEAD
(Superseded to 308210009)

$28.99

$

Usually ships in 3-7 days

0

6

Homelite 984931001

WASHER
(Superseded to 678011002)

$

$

Not available

7

Homelite PS04438

SHAFT ADAPTER
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

8

Homelite A97910A

SPOOL RETAINER (LH)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite PS02435

SCREW, SQUARE HEAD

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 07129

CUT OFF BLADE

$

$

Not available

11

Homelite 82546

SCREW
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite PS02453

WING NUT

$1.49

$

In Stock, only 3 left!

0

13

Homelite PS02391

SHIELD CLAMP

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 984822001

GRASS SHIELD

$

$

Not available

Homelite 983000337

OPERATOR'S MANUAL

$

$

Not available

Homelite 983000461

CUSTOMER SHEET (REV:00)

$

$

Not available
