UT-20046 - Homelite String Trimmer Figure B Parts Diagram

String Trimmer

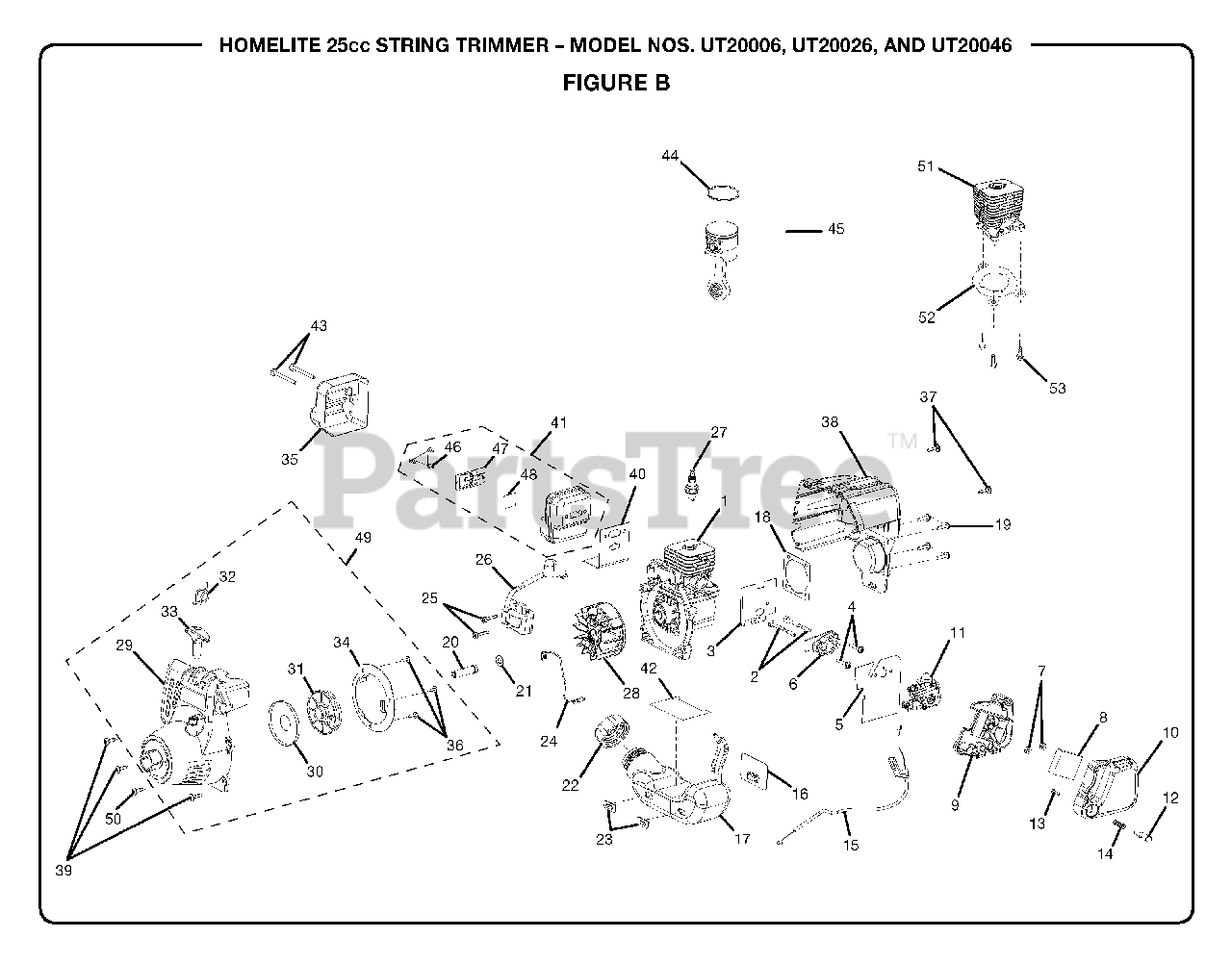

Figure B Parts Diagram

  • Title

1

Homelite 308455001

SHORT BLOCK ASSEMBLY
(Superseded to 984773001)

Note: (EXTERNAL GASKETS NOT INCLUDED)

$

$

Not available

2

Homelite 660661001

CARBURETOR BOLTS
(Superseded to 04474)

$

$

Not available

3

Homelite 900994008

INTAKE GASKET
(Superseded to 984762001)

$1.49

$

In Stock, only 4 left!

0

4

Homelite 660662001

SCREW (10-24 X 1-1/16 in. PAN HD.)
(Superseded to 093221)

Note: May Be Purchased Locally

$

$

Not available

5

Homelite 900740001

CARBURETOR GASKET
(Superseded to 9074001)

$

$

Not available

6

Homelite 518070001

HEAT DAM

$

$

Not available

7

Homelite 678027001

LOCK NUT (10-24)
(Superseded to 81208)

Note: May Be Purchased Locally

$

$

Not available

8

Homelite 900952001

AIR FILTER
(Superseded to 98760)

$1.49

$

In Stock, Qty 8

0

9

Homelite 518094001

AIR FILTER BOX

$

$

Not available

10

Homelite 518096001

AIR BOX COVER

$

$

Not available

11

Homelite 308054003

CABURETOR ASSEMBLY

$

$

Not available

12

Homelite 518105001

BUTTON SWITCH
(Superseded to 06618A)

$

$

Not available

13

Homelite T660619001

SCREW, (6-19 X 1/2 in. T.F.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 678032002

COMPRESSION SPRING
(Superseded to 95020A)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308055002

THROTTLE CABLE W/HANGER

$1.99

$

In Stock, Qty 5

0

16

Homelite 570549001

BUMPER

$1.49

$

In Stock, only 1 left!

0

17

Homelite 308181004

FUEL TANK

Note: (INC. KEY NO. 22)

$

$

Not available

18

Homelite 900954001

CRANK CASE COVER GASKET

$

$

Not available

19

Homelite 660638004

SCREW (10-24 X 3/4 in. PAN HD. TORX W/LW)
(Superseded to 984812001)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638092001

DRIVE CONNECTOR
(Superseded to 98795A)

$

$

Not available

21

Homelite 631049001

FLAT WASHER
(Superseded to PS84065)

$

$

Not available

22

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

23

Homelite 570256001

BUMPER
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 290218001

LEAD W/TERMINALS

$

$

Not available

25

Homelite 660660001

SCREW (8-32 X 1 in. THREAD FORMING)
(Superseded to 82540)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 308064001

IGNITION MODULE
(Superseded to 850080001)

$18.99

$

Usually ships in 3-7 days

0

27

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 300952002

ROTOR AND PAWL ASSEMBLY

$13.99

$

In Stock, only 1 left!

0

29

Homelite 300753003

STARTER HOUSING ASSEMBLY

$

$

Not available

30

Homelite 638033001

SPRING AND CONTAINER

$3.49

$

In Stock, only 3 left!

0

31

Homelite 518098001

STARTER PULLEY
(Superseded to 98770A)

$1.99

$

In Stock, Qty 5

0

32

Homelite 900849002

STARTER ROPE

$1.49

$

In Stock, Qty 6

0

33

Homelite 511731001

STARTER GRIP
(Superseded to PS06114)

$

$

Not available

34

Homelite 638032001

BAFFLE
(Superseded to PS00326)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 638094001

HEAT SHIELD
(Superseded to 984743001)

$

$

Not available

36

Homelite 660694001

SCREW (8-16 X 1/2 in. THREAD FORMING)
(Superseded to 82543)

Note: May Be Purchased Locally

$

$

Not available

37

Homelite 660629001

SCREW (10-14 X 3/4 in. THREAD FORMING)
(Superseded to 82563)

Note: May Be Purchased Locally

$1.49

$

In Stock, Qty 6

0

38

Homelite 518106001

REAR HOUSING

$7.99

$

Usually ships in 3-7 days

0

39

Homelite 660630002

SCREW (10-24 X 3/4 in. TRUSS HD.)
(Superseded to 82538)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 900994006

MUFFLER GASKET

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 308092008

CATALYTIC MUFFLER ASSEMBLY
(Superseded to 985869001)

Note: (INCL. KEY NO. 50 THRU 52)

$

$

Not available

42

Homelite 900999002

GASKET

$1.49

$

In Stock, only 2 left!

0

43

Homelite 660638003

SCREW (10-24 X 2-3/16 in. TORX HD. )
(Superseded to PS03999)

Note: May Be Purchased Locally

$

$

Not available

44

Homelite 678001003

PISTON RING

$2.99

$

In Stock, only 1 left!

0

45

Homelite 308457001

PISTON ASSEMBLY

Note: (INCLUDES KEY NO. 44)

$

$

Not available

46

Homelite 660870001

SCREW (6-20 X 1/4 in. PAN HD.)
(Superseded to 984759001)

Note: May Be Purchased Locally

$

$

Not available

47

Homelite 638044001

OUTLET TUBE
(Superseded to 985596001)

$

$

Not available

48

Homelite 638268001

SCREEN
(Superseded to 984753001)

$1.99

$

In Stock, only 1 left!

0

49

Homelite 300753005

COMPLETE STARTER ASSEMBLY

$

$

Not available

50

Homelite 660616001

SCREW (10-24 X 7/8 in. TORX HD.)

Note: May Be Purchased Locally

$

$

Not available

51

Homelite 640070002

CYLINDER

$42.99

$

Usually ships in 3-7 days

0

52

Homelite 900953001

CYLINDER GASKET

$

$

Not available

53

Homelite 660342002

SCREW (M5 X 20 mm)

$1.49

$

Usually ships in 3-7 days

0

Homelite 983000857

OPERATOR'S MANUAL

$

$

Not available
