UT-20046 - Homelite String Trimmer Figure C Parts Diagram

String Trimmer

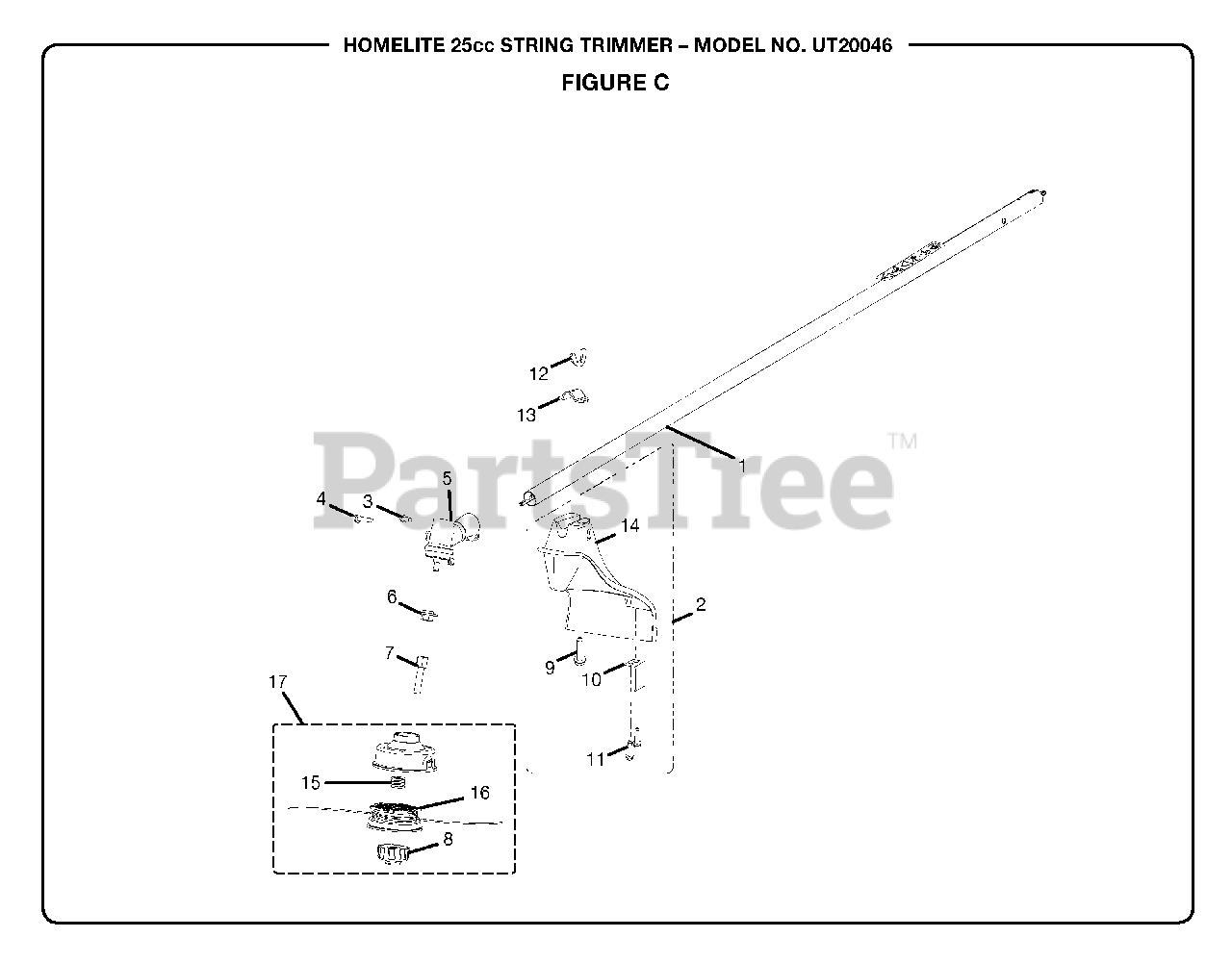

Figure C Parts Diagram

  • Title

1

Homelite 000998228

STRAIGHT SHAFT ASSEMBLY

Note: (INC. LABEL)

$

$

Not available

2

Homelite 308454001

GRASS SHIELD ASSEMBLY

Note: (INC. HARDWARE)

$5.49

$

Usually ships in 3-7 days

0

3

Homelite 660641001

SCREW (10-24 x 5/8 in.)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 660642001

SCREW (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 308053004

GEAR HEAD
(Superseded to 308210009)

$28.99

$

Usually ships in 3-7 days

0

6

Homelite 678011002

WASHER

$

$

Not available

7

Homelite 678019002

SHAFT ADAPTER

$2.49

$

In Stock, only 3 left!

0

8

Homelite 308042003

SPOOL RETAINER (LH)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 660857001

SCREW, SQUARE HEAD
(Superseded to PS02435)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 638020001

CUT OFF BLADE
(Superseded to 07129)

$

$

Not available

11

Homelite 660675001

SCREW

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 678246001

WING NUT
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

13

Homelite 638225001

SHIELD CLAMP
(Superseded to PS02391)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 518328001

GRASS SHIELD
(Superseded to 984822001)

$

$

Not available

15

Homelite 678022001

SPRING
(Superseded to 099068001004)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 308044002

SPOOL & STRING (.080 in.)

$

$

Not available

17

Homelite 000998230

COMPLETE STRING HEAD (.080 in.)

Note: (INC. KEY NOS. 8, 15, AND 16)

$

$

Not available
