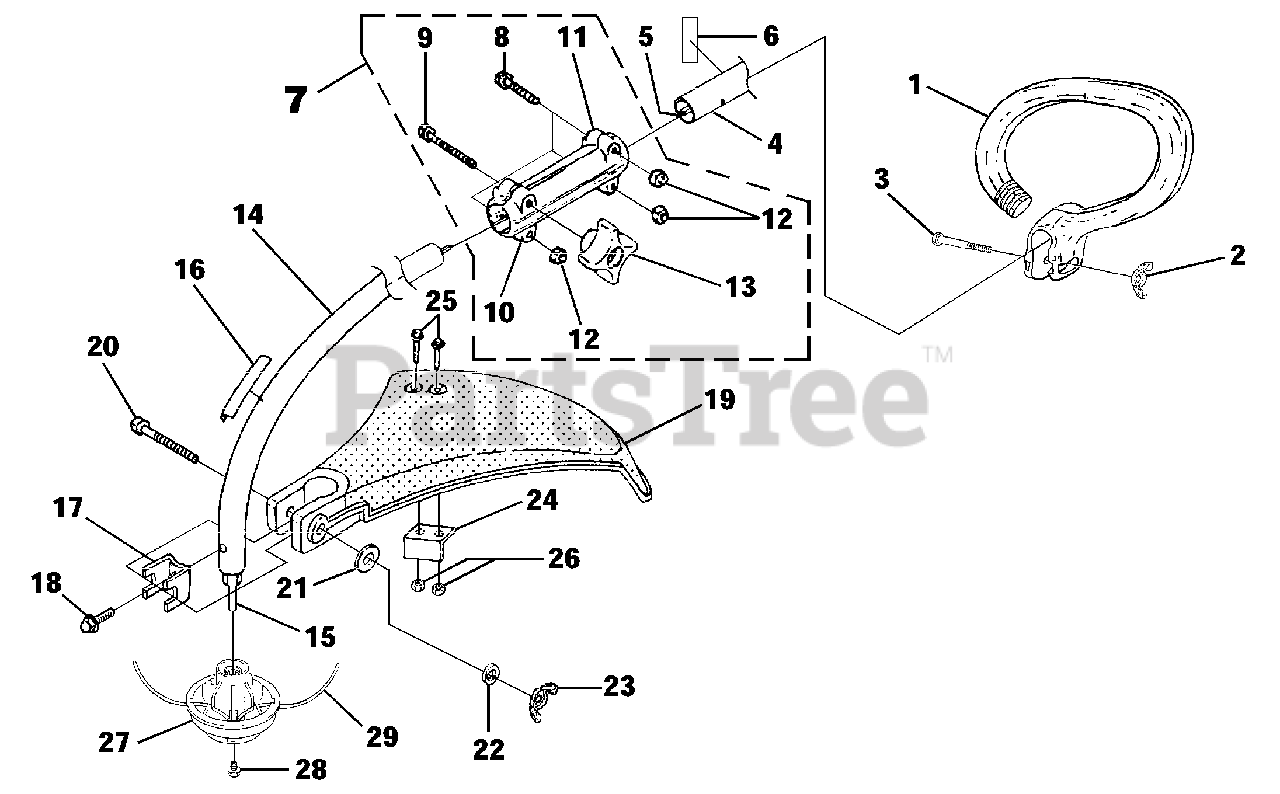

UT-20681 - Homelite Expand-it String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Expand-it String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07136

HANDLE-Anti-Vibe
(Superseded to UP06959A)

Note: (Includes items 2 and 3)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$5.99

$

Usually ships in 3-7 days

0

4

Homelite UP00029

DRIVESHAFT ASSY. (Upper)

Note: (Includes items 5 and 6)

$

$

Currently unavailable

5

Homelite A07667

FLEXSHAFT w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

6

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

7

Homelite A07901

COUPLER ASSEMBLY

Note: (Includes items 8 - 13)

$

$

Not available

8

Homelite 822781

SCREW-Hex Hd. (1/4-20 x 1 1/2")
(Superseded to UP04153)

$

$

Not available

9

Homelite 80295

SCREW-Cap Hex (1/4-20 x 2")

$5.99

$

Usually ships in 3-7 days

0

10

Homelite GM236111

COUPLER (L.H.)
(Superseded to UP04143)

$

$

Not available

11

Homelite GM236112

COUPLER (R.H.)
(Superseded to UP04144)

$

$

Not available

12

Homelite 81267

NUT-Hex (1/4-20)

Note: Torque Spec 50 - 60 in/lbs (5.7 - 6.8 Nm)

$

$

Not available

13

Homelite 08290

KNOB (1/4-20)

Note: Torque Spec - Hand Tight

$

$

Not available

14

Homelite UP02887

DRIVESHAFT HOUSING (Lower)
(Superseded to UP02887A)

Note: (Includes items 15 - 18)

$

$

Not available

15

Homelite A07673

SHAFT-Flex

$71.99

$

Usually ships in 3-7 days

0

16

Homelite PS00038

DECAL-Warning
(Superseded to UP04352)

$

$

Not available

17

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

18

Homelite 88077

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Spec 15 - 25 in/lbs (1.7 - 2.8 Nm)

$

$

Not available

19

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: (Includes items 20 - 26)

$

$

Not available

20

Homelite 80295

SCREW-Cap Hex Hd. (10-24 X 2")

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

22

Homelite 83009

WASHER-Lock (1/4")

$9.99

$

Usually ships in 3-7 days

0

23

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Spec 40 - 60 in/lbs (.6 - 2.8 Nm)

$

$

Not available

24

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

Note: (Includes items 25 and 26)

$

$

Not available

25

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

26

Homelite 81208

NUT-Hex (10-24)

Note: Torque Spec 30 - 40 in/lbs (3.4 - 4.5 Nm)

$

$

Not available

27

Homelite DA09364

STRINGHEAD-Pro-Cut w/line
(Superseded to DA09364A)

Note: (Includes item 28)

$

$

Not available

28

Homelite PS00082

SCREW-Stringhead Retainer

Note: Torque Spec 40 - 60 in/lbs (4.5 - 6.8 Nm)

$

$

Not available

29

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available
