UT-20683 - Homelite Touchstart String Trimmer Carburetor - Fuel Tank Parts Diagram

Touchstart String Trimmer

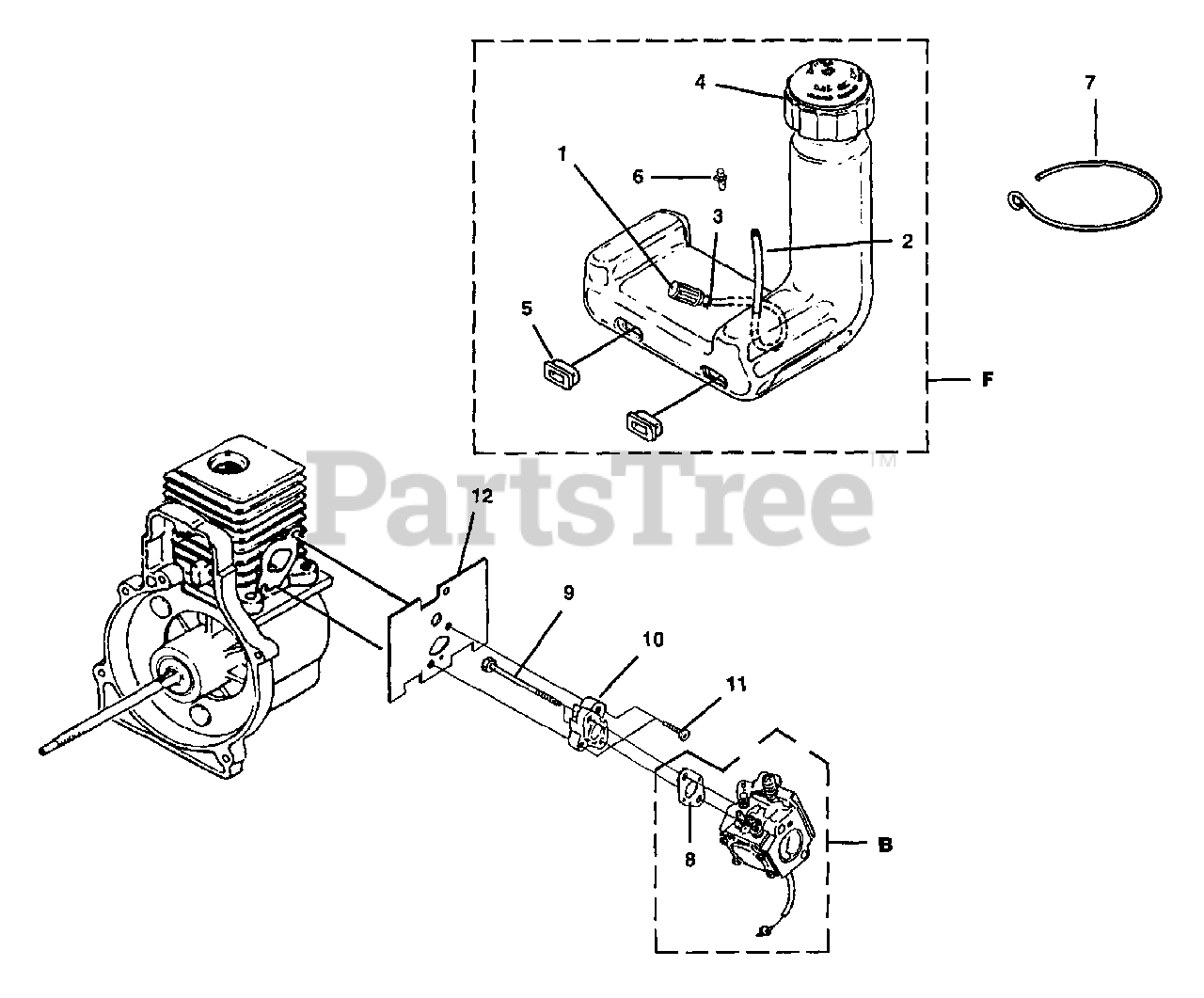

Carburetor - Fuel Tank Parts Diagram

  • Title

F

Homelite A07170F

FUEL TANK COMPLETE

$

$

Not available

1

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

2

Homelite 9477220

TUBING-Rubber (5")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

3

Homelite 98268

CLAMP-Wire
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0

4

Homelite DA06486

FUEL CAP
(Superseded to UP00106)

$

$

Not available

5

Homelite 98792

BUMPER-Rubber

$1.49

$

In Stock, only 3 left!

0

6

Homelite 02067

FITTING-In Line Fuel

$

$

Not available

7

Homelite 07183

SUPPORT WIRE
(Superseded to UP04635)

$

$

Not available

B

Homelite A07169

CARBURETOR KIT

$

$

Currently unavailable

8

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 06881

SCREW-Shoulder (10-24 x 2.8")
(Superseded to PS06881)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 06445

HEAT DAM
(Superseded to PS04357)

$

$

Not available

11

Homelite 825491

SCREW-Taptite (10-24 X 1")
(Superseded to UP05542)

Note: Torque Specs: 35-45 In/Lbs; 4.0-5.1 Required Loctite Red 262

$

$

Not available

12

Homelite 07615

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available
