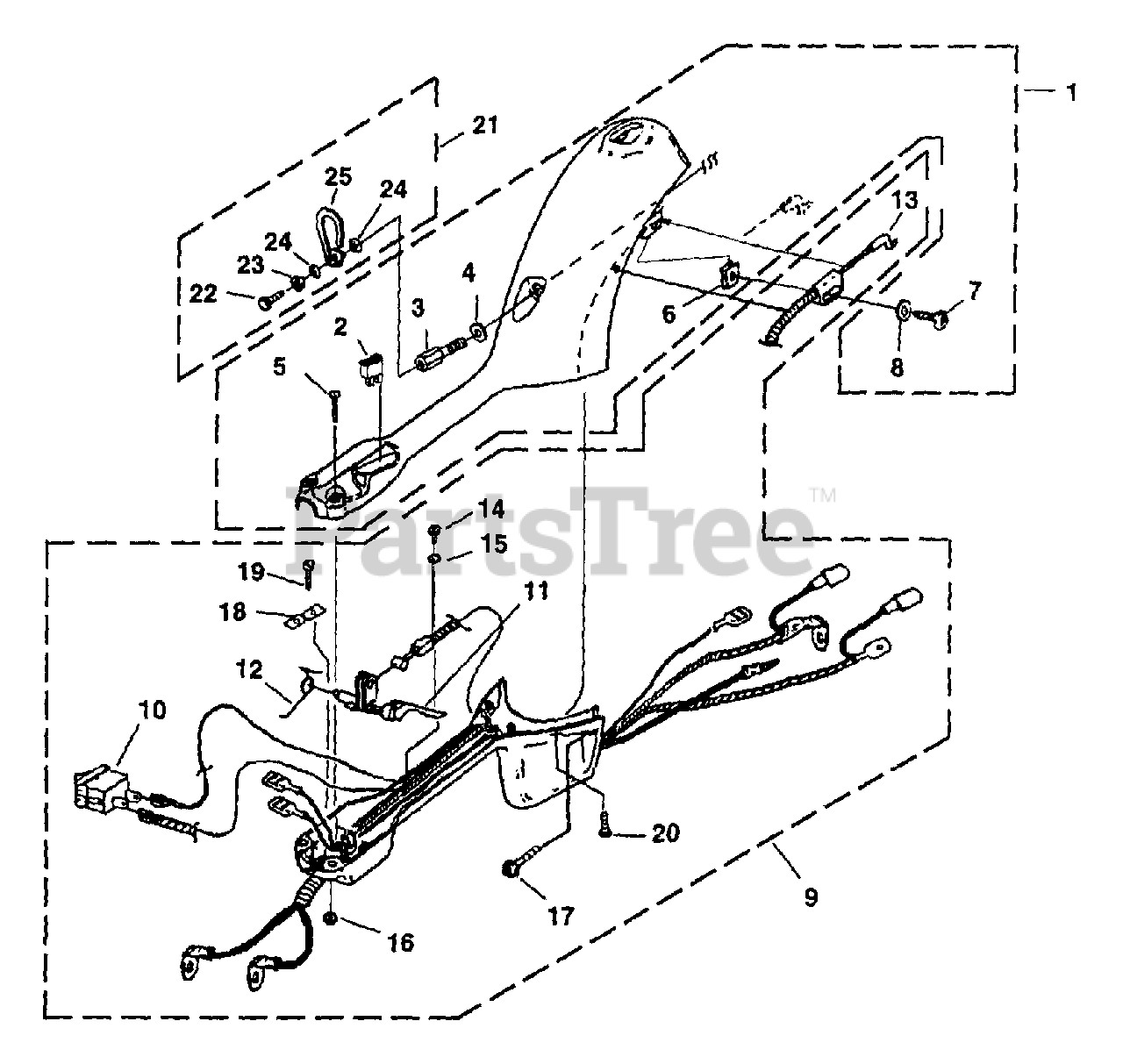

UT-20683 - Homelite Touchstart String Trimmer Control Handle & Clutch Housing Parts Diagram

Touchstart String Trimmer

Control Handle & Clutch Housing Parts Diagram

  • Title

1

Homelite UP00398

CLUTCH HOUSING (Top)

Note: (Also includes item #16)

$

$

Not available

2

Homelite PS00138

SWITCH-Start

$

$

Not available

3

Homelite 08011

SCREW-Adaptor

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$

$

Not available

4

Homelite 84003

WASHER

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 82606

SCREW-Truss Hd. (10-24 x 1 7/8")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$

$

Not available

6

Homelite 81289

NUT-Tinnerman

$

$

Not available

7

Homelite 82612

SCREW-Socket Hd.

Note: Torque Specs: 8-12 In/lbs; .9-1.4 Nm

$

$

Not available

8

Homelite 841031

WASHER-Flat

$

$

Not available

9

Homelite UP00400

CONTROL HANDLE ASSEMBLY

Note: (Also includes item #5)

$

$

Not available

10

Homelite 07919

SWITCH-Rocker (STOP)

$

$

Not available

11

Homelite 06547

Trigger

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 07071

SPRING-Torsion

$

$

Not available

13

Homelite 06548A

CABLE-Throttle
(Superseded to UP05578)

$26.99

$

Usually ships in 3-7 days

0

14

Homelite 82401

SCREW-Thread Form (4-20 x 1/4")

Note: Torque Specs: 5-10 In/lbs; .6-1.1 Nm

$

$

Not available

15

Homelite 84025

WASHER

$

$

Not available

16

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

17

Homelite 82556

SCREW-Torx Truss Hd (10-24 x 3 1/4")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 06912

RETAINER
(Superseded to UP06912A)

$60.99

$

Usually ships in 3-7 days

0

19

Homelite 82564

SCREW-Thread Form (6-20 x 1/2")
(Superseded to UP07285)

Note: Torque Specs: 5 -10 In/lbs; .6-1.1 Nm

$

$

Not available

20

Homelite 82563

SCREW-Thread Form (10-14 x 1/2")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$2.49

$

In Stock, Qty 6

0

21

Homelite A07560

HANGER KIT

Note: (Also includes items #3 & 4)

$

$

Not available

22

Homelite 80648

SCREW (10-32 x 1/2")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$

$

Not available

23

Homelite 83046

WASHER-Lock

$

$

Not available

24

Homelite 84003

WASHER

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 07516

HANGER

$5.99

$

Usually ships in 3-7 days

0
