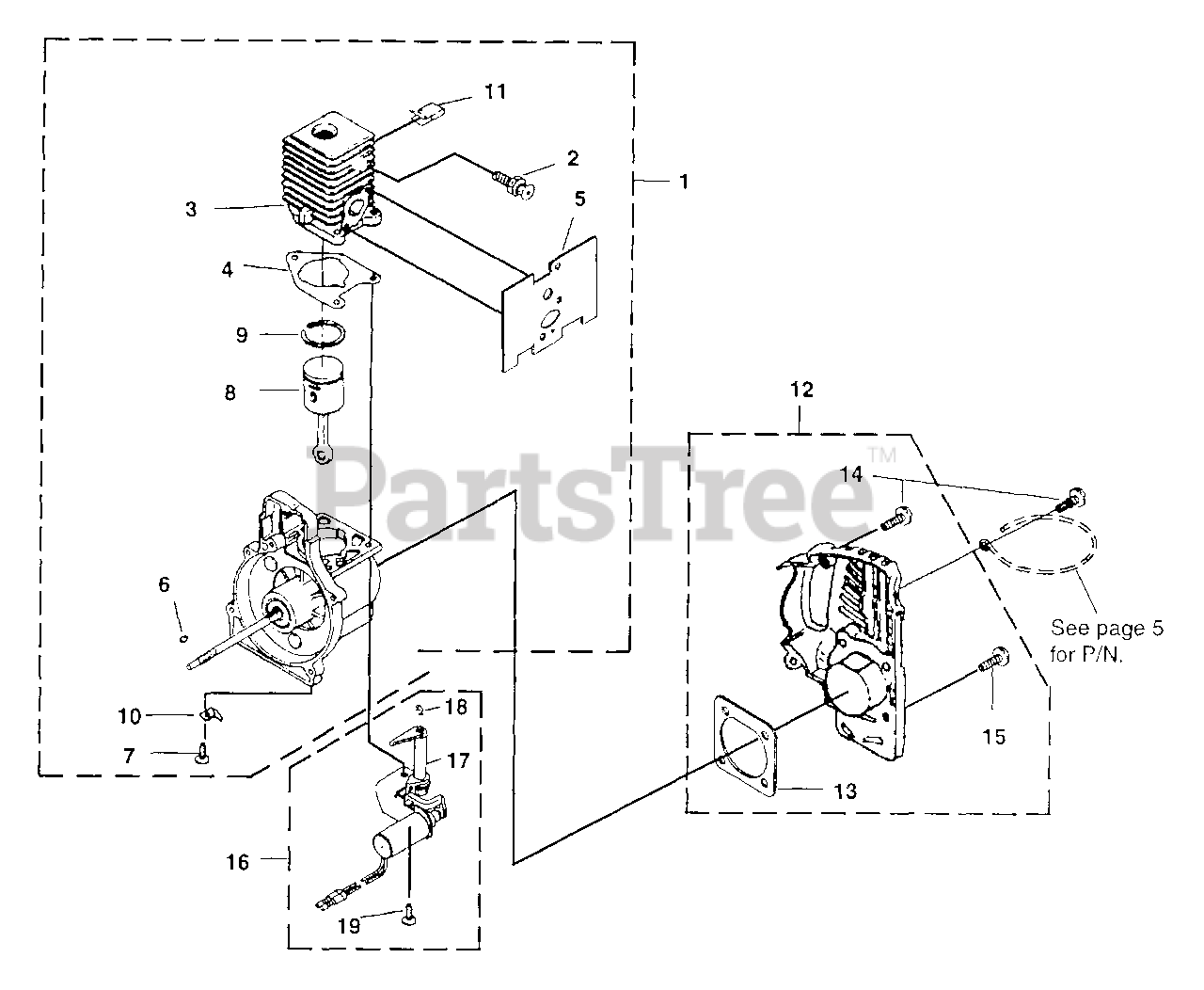

UT-20683 - Homelite Touchstart String Trimmer Engine Internal Parts Diagram

Touchstart String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite A07166

SHORT BLOCK (25CC)
(Superseded to UP00767)

$107.99

$

Usually ships in 3-7 days

0

2

Homelite 06488

COMPRESSION RELEASE VALVE

Note: Torque Specs: 50-60 In/Lbs; 5.6-6.8 Nm

$

$

Not available

3

Homelite A07167

25CC CYLINDER KIT
(Superseded to A07167A)

$48.99

$

Usually ships in 3-7 days

0

4

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

5

Homelite 07615

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

6

Homelite 69250

KEY-Woodruff

$

$

Not available

7

Homelite 826091

SCREW-Thread Form. (10-24 X 7/8")

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Currently unavailable

8

Homelite A07314B

25CC PISTON & ROD
(Superseded to UP00768)

$

$

Not available

9

Homelite 96935

RING-Piston
(Superseded to UP03838)

$

$

Not available

10

Homelite 07193

TERMINAL

$4.49

$

Usually ships in 3-7 days

0

11

Homelite 06469

CLIP

$

$

Not available

12

Homelite A07138

CRANKCASE COVER

$

$

Not available

13

Homelite 08661

GASKET-Crankcase Cover

Note: (Also included with item #3)

$

$

Not available

14

Homelite 82563

SCREW-Plastite (#10 X 3/4")

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$1.49

$

In Stock, Qty 6

0

15

Homelite 880811

SCREW-Taptite (10-24 X .910)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

16

Homelite UP00403

SOLENOID ASSEMBLY

$39.99

$

Usually ships in 3-7 days

0

17

Homelite PS00139

ARM-Lever

$

$

Not available

18

Homelite 69599

RING-Retaining

$

$

Not available

19

Homelite 82609

SCREW-Thread Form (10-24 x 7/8")

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available
