UT-20683 - Homelite Touchstart String Trimmer Muffler - Air Cleaner Parts Diagram

Touchstart String Trimmer

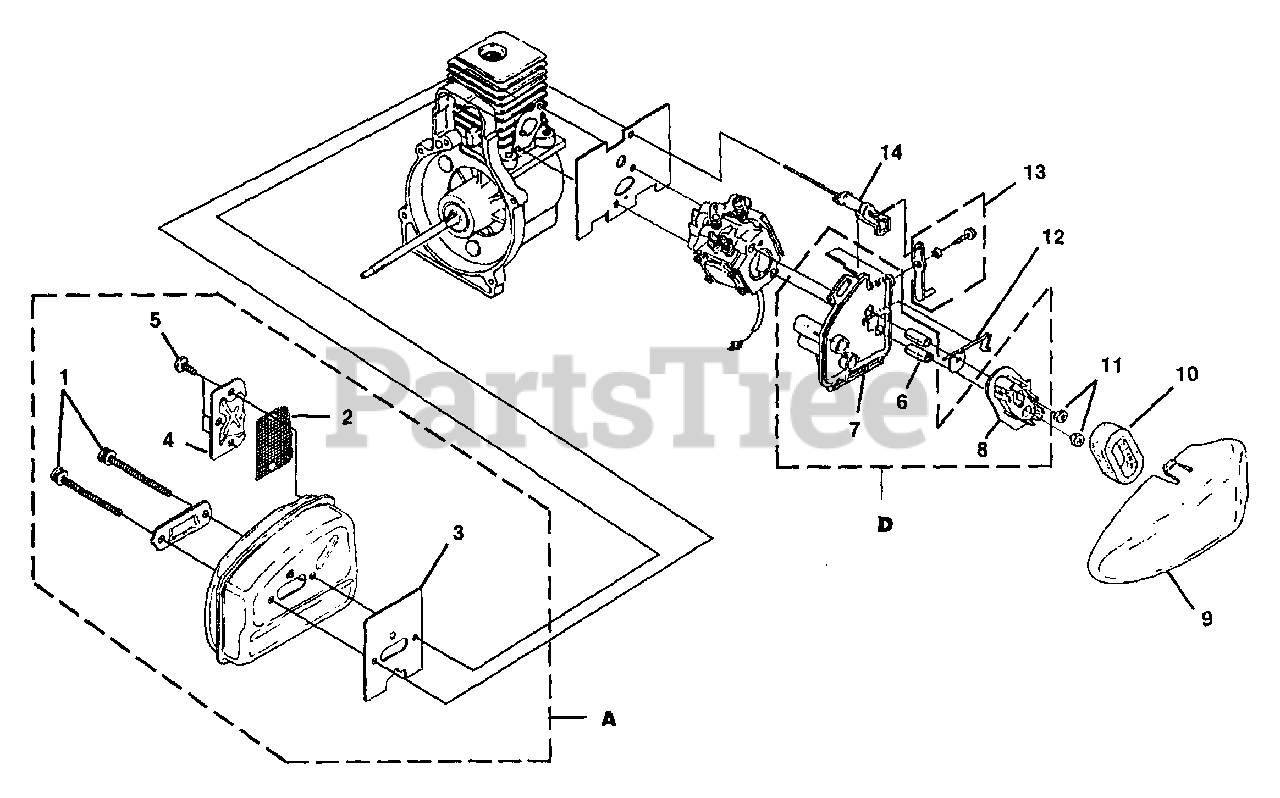

Muffler - Air Cleaner Parts Diagram

  • Title

A

Homelite A07142A

MUFFLER KIT
(Superseded to PA01073)

$41.99

$

Usually ships in 3-7 days

0

1

Homelite 88083

SCREW-Machine (#10-24 X 2.188")
(Superseded to PS03999)

Note: Torque Specs: 50-60 In/Lbs; 5.6-6.8 Nm

$

$

Not available

2

Homelite 06502

SCREEN-Spark

$

$

Not available

3

Homelite 98786C

GASKET-Muffler

$

$

Not available

4

Homelite 06501

COVER
(Superseded to UP04628)

$9.49

$

Usually ships in 3-7 days

0

5

Homelite 82600

SCREW (8-32 x 3/8")

Note: Torque Specs: 25-35 In/Lbs; 2.8-4.0 Nm

$1.49

$

Usually ships in 3-7 days

0

D

Homelite A07171

AIR FILTER BODY
(Superseded to A07171A)

$

$

Currently unavailable

6

Homelite 06720

SPACER

$

$

Not available

7

Homelite 06484

BODY

$

$

Not available

8

Homelite A06480

BLADE RET. MAGNET

$

$

Currently unavailable

9

Homelite 06483

COVER-Air Filter

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 006485

FILTER-Air

$

$

Currently unavailable

11

Homelite 81208

NUT-Hex (10-24)

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

12

Homelite A064771

BLADE & SHAFT ASSEMBLY

$

$

Currently unavailable

13

Homelite A07172

BELLCRANK

$

$

Currently unavailable

14

Homelite A07173

CHOKE ACTUATOR

$

$

Currently unavailable
