UT-20706 - Homelite TrimLite String Trimmer Carburetor - Fuel Tank Parts Diagram

TrimLite String Trimmer

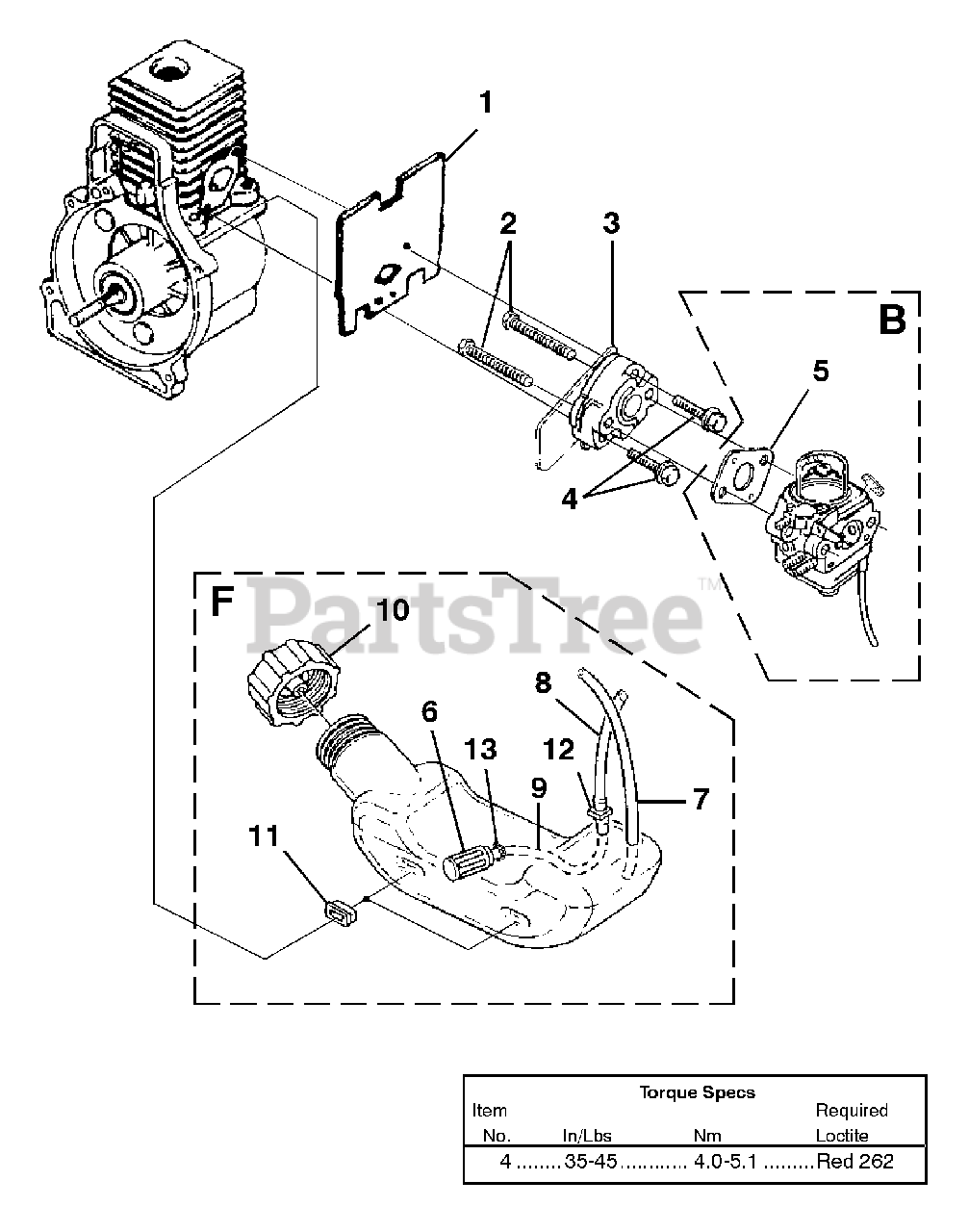

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

2

Homelite 04474

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

3

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

4

Homelite 093221

SCREW-Sems (10-24 X 1")
(Superseded to 660662001)

$

$

Not available

B

Homelite UP00608

CARBURETOR KIT
(Superseded to UP00608A)

Note: Include Items B,5

$

$

Not available

5

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

F

Homelite UP00020A

FUEL TANK ASSY.
(Superseded to 308181004)

Note: Include Items F,13

$

$

Not available

6

Homelite PS03380

FILTER-Fuel
(Superseded to 300759003)

$

$

Not available

7

Homelite 0143918

TUBING-Rubber

$

$

Not available

8

Homelite 0143910

TUBING-Rubber

$1.99

$

In Stock, Qty 8

0

9

Homelite 9477213

TUBING-Rubber

$

$

Not available

10

Homelite A09116

FUEL CAP
(Superseded to 300758006)

$

$

Not available

11

Homelite 98792

BUMPER-Rubber

$1.49

$

In Stock, only 3 left!

0

12

Homelite 07332

FITTING-Inline
(Superseded to 985304001)

$1.49

$

In Stock, Qty 17

0

13

Homelite 98268

CLAMP
(Superseded to 690765001)

$1.49

$

In Stock, Qty 6

0
