UT-20706 - Homelite TrimLite String Trimmer Engine Internal Parts Diagram

TrimLite String Trimmer

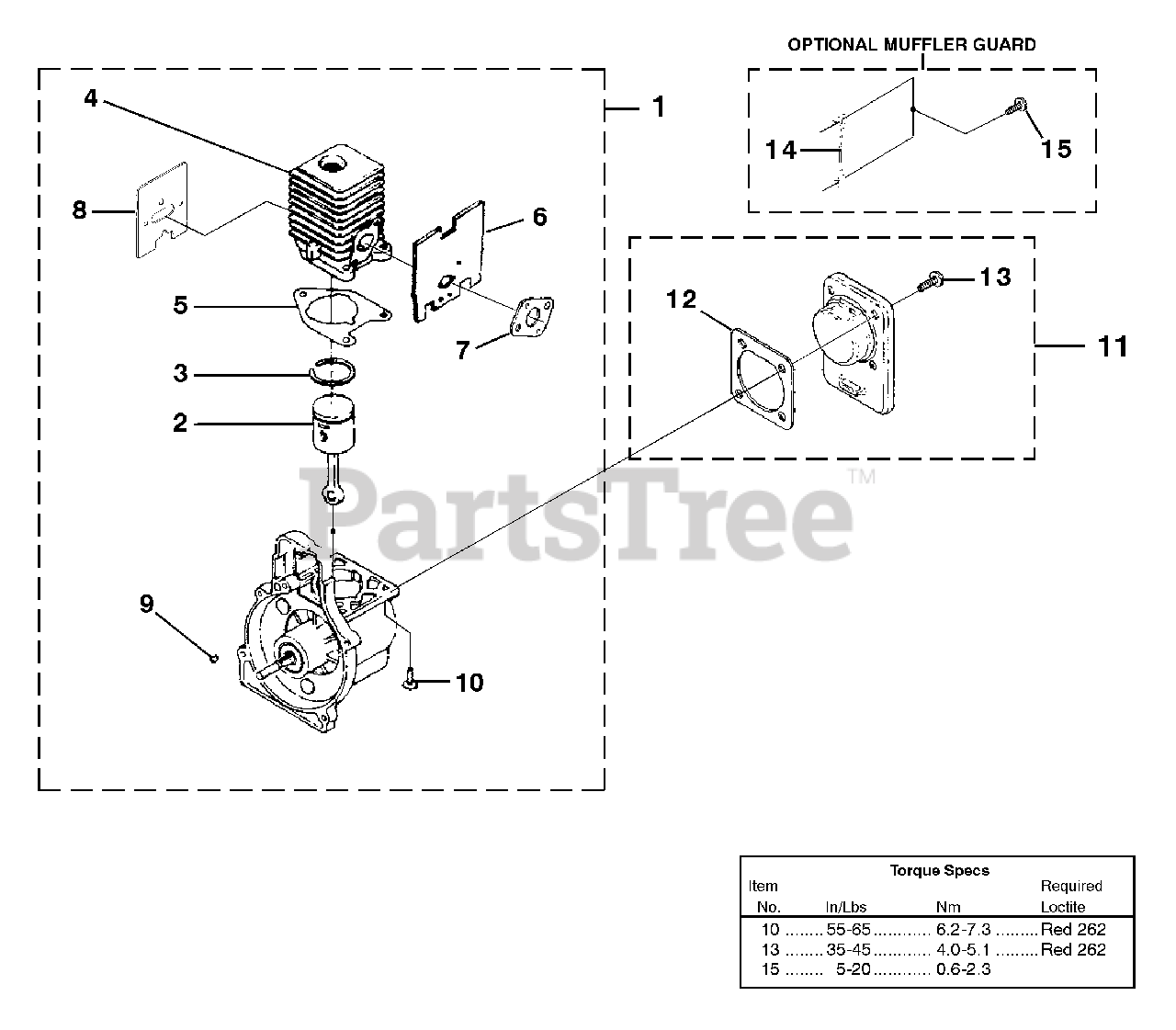

Engine Internal Parts Diagram

  • Title

1

Homelite UP00743A

SHORT BLOCK

Note: Include Items 1-10

$

$

Not available

2

Homelite 984544001

PISTON & ROD ASSY.

Note: Include Items 2,3

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP07145A

CYLINDER ASSY.

Note: Include Items 4-8

$87.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite 69250

KEY-Woodruff

$

$

Not available

10

Homelite PS02807

SCREW (12-24 X .660")

$2.49

$

Usually ships in 3-7 days

0

11

Homelite UP00019A

CRANKCASE COVER ASSEMBLY

Note: Include Items 11-13

$

$

Not available

12

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

Note: (Also included w/short block)

$

$

Not available

13

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

$2.49

$

Usually ships in 3-7 days

0

14

Homelite UP04099

MUFFLER GUARD

Note: Include Items 13-14

$

$

Not available

15

Homelite 82541

SCREW-Thread Forming (10-14 X 1/2")

$2.49

$

In Stock, only 3 left!

0
