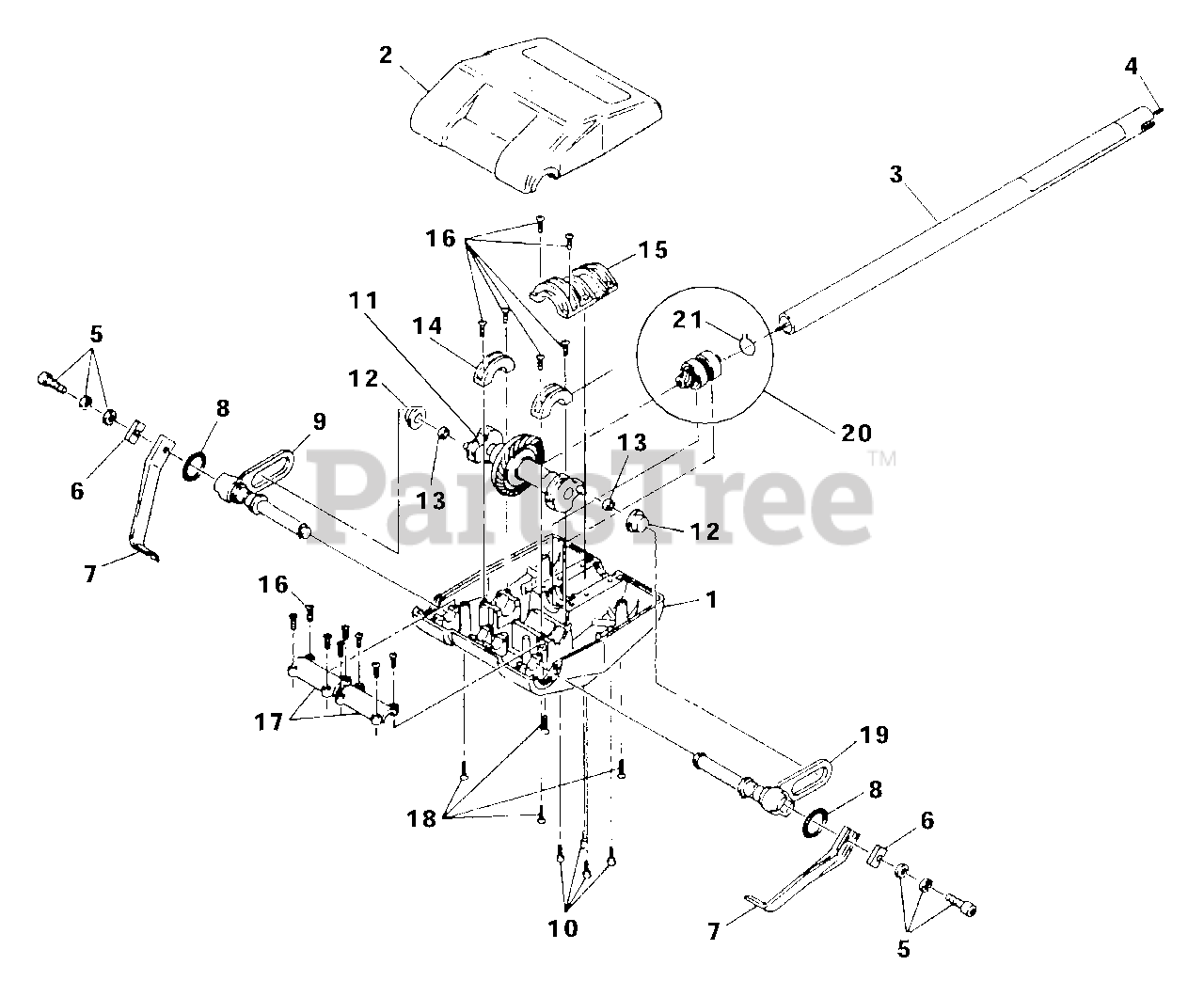

UT-20710 - Homelite Expand-It Plus String Trimmer Cultivator Attachment Parts Diagram

Expand-It Plus String Trimmer

Cultivator Attachment Parts Diagram

  • Title

1

Homelite GM236103

LOWER COVER

$97.99

$

Usually ships in 3-7 days

0

2

Homelite A07934

UPPER HOUSING

$

$

Not available

3

Homelite A07930

DRIVESHAFT HOUSING

Note: Includes item 4

$

$

Not available

4

Homelite A08177

FLEX CABLE

$

$

Not available

5

Homelite GM970307

BOLT-Sems (1/4 - 28 x 1")

Note: Torque Specs 90-100 In/Lbs, 10.2-11.3 Nm.

$

$

Not available

6

Homelite GM236706

SUPPORT-Tine

$

$

Not available

7

Homelite GM976903

TINE

$

$

Not available

8

Homelite GM235701

"O" RING
(Superseded to UP07916)

$

$

Not available

9

Homelite A07868

ROCKER ARM (L.H.)

$

$

Not available

10

Homelite 82618

SCREW, Thread Form (10-24 x 3/4")

Note: Torque Specs 40-55 In/Lbs, 4.5-6.2 Nm. Required Loctite Red 262

$

$

Not available

11

Homelite A07867

CRANK ASSY.

Note: Includes item 12

$

$

Not available

12

Homelite A07870

FLOATING BUSHING

$18.99

$

Usually ships in 3-7 days

0

13

Homelite GM236903

WASHER
(Superseded to UP07281)

$

$

Not available

14

Homelite GM236106

CRANKSHAFT CLAMP

$

$

Not available

15

Homelite GM236104

SHAFT CLAMP

$

$

Currently unavailable

16

Homelite 82618

SCREW, Thread Form (10-24 x 3/4")

Note: Torque Specs 40-55 In/Lbs, 4.5-6.2 Nm. Required Loctite Red 262

$

$

Not available

17

Homelite GM236105

SHAFT CLAMP

$

$

Not available

18

Homelite GM011308

SCREW (8-16 x 1")

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm.

$

$

Not available

19

Homelite A07869

ROCKER ARM (R.H.)

$

$

Not available

20

Homelite A07866

PINNON GEAR & BEARING

Note: Includes item 21

$

$

Not available

21

Homelite GM062101

SNAP RING
(Superseded to UP07917)

$

$

Not available
