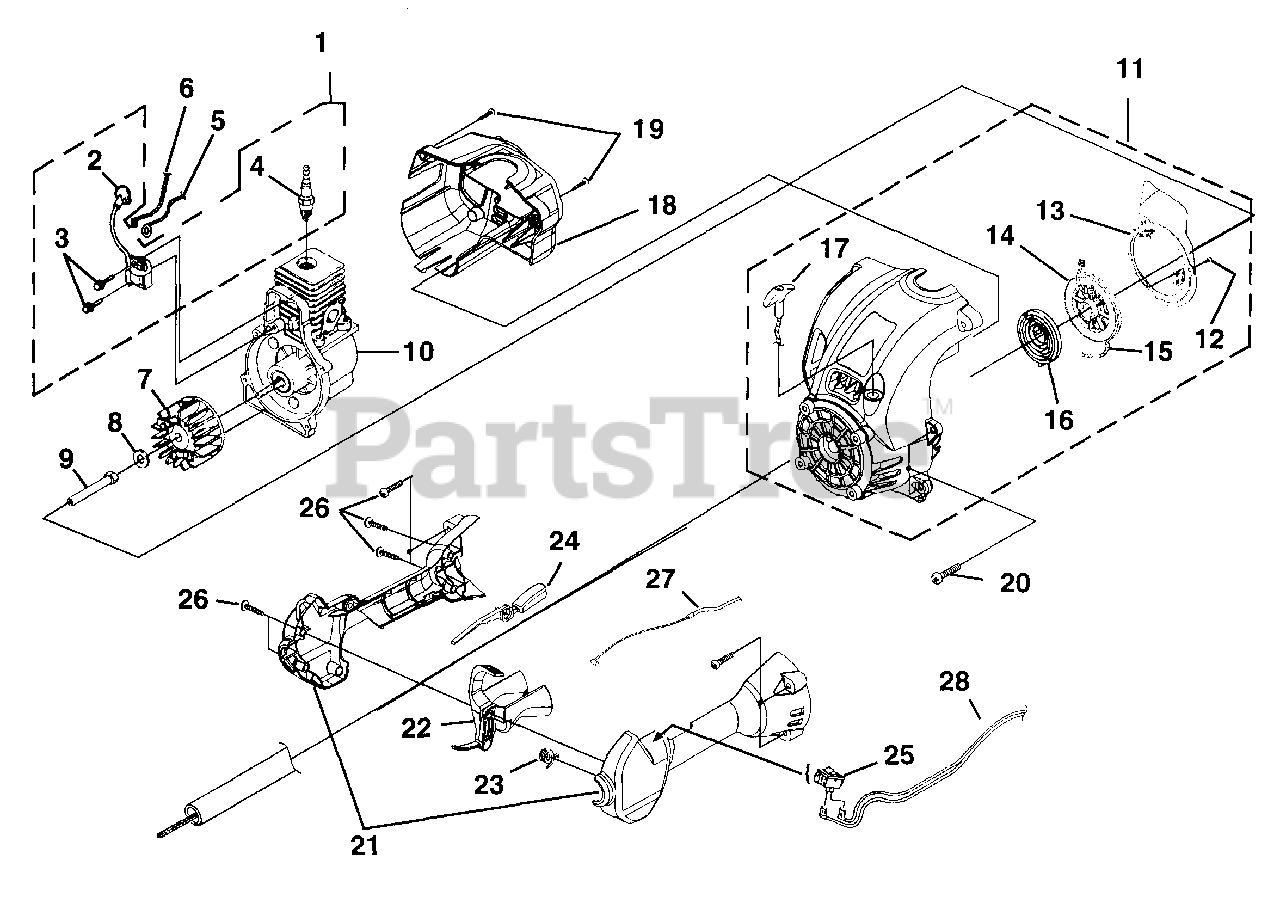

UT-20725 - Homelite String Trimmer, 25cc Ignition - Rotor - Starter Parts Diagram

String Trimmer, 25cc

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite A07174

IGNITION KIT
(Superseded to A07174A)

Note: (Incl. items 2 - 4)

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

$

$

Not available

3

Homelite 82540

SCREW-Taptite (8-32 X 1")

Note: (Torque Specs 30-40 In/Lbs [3.4-4.5 Nm], Blue 242 Loctite Required)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 79252

SPARK PLUG (RDJ-7Y)
(Superseded to UP03883)

Note: (Torque Specs 120-180 In/Lbs [13.6-20.3 Nm])

$3.49

$

Usually ships in 3-7 days

0

5

Homelite A06964

LEAD-Electrical

$

$

Not available

6

Homelite A06963

LEAD-Electrical

$2.49

$

Usually ships in 3-7 days

0

7

Homelite UP03009

ROTOR KIT

Note: (Incl. item 8)

$

$

Currently unavailable

8

Homelite PS84065

WASHER-Flat

$

$

Not available

9

Homelite 98795A

CONNECTOR AND DRUM

$

$

Not available

10

Homelite UP02995

SHORT BLOCK
(Superseded to 984561001)

Note: (See "Engine Internal" illustration and parts list.)

$97.99

$

In Stock, only 1 left!

0

11

Homelite UP02962

COMPLETE STARTER ASSEMBLY
(Superseded to UP02962A)

Note: (Incl. items 12- 16)

$47.99

$

Usually ships in 3-7 days

0

12

Homelite 82543

SCREW-Thread Form (8-16 X 1/2")

Note: (Torque Specs 10-20 In/Lbs [1.1-2.3 Nm])

$

$

Not available

13

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$1.49

$

In Stock, only 1 left!

0

14

Homelite UP03012

PULLEY-Starter
(Superseded to PS01122)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, only 4 left!

0

16

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$3.49

$

Usually ships in 3-7 days

0

17

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

18

Homelite UP02965

HOUSING-Rear Kit

Note: (Incl. items 19 & 20)

$

$

Not available

19

Homelite 82563

SCREW-Plastite (10-14 X 3/4")

Note: (Torque Specs 30-50 In/Lbs [3.4-5.6 Nm])

$1.49

$

In Stock, Qty 6

0

20

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

Note: (Torque Specs 30-40 In/Lbs [3.4-4.5 Nm])

$1.49

$

Usually ships in 3-7 days

0

21

Homelite UP03114

CONTROL HANDLE ASSY.
(Superseded to UP03114A)

Note: (Incl. items 22 - 28)

$

$

Not available

22

Homelite UP03207

TRIGGER-Throttle
(Superseded to UP03207A)

Note: (Incl. item 23)

$3.49

$

Usually ships in 3-7 days

0

23

Homelite UP03210

SPRING
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

24

Homelite UP03173

THROTTLE INTERLOCK
(Superseded to PS01128)

$6.99

$

Usually ships in 3-7 days

0

25

Homelite 07385

SWITCH
(Superseded to 760661001)

$

$

Not available

26

Homelite 82589

SCREW-Taptite (10-14 X 1")

Note: (Torque Specs 30-50 In/Lbs [3.4-5.6 Nm])

$1.99

$

Usually ships in 3-7 days

0

27

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 3 left!

0

28

Homelite UP03174

LEAD-Electrical
(Superseded to PA00387)

$4.49

$

Usually ships in 3-7 days

0
