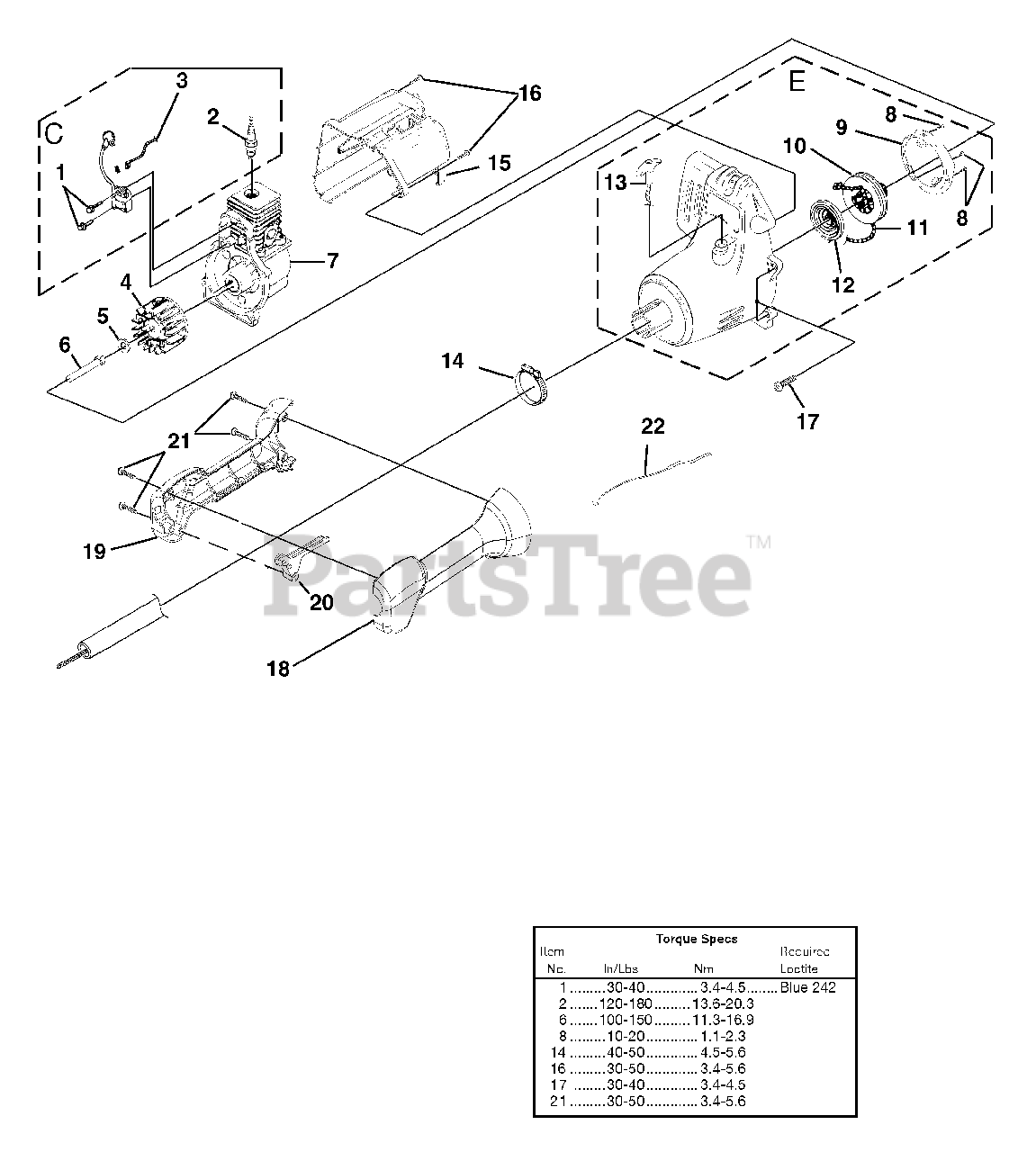

UT-20763 - Homelite TrimLite String Trimmer Ignition - Rotor - Starter Parts Diagram

TrimLite String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

C

Homelite 984873001

IGNITION KIT

Note: Includes Items C-2

$

$

Not available

1

Homelite 82540

SCREW-Taptite (8-32 X 1")

$1.49

$

Usually ships in 3-7 days

0

2

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

3

Homelite A07238

LEAD-Electrical
(Superseded to 290218001)

$

$

Not available

4

Homelite PA00631

ROTOR ASSY
(Superseded to 986153001)

$13.99

$

Usually ships in 3-7 days

0

5

Homelite PS84065

WASHER-Flat

$

$

Not available

6

Homelite 98795A

CONNECTOR-Drive (.250)

$

$

Not available

7

Homelite PA00678

SHORT BLOCK
(Superseded to 984525001)

Note: See "Engine Internal"

$131.99

$

In Stock, only 1 left!

0

E

Homelite 984875001

COMPLETE STARTER ASSEMBLY

Note: Includes Items E-13

$

$

Not available

8

Homelite 82543

SCREW-Taptite (8-16 X 1/2")

$

$

Not available

9

Homelite 6300222

BAFFLE-Air

$

$

Not available

10

Homelite PS01122

PULLEY-Starter

$1.99

$

In Stock, only 3 left!

0

11

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, only 4 left!

0

12

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$3.49

$

In Stock, only 1 left!

0

13

Homelite 5946702

GRIP-Starter
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

14

Homelite PS01611

CLAMP
(Superseded to 638012002)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 984633001

HOUSING-Rear Kit

Note: Includes Items 15-16

$8.99

$

Usually ships in 3-7 days

0

16

Homelite 82541

SCREW-Taptite (10-14 X 7/8")

$1.49

$

In Stock, only 3 left!

0

17

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

$1.49

$

Usually ships in 3-7 days

0

18

Homelite PS04383

CONTROL HANDLE-LH

$

$

Not available

19

Homelite PS04384

CONTROL HANDLE-RH

$

$

Not available

20

Homelite 983815001

TRIGGER-Throttle
(Superseded to 518327001)

$

$

Not available

21

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 0883202

CABLE-Throttle
(Superseded to 308055002)

$1.99

$

In Stock, Qty 5

0
