UT-20777 - Homelite EZ Reach String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

EZ Reach String Trimmer

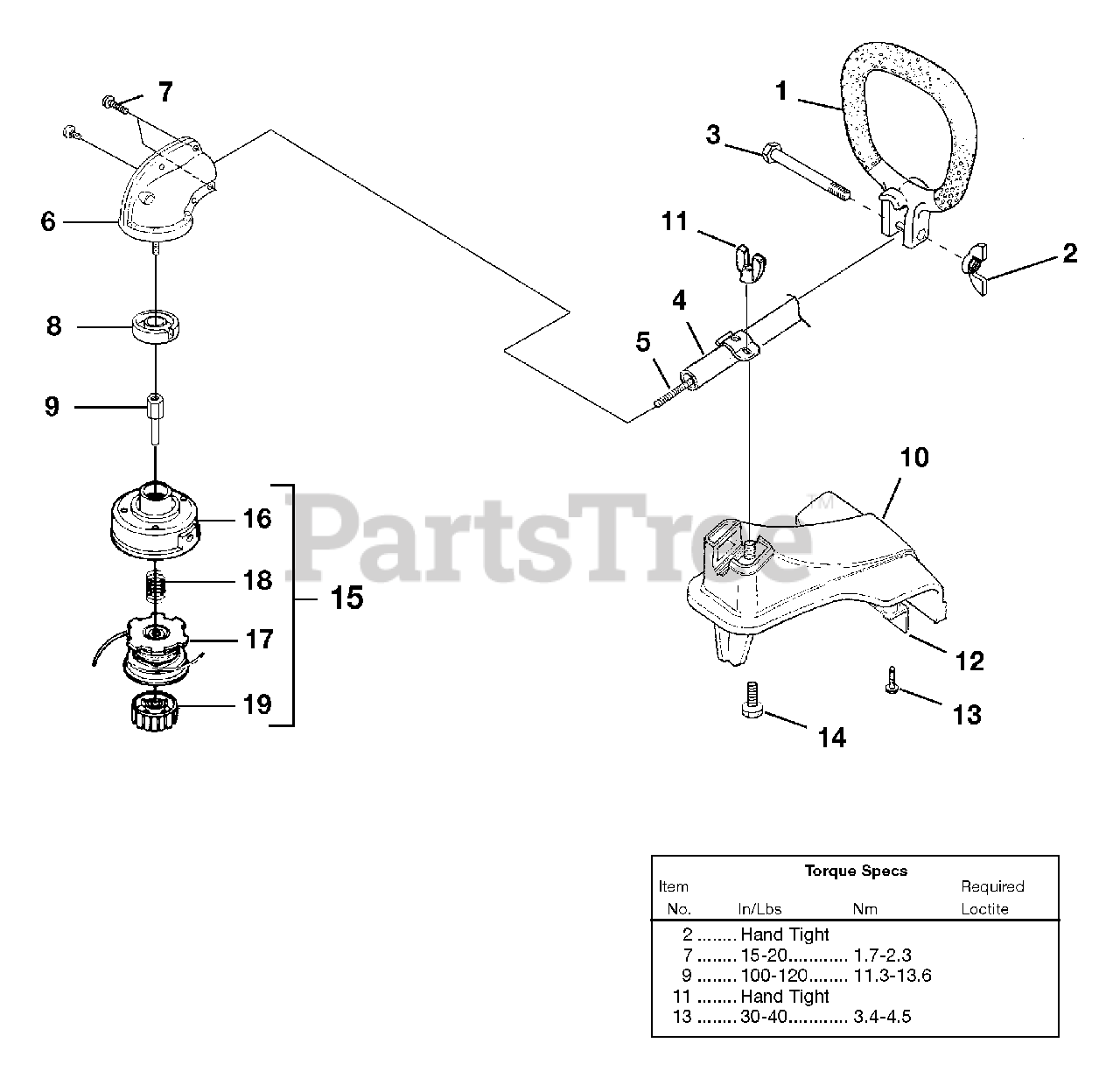

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite 98822A

HANDLE-FRONT

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

4

Homelite PA00983A

DRIVESHAFT HOUSING ASSY.
(Superseded to UP04891A)

$53.99

$

Usually ships in 3-7 days

0

5

Homelite 98818

SHAFT-Flexible

$

$

Not available

6

Homelite A04402C

GEARHEAD ASSY.
(Superseded to UP06970A)

$

$

Not available

7

Homelite 82597

Screw, Taptite Hex Hd. (10-24 x 1/2")
(Superseded to 660630001)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$6.49

$

In Stock, only 2 left!

0

9

Homelite 04355

ADAPTER-Shaft

$11.99

$

Usually ships in 3-7 days

0

10

Homelite PA00982

GRASS DEFLECTOR KIT

$

$

Not available

11

Homelite PS02453

WING NUT

$1.49

$

In Stock, only 3 left!

0

12

Homelite 07129

BLADE-Cut-off

$

$

Not available

13

Homelite 82546

SCREW-Mach.Hex Hd. (10-24 X 3/8")
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite PS02435

SCREW-Square Head

$2.49

$

Usually ships in 3-7 days

0

15

Homelite DA03001A

STRINGHEAD-Complete (.080" Line)
(Superseded to UP04408A)

$

$

Not available

16

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

17

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

18

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 2 left!

0

19

Homelite A98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available

Homelite 983000111

OWNER'S MANUAL

Note: (NOT SHOWN)

$

$

Not available
