UT-20811-B - Homelite Versa Tool String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Versa Tool String Trimmer

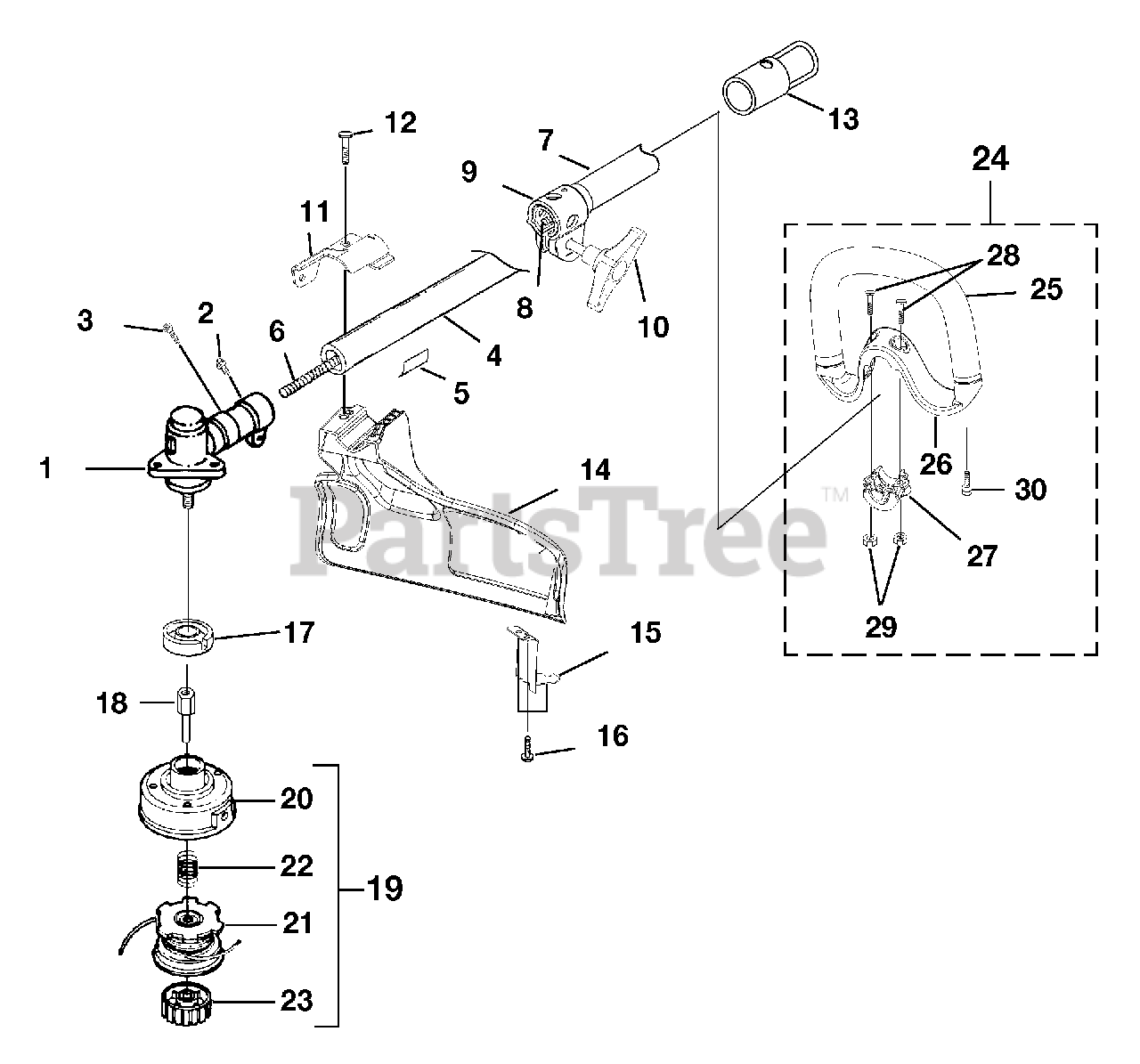

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06866A

GEAR HEAD

Note: Includes items 1-3

$64.99

$

Usually ships in 3-7 days

0

2

Homelite PS04680

Screw, Cap Hd. (1/4-20 X 1.25")
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite PS04673

Screw-Hex Hd. (10-24 x .625")
(Superseded to 660641001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite UP06903A

DRIVESHAFT HOUSING (Lower)

Note: Includes items 4-6

$83.99

$

Usually ships in 3-7 days

0

5

Homelite 983751-001

DECAL-Warning

$

$

Not available

6

Homelite A07679

SHAFT-Flexible

$7.49

$

Usually ships in 3-7 days

0

7

Homelite UP06944A

DRIVESHAFT HOUSING (Upper)
(Superseded to UP08499A)

$

$

Not available

8

Homelite PS04264

FLEXSHAFT-w/Collar & Liner
(Superseded to UP06945)

$

$

Not available

9

Homelite UP03839A

COUPLER KIT

$

$

Not available

10

Homelite PS02071

KNOB

$

$

Not available

11

Homelite PS04420

CLAMP-Grass Shield

$2.99

$

In Stock, only 2 left!

0

12

Homelite 82543

SCREW-Hex Hd. (1/4-20 x 1.25")

$

$

Not available

13

Homelite PS02155

END CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

14

Homelite UP06909A

GRASS SHIELD

Note: Includes items 14-16

$

$

Not available

15

Homelite PS04379

BLADE-Cut-off

$

$

Not available

16

Homelite 82543

SCREW-Pan Hd. (8-16 x 1/2")

$

$

Not available

17

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

18

Homelite PS04438

ADAPTER-Stringhead
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

19

Homelite UP04408

STRINGHEAD-Complete (.080")
(Superseded to UP04408A)

Note: Includes items 19-23

$

$

Not available

20

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

21

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

Note: Includes items 21-22

$

$

Not available

22

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 4 left!

0

23

Homelite A97910A

RETAINER-Spool (LH Thread)
(Superseded to 308042003)

$1.49

$

In Stock, only 1 left!

0

24

Homelite UP06948A

HANDLE-Complete
(Superseded to UP06948)

Note: Includes items 24-30

$

$

Not available

25

Homelite 984439-001

HANDLE W/Grip

$10.99

$

Usually ships in 3-7 days

0

26

Homelite PS04070

CLAMP - "M"
(Superseded to 518038001)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite PS04072

CLAMP-Assist Handle

$2.99

$

In Stock, only 2 left!

0

28

Homelite PS04159

SCREW

$1.49

$

In Stock, only 3 left!

0

29

Homelite 81068

NUT

$

$

Not available

30

Homelite 82620

SCREW

$1.49

$

In Stock, Qty 5

0
