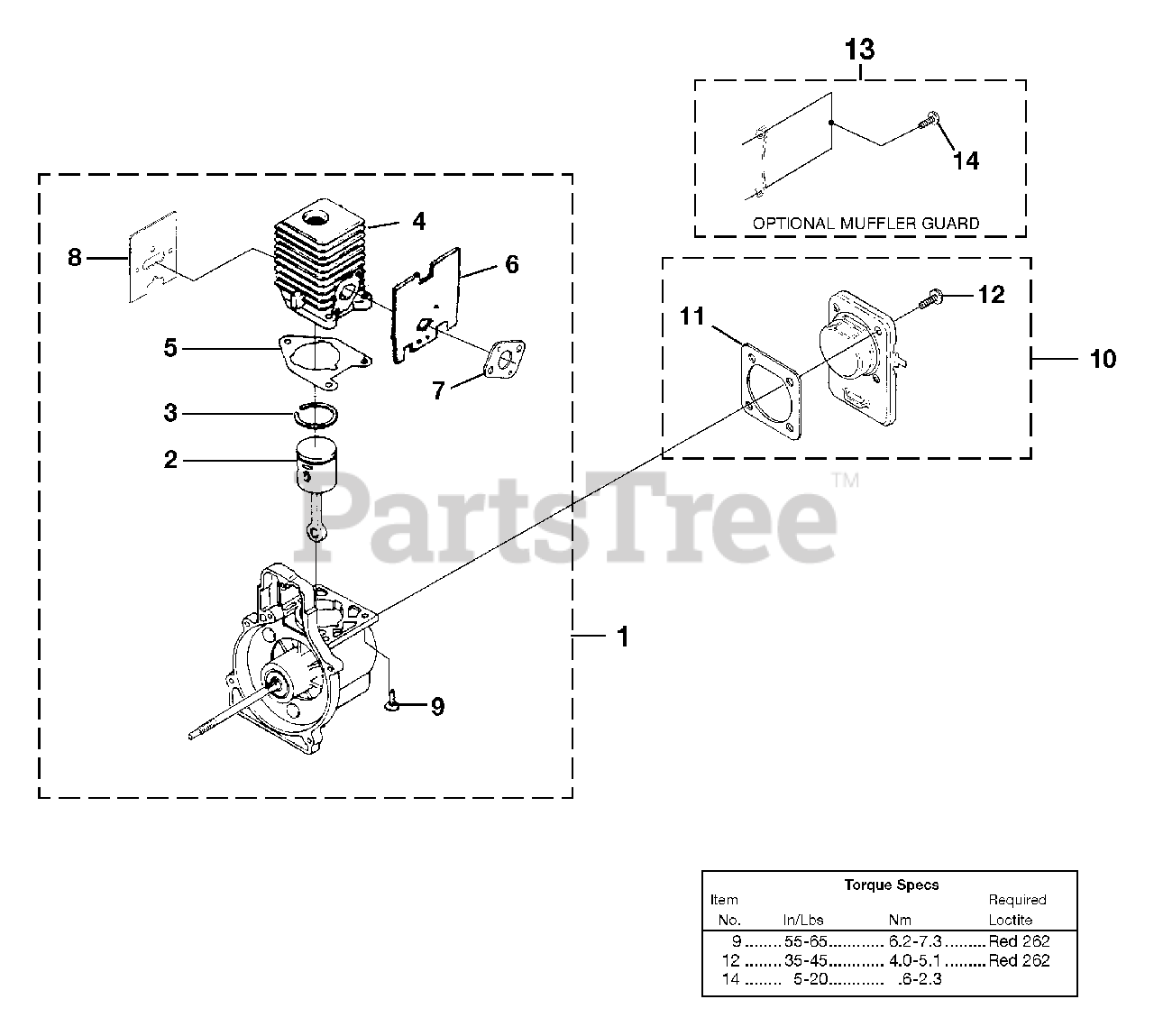

UT-20811 - Homelite Versa Tool String Trimmer Engine Internal Parts Diagram

Versa Tool String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite 984546-001

SHORT BLOCK

$

$

Not available

2

Homelite UP06937A

PISTON & ROD ASSY.
(Superseded to 984868001)

$26.99

$

Usually ships in 3-7 days

0

3

Homelite 985607001

RING-Piston

$4.99

$

In Stock, only 3 left!

0

4

Homelite UP06940

CYLINDER ASSY.

$64.99

$

Usually ships in 3-7 days

0

5

Homelite 985259001

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite PS02807

SCREW-Sems (12-24 X 3/4")

$1.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019A

CRANKCASE COVER ASSEMBLY

Note: Includes items 10-12

$

$

Not available

11

Homelite 08661

GASKET-Crankcase Cover

Note: (Also included w/short block)

$

$

Not available

12

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 09366

MUFFLER GUARD

Note: Includes items 13-14

$

$

Not available

14

Homelite 82541

SCREW-Plastite (10-14 X 1/2")

$1.49

$

In Stock, Qty 5

0
