UT-20818 - Homelite Versa Tool String Trimmer Ignition-Rotor-Starter-Clutch Parts Diagram

Versa Tool String Trimmer

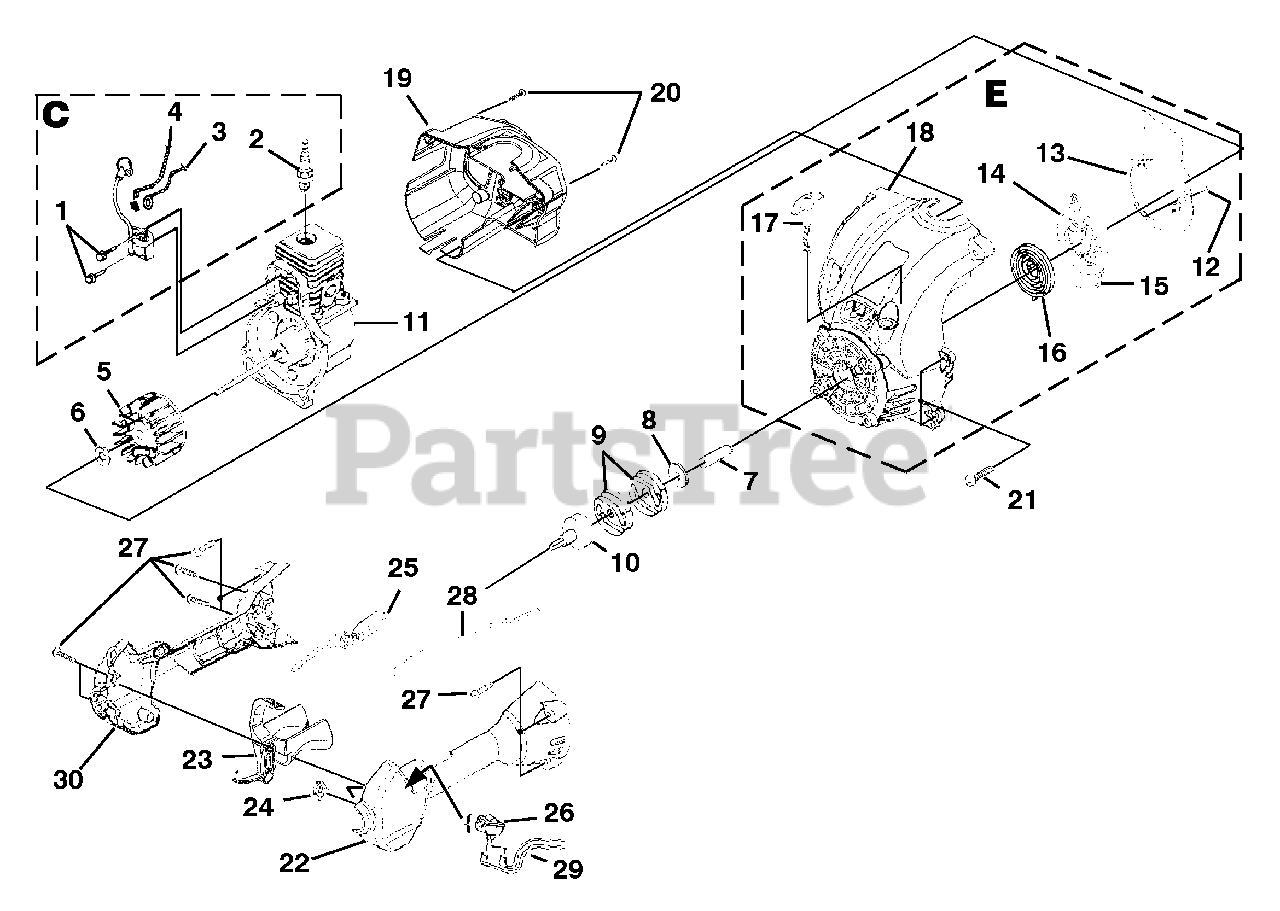

Ignition-Rotor-Starter-Clutch Parts Diagram

  • Title

C

Homelite 984573001

IGNITION KT

Note: Includes Items 1-4

$

$

Not available

1

Homelite 82540

SCREW-Tapite (8-32 X 1)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

3

Homelite A06964

LEAD -Electrical

$

$

Not available

4

Homelite A06963

LEAD-Electrical

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 984531001

ROTOR ASSY.
(Superseded to 986153001)

$13.99

$

Usually ships in 3-7 days

0

6

Homelite PS05268

WASHER-Flat

$1.49

$

In Stock, only 1 left!

0

7

Homelite PS05267

SPACER

$

$

Not available

8

Homelite 98929A

WASHER-Flat
(Superseded to 638090001)

$1.49

$

In Stock, Qty 5

0

9

Homelite 00242

CLUTCH

$

$

Not available

10

Homelite PA01613

CONNECTOR AND DRUM
(Superseded to 308177001)

$

$

Not available

11

Homelite 984867001

SORT BLOCK (See Ei GINe Inter Nal)

$

$

Not available

E

Homelite 984547002

COMPLETE STARTER ASSEMBLY

Note: INCLUDES ITEMS 11-18

$20.99

$

Usually ships in 3-7 days

0

12

Homelite 82543

SCREW-Thread Form (8-16 X 1/2")

$

$

Not available

13

Homelite PS06339

BAFFLE-Air

$

$

Not available

14

Homelite 98770A

PULLEY-Starter

$1.99

$

In Stock, only 4 left!

0

15

Homelite 9789902

ROPE Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, only 4 left!

0

16

Homelite A98773A

SPRING & CONTNER
(Superseded to 638033001)

$3.49

$

In Stock, only 1 left!

0

17

Homelite PS01200

GRIP-Starter (Yel Low)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 3075303

STRATER HSG. ASSSY.
(Superseded to PA00673)

$15.99

$

Usually ships in 3-7 days

0

19

Homelite PS001127

HOUSING-Rear

$

$

Currently unavailable

20

Homelite 82537

SCREW-Plaite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 82538

SCREW-Tapite (10-24 X 3/4")

$1.49

$

Usually ships in 3-7 days

0

22

Homelite PS01125

CONTROL HANDLE - LH

$

$

Not available

23

Homelite PS01814

TRIGGER Throtle
(Superseded to UP03207A)

$3.49

$

Usually ships in 3-7 days

0

24

Homelite PS01718

SPRING

$1.49

$

In Stock, only 2 left!

0

25

Homelite PS01128

THROTTLE INTERLOCK

$6.99

$

Usually ships in 3-7 days

0

26

Homelite PS02764

SITCH

$

$

Not available

27

Homelite 82589

SCREW-Tapite (10-14 X 1")

$1.99

$

Usually ships in 3-7 days

0

28

Homelite PS01177

CABLE Throtle

$1.49

$

In Stock, only 3 left!

0

29

Homelite A00387

LEAD Electrical

$

$

Currently unavailable

30

Homelite PS01124

CONTROL HAN LE - RH

$

$

Not available
