UT-20818 - Homelite Versa Tool String Trimmer Muffler - Air Cleaner Parts Diagram

Versa Tool String Trimmer

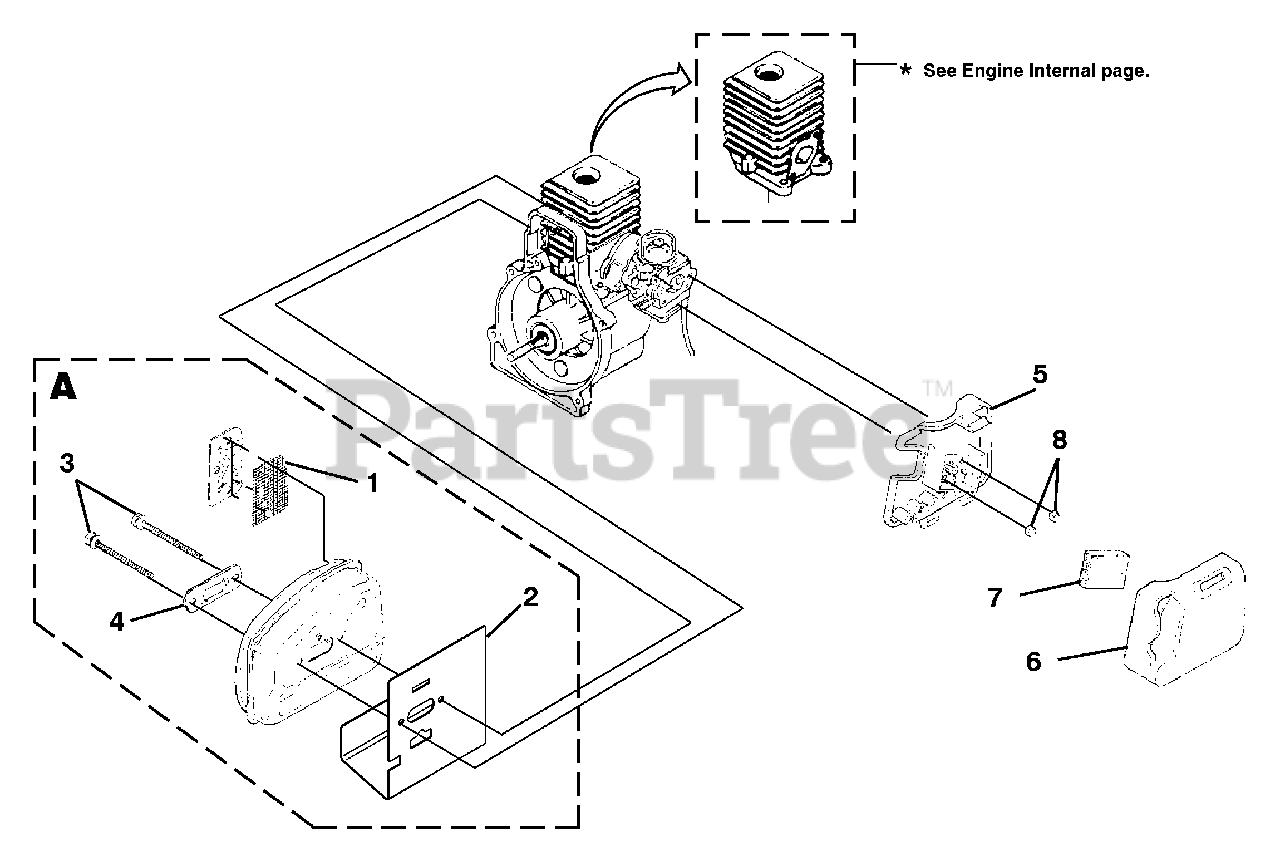

Muffler - Air Cleaner Parts Diagram

  • Title

A

Homelite 984872002

MUFFLER ASSY.

Note: Includes Items A-4

$

$

Not available

1

Homelite 06502

SCREEN-Spark

$

$

Not available

2

Homelite 984428001

GASKET Muffler
(Superseded to 984872002)

$

$

Not available

3

Homelite PS 03999

SCREW

$

$

Not available

4

Homelite 071851

PLATE Reiforcemet

$

$

Not available

5

Homelite PS02113

AIR FILTER BOX
(Superseded to 518094001)

$

$

Not available

6

Homelite PS02309

COVER-Air Box
(Superseded to 518096001)

$

$

Not available

7

Homelite 98760

FILTER-AIR

$1.49

$

In Stock, Qty 5

0

8

Homelite 81208

NUT-Hex (10-24)

$

$

Not available
