UT-20818 - Homelite Versa Tool String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Versa Tool String Trimmer

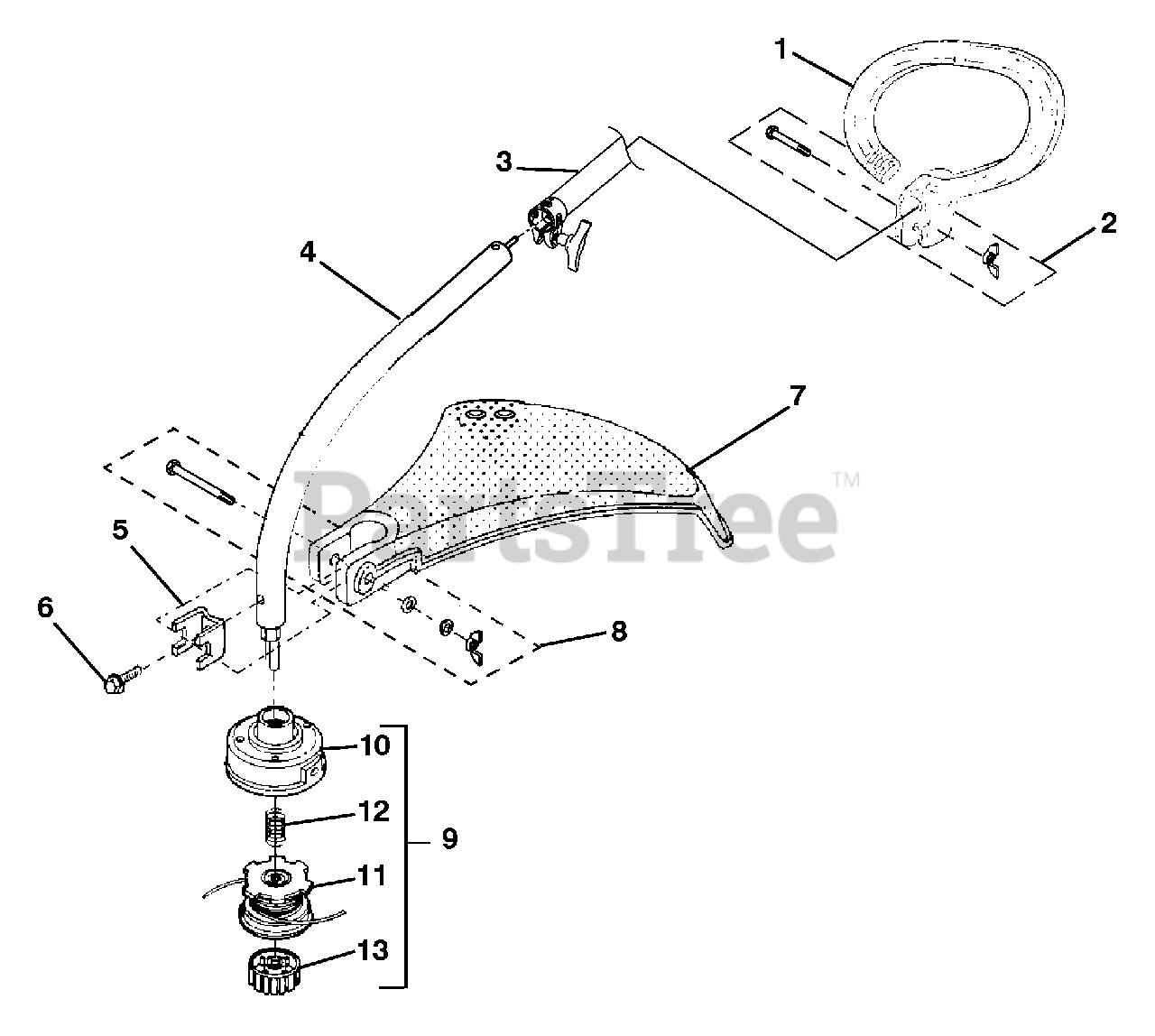

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite 06542A

HANDLE-Anti-Vibe
(Superseded to 308472001)

$

$

Not available

2

Homelite PA00249

FASTENER KIT

$

$

Not available

3

Homelite PA00873A

DRIVESHAFT ASSY. (Upper)
(Superseded to UP03850A)

$

$

Not available

4

Homelite PA00881A

DRIVESHAFT HOUSING (Lower)
(Superseded to 308038001)

$38.99

$

Usually ships in 3-7 days

0

5

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

6

Homelite 983823001

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to 660647001)

$2.49

$

In Stock, Qty 10

0

7

Homelite PA01014

DEFLECTOR
(Superseded to T308744001)

$

$

Not available

8

Homelite PA00249

FASTENER KIT

$

$

Not available

9

Homelite DA03001A

STRINGHEAD Complete (.080")
(Superseded to UP04408A)

Note: Includes Items 9-13

$

$

Not available

10

Homelite A98231A

HOUSING & EYELET (Dual Li NE)
(Superseded to 099068001005)

$

$

Not available

11

Homelite PA0387A

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

12

Homelite 06713

SPRING-Compression

$2.49

$

In Stock, Qty 5

0

13

Homelite A98866A

RETAINER Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available
