UT-20838 - Homelite Versa Tool String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Versa Tool String Trimmer

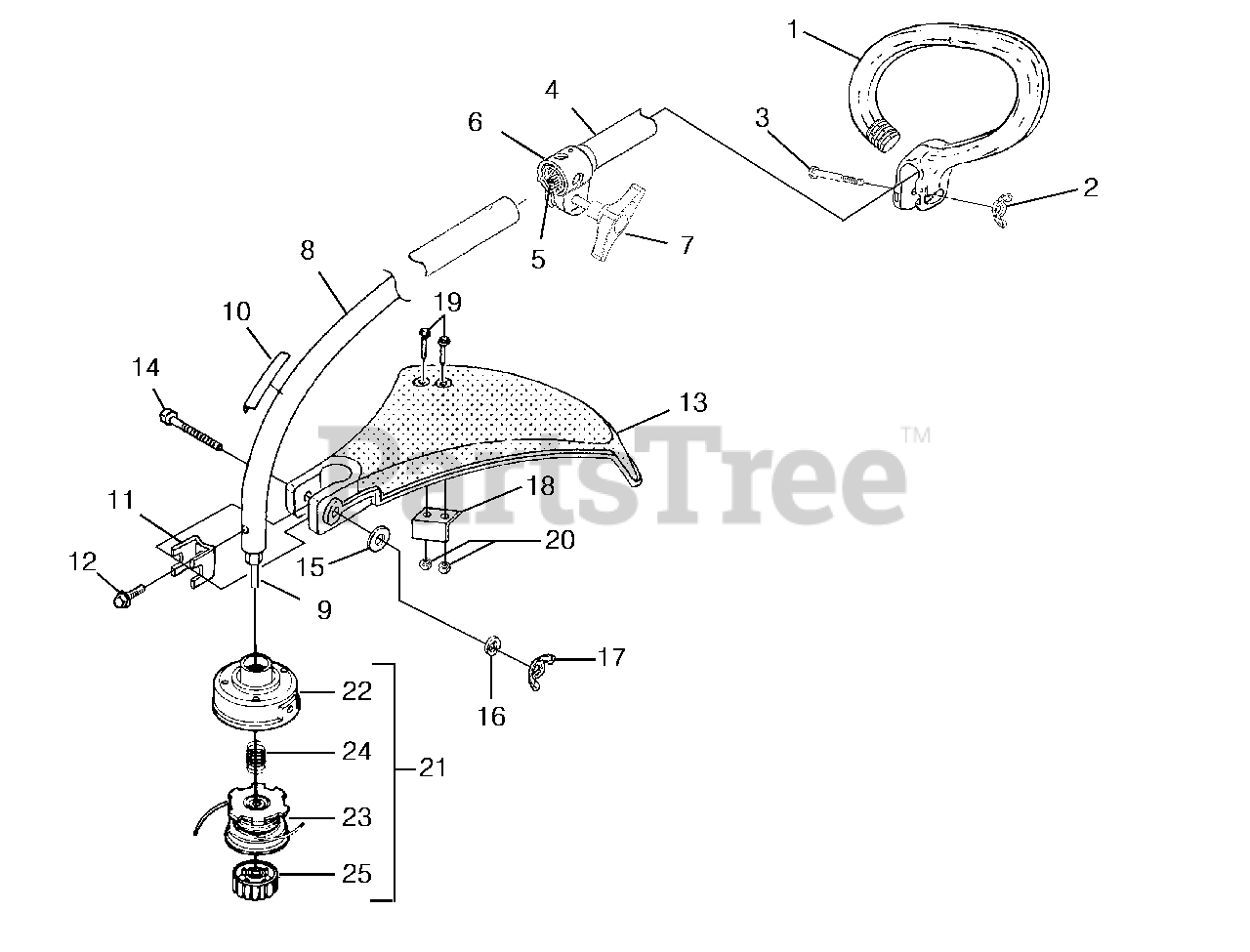

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959

HANDLE-Anti-Vibe
(Superseded to 308472001)

Note: Includes items 2-3

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs; .6-2.8 Nm

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd.
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP05136

DRIVESHAFT ASSY. (Upper)
(Superseded to UP05136A)

Note: Includes items 4-7

$46.99

$

Usually ships in 3-7 days

0

5

Homelite UP06960

FLEXSHAFT
(Superseded to UP03850A)

$

$

Not available

6

Homelite UP03839

COUPLER ASSEMBLY
(Superseded to UP03839A)

$

$

Not available

7

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

8

Homelite UP03851

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03851A)

Note: Includes items 9-12

$19.99

$

Usually ships in 3-7 days

0

9

Homelite UP04541

SHAFT-Flex
(Superseded to A07673)

$35.99

$

Usually ships in 3-7 days

0

10

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

11

Homelite UP04137

CLAMP
(Superseded to 07928)

$

$

Not available

12

Homelite UP04256

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

13

Homelite UP06710

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 14-20

$

$

Not available

14

Homelite UP06523

SCREW-Cap Hex Hd. (10-24 X 2")
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

16

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs; .6-2.8 Nm

$

$

Not available

18

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 19-20

$

$

Not available

19

Homelite UP04159

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 82531)

$

$

Not available

20

Homelite UP04150

NUT-Hex (10-24)
(Superseded to 81261)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

21

Homelite DA03001A

STRINGHEAD-Complete (.080")
(Superseded to UP04408A)

Note: Includes items 22-25

$

$

Not available

22

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

23

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

Note: Includes item 24

$

$

Not available

24

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

25

Homelite UP04273

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
