UT-20930 - Homelite TrimLite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

TrimLite String Trimmer

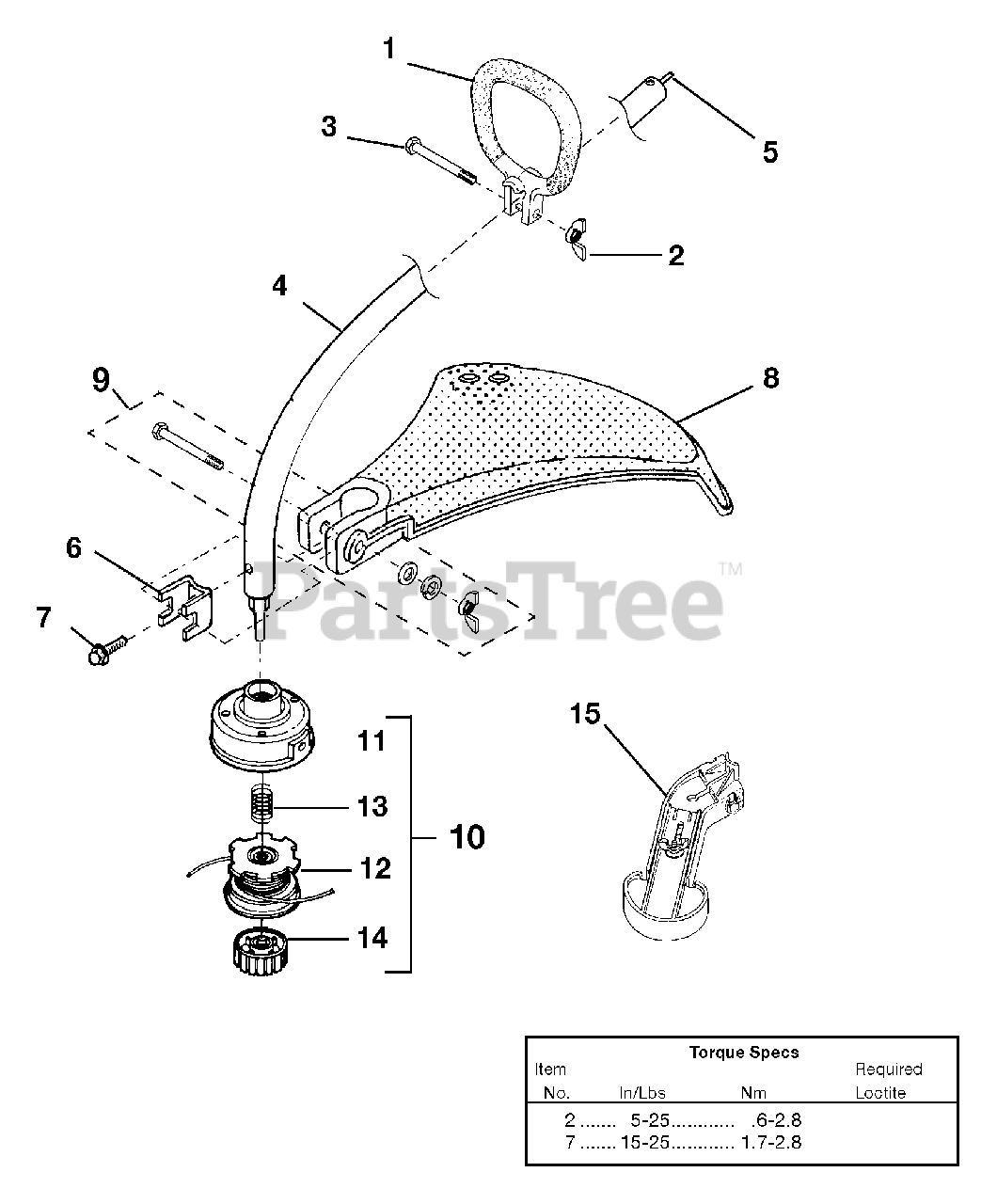

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite 98822A

HANDLE ASSY.-Front

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$2.99

$

Usually ships in 3-7 days

0

4

Homelite PA00472A

DRIVESHAFT HOUSING ASSY.
(Superseded to 985380001)

$49.99

$

In Stock, only 1 left!

0

5

Homelite 986117001

SHAFT-Flexible

$

$

Not available

6

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

7

Homelite 983823001

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to 660647001)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 985623002

DEFLECTOR-GRASS (55 Deg.)
(Superseded to T308744001)

$

$

Not available

9

Homelite PA00249

FASTENER KIT

$

$

Not available

10

Homelite DA03001A

STRINGHEAD-Complete
(Superseded to UP04408A)

$

$

Not available

11

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

12

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

13

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 2 left!

0

14

Homelite A98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available

15

Homelite UP00008

EDGER GUIDE KIT (UT20933 only)

$

$

Not available

Homelite 983000111

OWNER'S MANUAL

Note: (NOT SHOWN)

$

$

Not available
