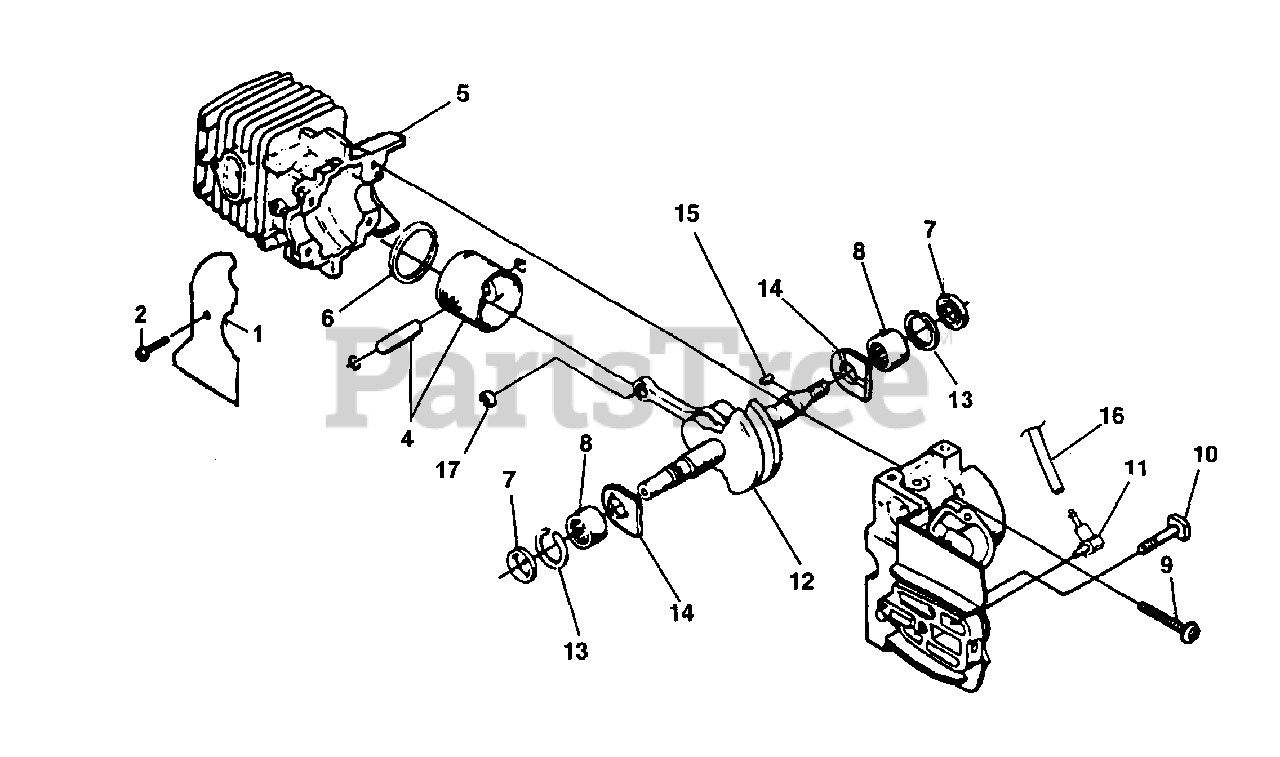

UT-26202 - Green Machine Chainsaw, 20cc Engine Internal Parts Diagram

Chainsaw, 20cc

Engine Internal Parts Diagram

  • Title

1

Homelite 02639

SAW DUST SHIELD

$

$

Not available

2

Homelite 93932

SCREW, SELFTAPPING (#6 x 5/16")

Note: (Torque Specs: 18-24 In/Lbs, 2.0-2.8 Nm)

$

$

Not available

3

Homelite A001321A

SHORT BLOCK

$

$

Not available

Homelite UP00068

SHORT BLOCK
(Superseded to A001321A)

Note: After S/N GR0010001

$

$

Not available

4

Homelite A04330

PISTON & PIN ASSY.

$

$

Not available

5

Homelite 024855

CYLINDER

$

$

Not available

Homelite UP00069

CYLINDER
(Superseded to 024855)

Note: After S/N GR0010001

$

$

Not available

6

Homelite 93165

RING, PISTON

$

$

Not available

7

Homelite 07025

SEAL, SHAFT
(Superseded to 09108)

$

$

Not available

8

Homelite 12530

BEARING, NEEDLE

$

$

Not available

9

Homelite 82567

SCREW,TORX PAN HEAD (10-24 x 1-1/8")

Note: (Torque Specs: 65-75 In/Lbs, 7.5-8.6 Nm)

$

$

Not available

10

Homelite 69195

BOLT, GUIDE BAR

$4.99

$

In Stock, only 2 left!

0

11

Homelite 07510

VALVE, CHECK

$

$

Not available

12

Homelite A04602

CRANKSHAFT, ROD & BEARING

$

$

Not available

13

Homelite 07025

SPACER
(Superseded to 09108)

$

$

Not available

14

Homelite 03962

WASHER, THRUST

$

$

Not available

15

Homelite 69250

KEY, WOODRUFF

$

$

Not available

16

Homelite 7031032

TUBING, RUBBER OIL LINE (8")
(Superseded to UP06561)

$

$

Not available

17

Homelite 02035

BEARING, WRIST PIN

$

$

Not available
