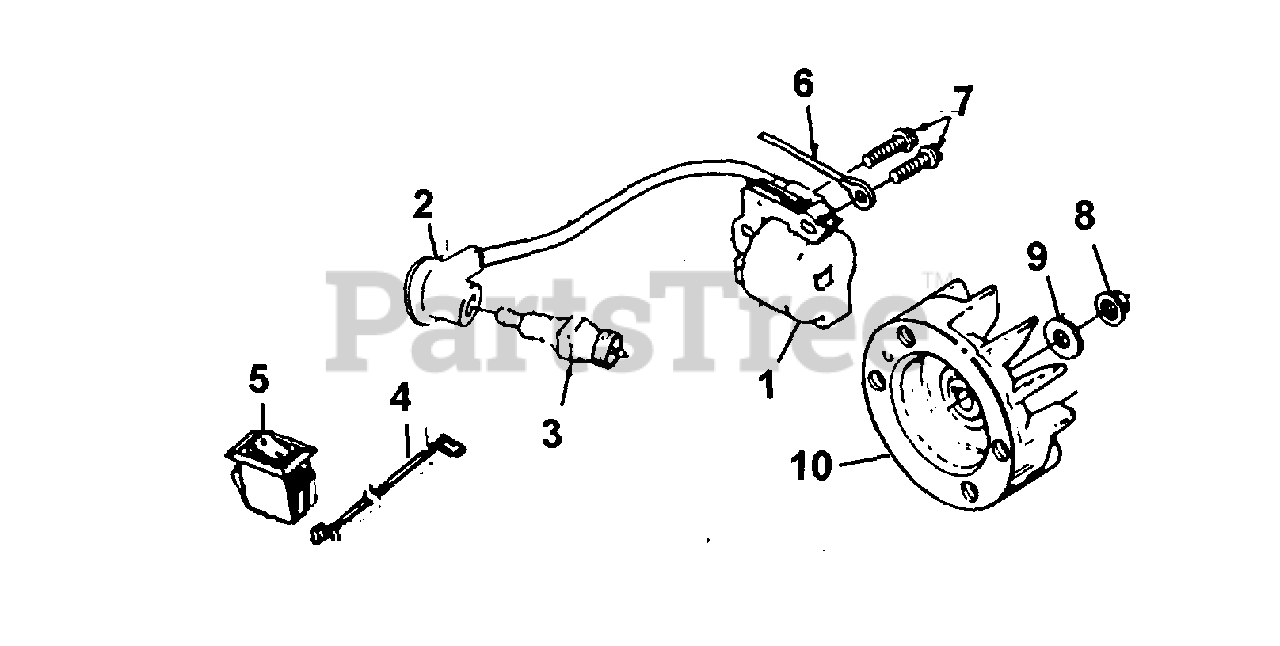

UT-26202 - Green Machine Chainsaw, 20cc Ignition Parts Diagram

Chainsaw, 20cc

Ignition Parts Diagram

  • Title

1

Homelite 94711CS

MODULE, IGNITION

$

$

Not available

2

Homelite A33055

TERMINAL

$

$

Not available

3

Homelite DG96169

SPARK PLUG

Note: (Torque Specs: 120-180 In/Lbs, 13.8-20.7 Nm)

$

$

Currently unavailable

4

Homelite A02482

LEAD, DOUBLE FLAG
(Superseded to UP07635)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 02497

SWITCH, ROCKER
(Superseded to 985703001)

$

$

Not available

6

Homelite A02484

LEAD, RING TERMINAL

$

$

Not available

7

Homelite 82540

SCREW, TAPTITE (8-32 x 1")

Note: (Torque Specs: 30-40 In/Lbs, 3.4-4.6 Nm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 81229A

NUT, (5/16 x 24)

Note: (Torque Specs: 100-150 In/Lbs, 11.5-17.3 Nm)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 95299

WASHER, THRUST

$

$

Not available

10

Homelite A04158S

ROTOR ASSY.
(Superseded to UP03856A)

$

$

Not available
