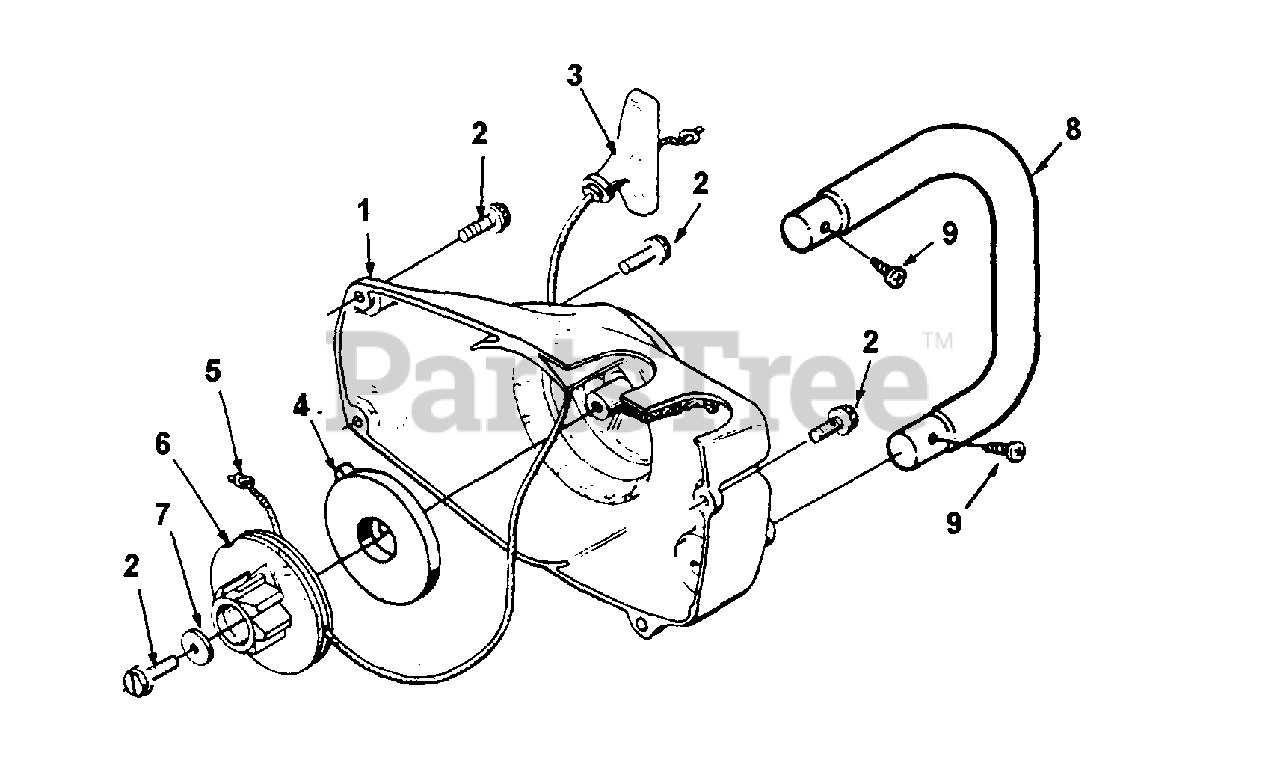

UT-26202 - Green Machine Chainsaw, 20cc Starter Parts Diagram

Chainsaw, 20cc

Starter Parts Diagram

  • Title

1

Homelite A0676212

RECOIL STARTER ASSY.

$

$

Currently unavailable

2

Homelite 82563

SCREW, SELF TAPPING (10-24 x 3/4")

Note: (Torque Specs: 30-50 In/Lbs, 3.4-5.8 Nm)

$1.49

$

In Stock, Qty 6

0

3

Homelite 02264

GRIP, STARTER
(Superseded to UP03832)

$

$

Not available

4

Homelite A97908

SPRING, REWIND
(Superseded to 300982011)

$

$

Not available

5

Homelite 9789901

ROPE, STARTER
(Superseded to 900849001)

$1.49

$

In Stock, only 4 left!

0

6

Homelite 97768B

PULLEY, STARTER
(Superseded to UP05460)

$

$

Not available

7

Homelite 94062

WASHER, RETINING

$

$

Not available

8

Homelite A07633

HANDLE ASSY.

$

$

Currently unavailable

9

Homelite 94065

SCREW, PAN HEAD (10-26 x 3/4")

Note: Torque Specs 15-20 In/Lbs, 1.7-2.3 Nm

$

$

Not available
