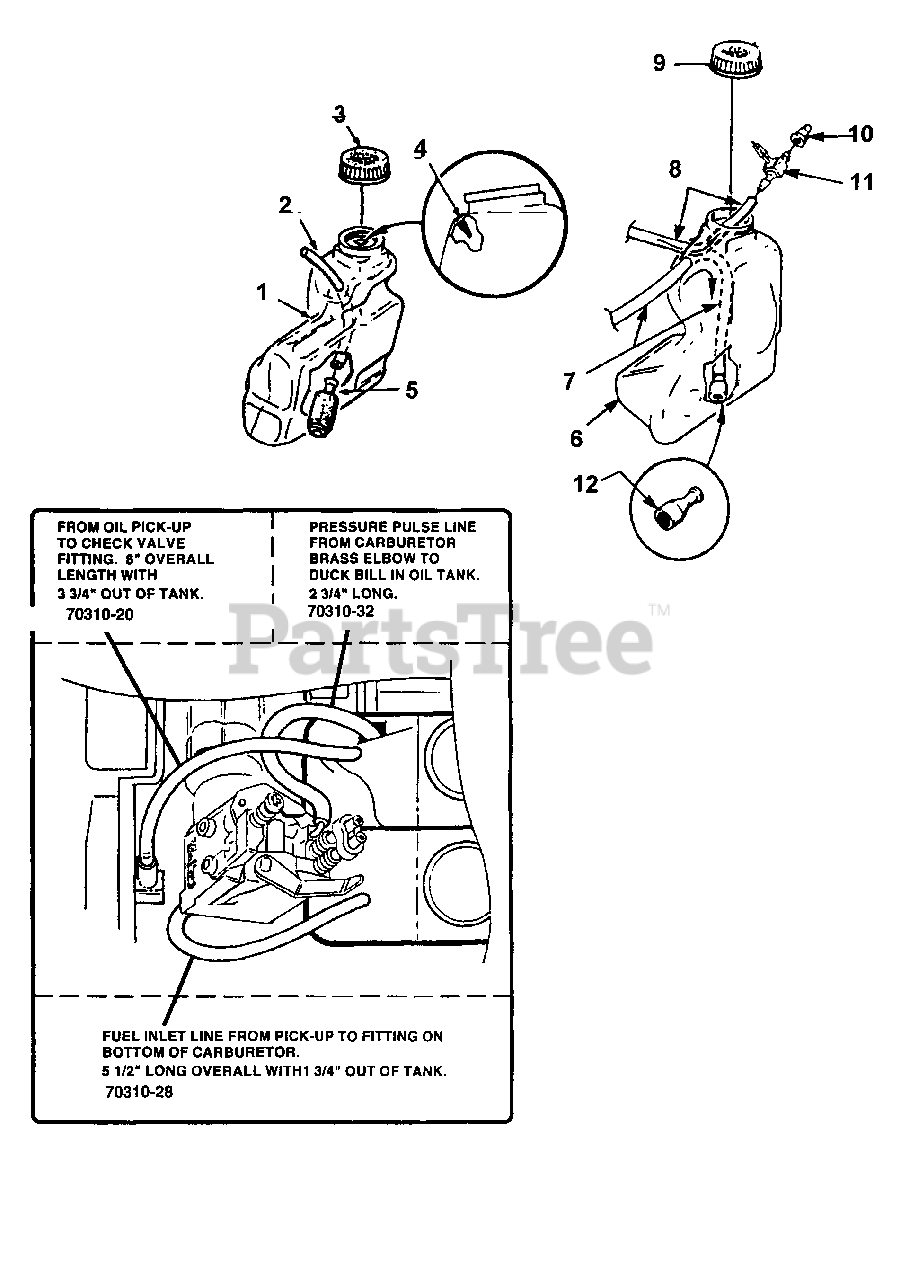

UT-26202 - Green Machine Chainsaw, 20cc Tanks Parts Diagram

Chainsaw, 20cc

Tanks Parts Diagram

  • Title

1

Homelite A06372

FUEL TANK

$

$

Currently unavailable

2

Homelite 7031028

TUBING, RUBBER (7")
(Superseded to UP04694)

$

$

Not available

3

Homelite DG97359

CAP, FUEL

$

$

Currently unavailable

4

Homelite 98819

VALVE, DUCK BILL

$

$

Not available

5

Homelite 49422

FILTER, FUEL
(Superseded to PS03380)

$

$

Not available

6

Homelite A07552

OIL TANK

$

$

Currently unavailable

7

Homelite 7031032

TUBING, RUBBER (8")
(Superseded to UP06561)

$

$

Not available

8

Homelite 7031010

TUBING, RUBBER (2 1/2")
(Superseded to 0745411)

$

$

Not available

9

Homelite A97359A

CAP, OIL
(Superseded to DA92701C)

$

$

Currently unavailable

10

Homelite 98819

VALVE, DUCK BILL

$

$

Not available

11

Homelite A07507

FITTING, VENT

$

$

Currently unavailable

12

Homelite A68593

FILTER, OIL

$

$

Not available

7031020

Homelite 7031020

TUBING 3-3/4"
(Superseded to 0745422)

$5.49

$

In Stock, only 1 left!

0

7031032

Homelite 7031032

TUBING 2-3/4"
(Superseded to UP06561)

$

$

Not available

7031028

Homelite 7031028

TUBING 5-1/2"
(Superseded to UP04694)

$

$

Not available
