UT-26203 - Green Machine Chainsaw, 30cc Carburetor - Muffler - Air Filter Parts Diagram

Chainsaw, 30cc

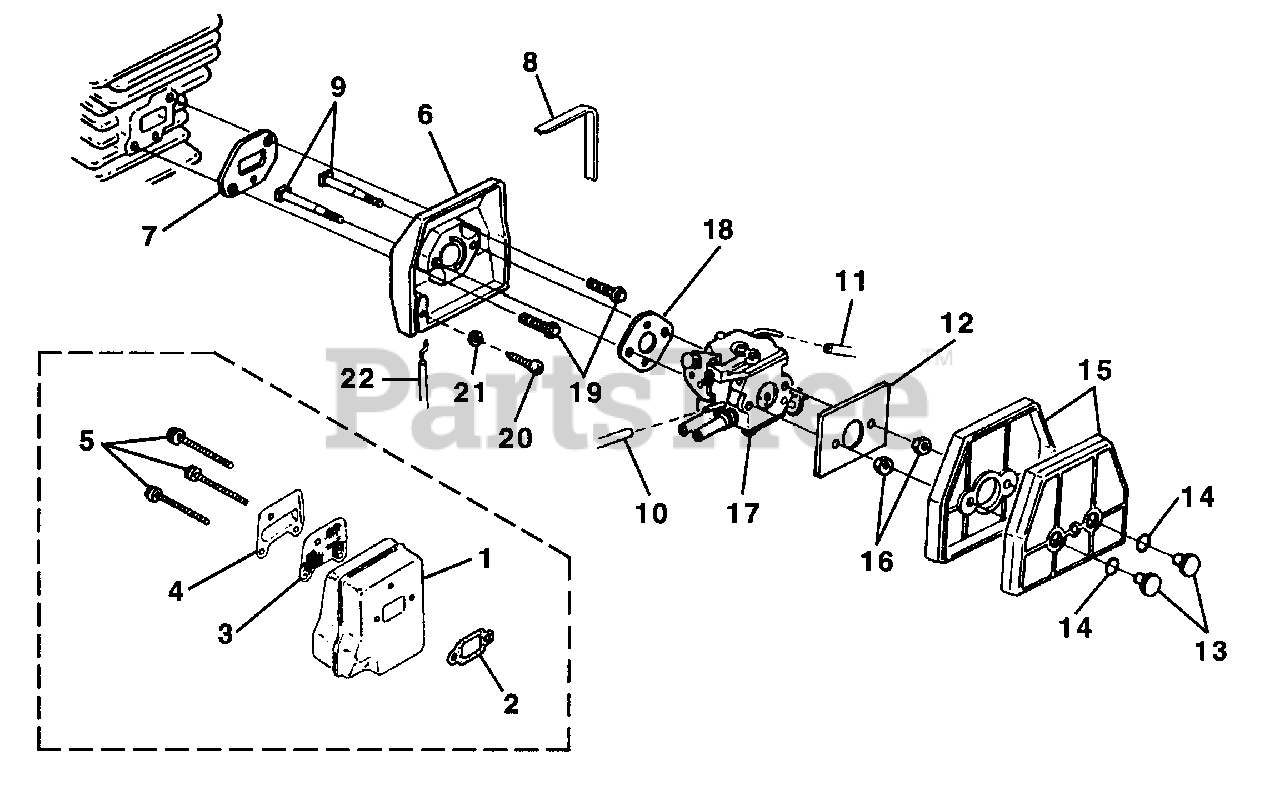

Carburetor - Muffler - Air Filter Parts Diagram

  • Title

1

Homelite A06652

MUFFLER-Complete

$

$

Currently unavailable

2

Homelite 01729

GASKET-Muffler
(Superseded to UP06624)

$

$

Not available

3

Homelite 01733

SCREEN-Spark Arrestor

$

$

Not available

4

Homelite 01734B

COVER-Exhaust

$

$

Not available

5

Homelite 88058

SCREW-Sems (10-24 x 2 1/4)

Note: Torque Specs: 55-65 In/Lbs; 6.3-7.5 Nm

$

$

Not available

6

Homelite A04512

SPACER-Carburetor

$24.99

$

In Stock, only 1 left!

0

7

Homelite 04508

GASKET-Carburetor Spacer

$

$

Not available

8

Homelite 03141

FOAM-Adhesive

$

$

Not available

9

Homelite 00905A

SCREW-Carburetor Retainer

$

$

Not available

10

Homelite 7031019

TUBING-Rubber (4 3/4")
(Superseded to 0745422)

$5.49

$

Usually ships in 3-7 days

0

11

Homelite 7031036

TUBING-Rubber (9")
(Superseded to UP06561)

$

$

Not available

12

Homelite 02695

RETAINER PLATE

$

$

Not available

13

Homelite 01178

RETAINER NUT-Filter

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 02718

"O" RING

$

$

Not available

15

Homelite A02582A

AIR FILTER
(Superseded to UP06788)

$

$

Currently unavailable

16

Homelite 81009

NUT-Hex (8-32)

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

17

Homelite A09203

CARBURETOR

$

$

Currently unavailable

18

Homelite 98339

GASKET-Carburetor
(Superseded to 900843001)

$

$

Not available

Homelite 06355

ROD-Choke
(Superseded to PS06355)

Note: (See "Engine Housing" illustration and parts list)

$

$

Not available

Homelite 86334

PIN-Cotter

Note: (See "Engine Housing" illustration and parts list)

$

$

Not available

19

Homelite 82430

SCREW-Mach. Hex Hd. (8-32 x 7/8")

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

20

Homelite 82513

SCREW-Thread Form. (6-19 x 1/2")

Note: Torque Specs: 8-12 In/Lbs; .9-14 Nm

$1.49

$

In Stock, Qty 5

0

21

Homelite 84123

WASHER-Flat (#6)

$

$

Not available

22

Homelite 00997D

CABLE-Throttle

$

$

Currently unavailable
