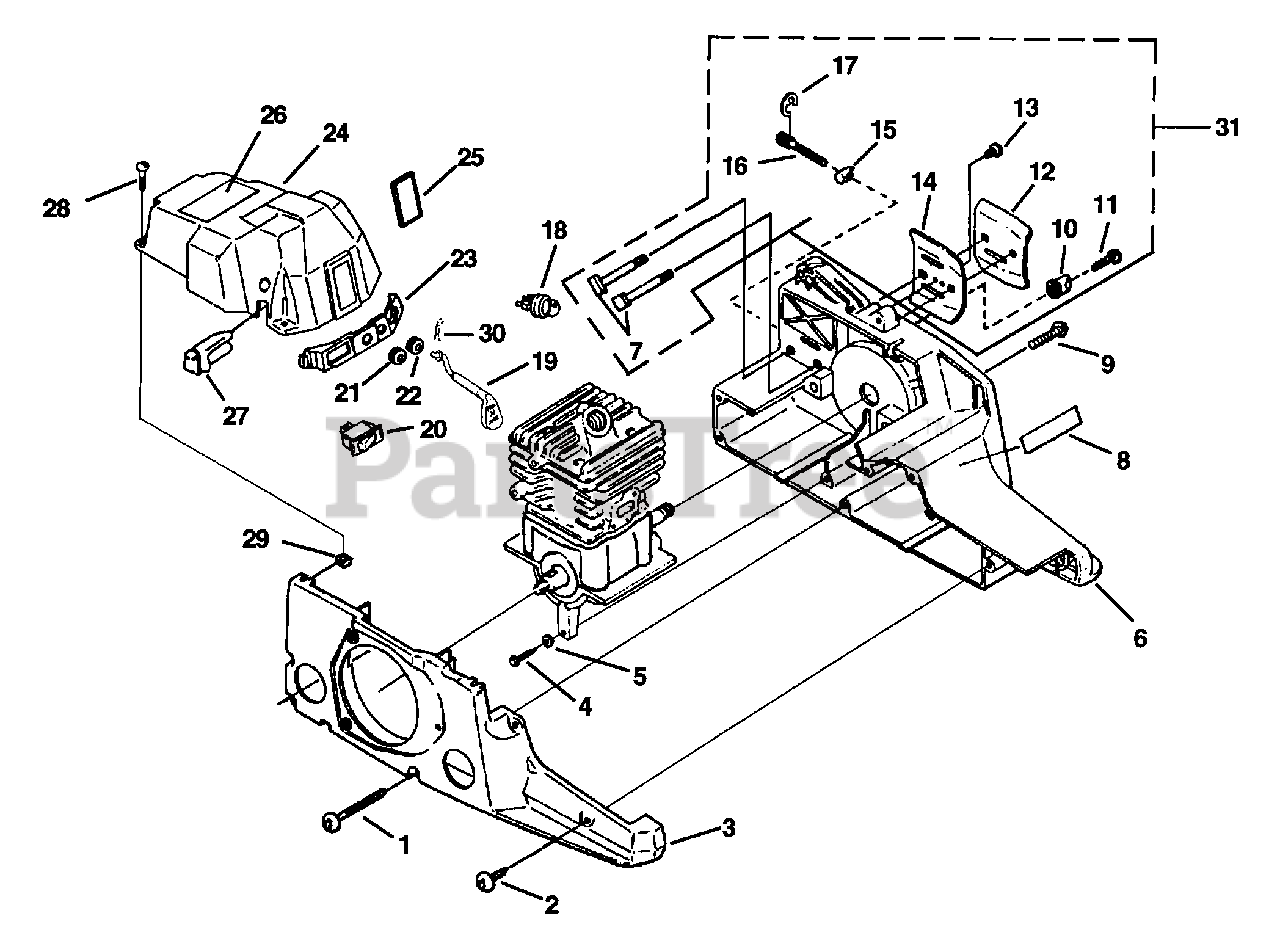

UT-26203 - Green Machine Chainsaw, 30cc Engine Housing Parts Diagram

Chainsaw, 30cc

Engine Housing Parts Diagram

  • Title

1

Homelite 82545

SCREW-Thread Form (8-16 x 1 3/4")

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$

$

Not available

2

Homelite 82546

SCREW-Thread Form. (8-16 x 5/8")
(Superseded to 660675001)

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 017155

HOUSING-Starter Side

$

$

Currently unavailable

4

Homelite 82588

SCREW-Thread Form. (10-14 x 1 1/8")

Note: Torque Specs: 65-85 In/Lbs; 7.5-9.8 Nm

$

$

Not available

5

Homelite 83056

WASHER-Lock

$

$

Not available

6

Homelite A037201

HOUSING-Drive Side

$

$

Currently unavailable

7

Homelite 03132

BOLT-Guide Bar

$

$

Not available

8

Homelite 01805A

DECAL-Panel

$

$

Not available

9

Homelite 80864

SCREW-Hex Hd. (12-24 x 1")
(Superseded to 808641)

Note: Torque Specs: 95-105 In/Lbs; 10.9-12.0 Nm

$

$

Not available

10

Homelite 95212

STOP-Chain

$

$

Not available

11

Homelite 82537

SCREW-Thread Form (10-14 x 7/8")

Note: Torque Specs: 30-50 In/Lbs; 3.5-5.7 Nm

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 01170

PLATE-Guide Bar (Outer)
(Superseded to UP06590)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 82513

SCREW-Thread Form. (6-19 x 1/2")

Note: Torque Specs: 12-18 In/Lbs; 1.4-2.1 Nm

$1.49

$

In Stock, Qty 5

0

14

Homelite 98278

PLATE-Guide Bar (Inner)

$

$

Not available

15

Homelite 651121

PIN-Adjusting
(Superseded to 651121A)

$

$

Not available

16

Homelite 03139

SCREW-Guide Bar Adjusting
(Superseded to UP06838)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite 69599

RING-Snap

$

$

Not available

18

Homelite 01183

BULB-Primer
(Superseded to 300780002)

$

$

Not available

19

Homelite 06355

ROD-Choke
(Superseded to PS06355)

$

$

Not available

20

Homelite 01802

SWITCH-Ign.
(Superseded to UP06786)

$

$

Not available

21

Homelite 69889

BOOT-Throttle Cable

$

$

Not available

22

Homelite 64862

GROMMET-Choke
(Superseded to 570219001)

$

$

Not available

23

Homelite 01169

PANEL-Control

$

$

Not available

24

Homelite A04583A

CYLINDER COVER

$

$

Not available

25

Homelite 01173A

SCREEN-Air Inlet

$

$

Currently unavailable

26

Homelite 02506

LABEL-Warning

$

$

Not available

27

Homelite 09019

GROMMET-Carburetor

$

$

Not available

28

Homelite 95792

SCREW-Round Hd. (10-24 x .710)

Note: Torque Specs: 15-25 In/Lbs; 1.7-2.9 Nm

$

$

Not available

29

Homelite 70810

NUT-Square (10-24)
(Superseded to UP06986)

$

$

Not available

30

Homelite 86334

PIN-Cotter

$

$

Not available

31

Homelite A06635

GUIDE BAR FASTENER KIT

$

$

Currently unavailable
