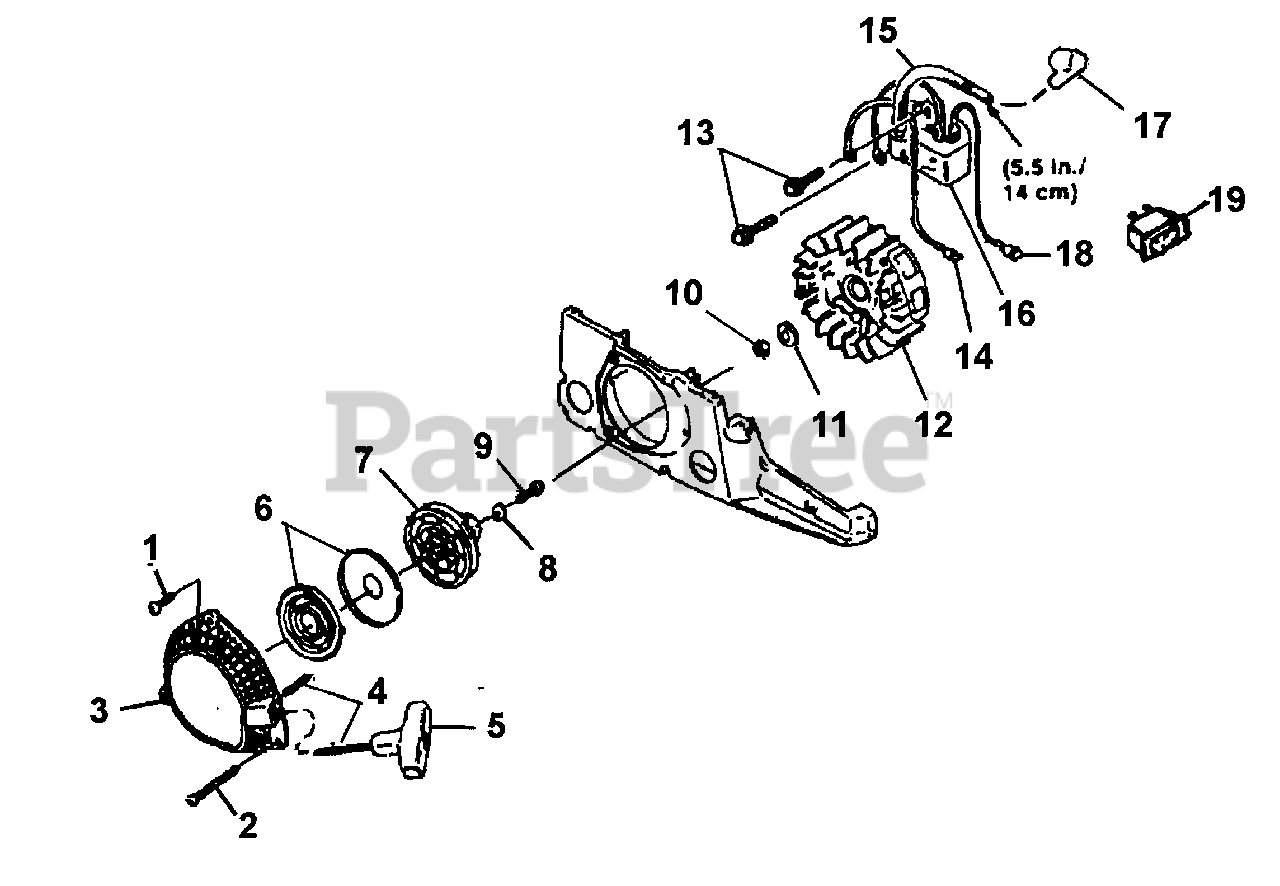

UT-26203 - Green Machine Chainsaw, 30cc Starter - Ignition Parts Diagram

Chainsaw, 30cc

Starter - Ignition Parts Diagram

  • Title

1

Homelite 82546

SCREW-Thread Form (8-16 x 5/8")
(Superseded to 660675001)

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 82566

SCREW Thread Form (8-16 x 2 1/4)

Note: Torque Specs: 20-40 In/Lbs; 2.3-4.6 Nm

$

$

Not available

3

Homelite A036502

STARTER - COMPLETE

$

$

Currently unavailable

4

Homelite 9789901

ROPE, STARTER (46")
(Superseded to 900849001)

$2.49

$

In Stock, only 1 left!

0

5

Homelite 02264

GRIP, STARTER
(Superseded to UP03832)

$

$

Not available

6

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

7

Homelite 97768B

PULLEY
(Superseded to UP05460)

$

$

Not available

8

Homelite 94062

WASHER

$

$

Not available

9

Homelite 82409

SCREW Plastite (10-14 x 5/8")

Note: Torque Specs: 30-45 In/Lbs; 3.4-5.2 Nm

$

$

Not available

10

Homelite 81124A

NUT, JAM

Note: Torque Specs: 200-250 In/Lbs; 23.0-28.8 Nm

$

$

Not available

11

Homelite 83102

WASHER LOCK (3/8)

$

$

Not available

12

Homelite A00994C

ROTOR & STARTER PAWLS

$

$

Not available

13

Homelite 88052

SCREW, Sems Hex Hd. (10-24 x 7/8")

Note: Torque Specs: 45-55 In/Lbs; 5.2-6.3 Nm

$5.99

$

Usually ships in 3-7 days

0

14

Homelite A01821A

IGNITION GROUND WIRE

$

$

Not available

15

Homelite 95098

SLEEVE, Insulating

$

$

Not available

16

Homelite A01546

IGNITION MODULE

$

$

Not available

17

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

18

Homelite A01822A

IGNITION WIRE

$

$

Currently unavailable

19

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available
