UT-26204 - Green Machine Chainsaw, 33cc Clutch - Chain Brake - Drive Case Cover Parts Diagram

Chainsaw, 33cc

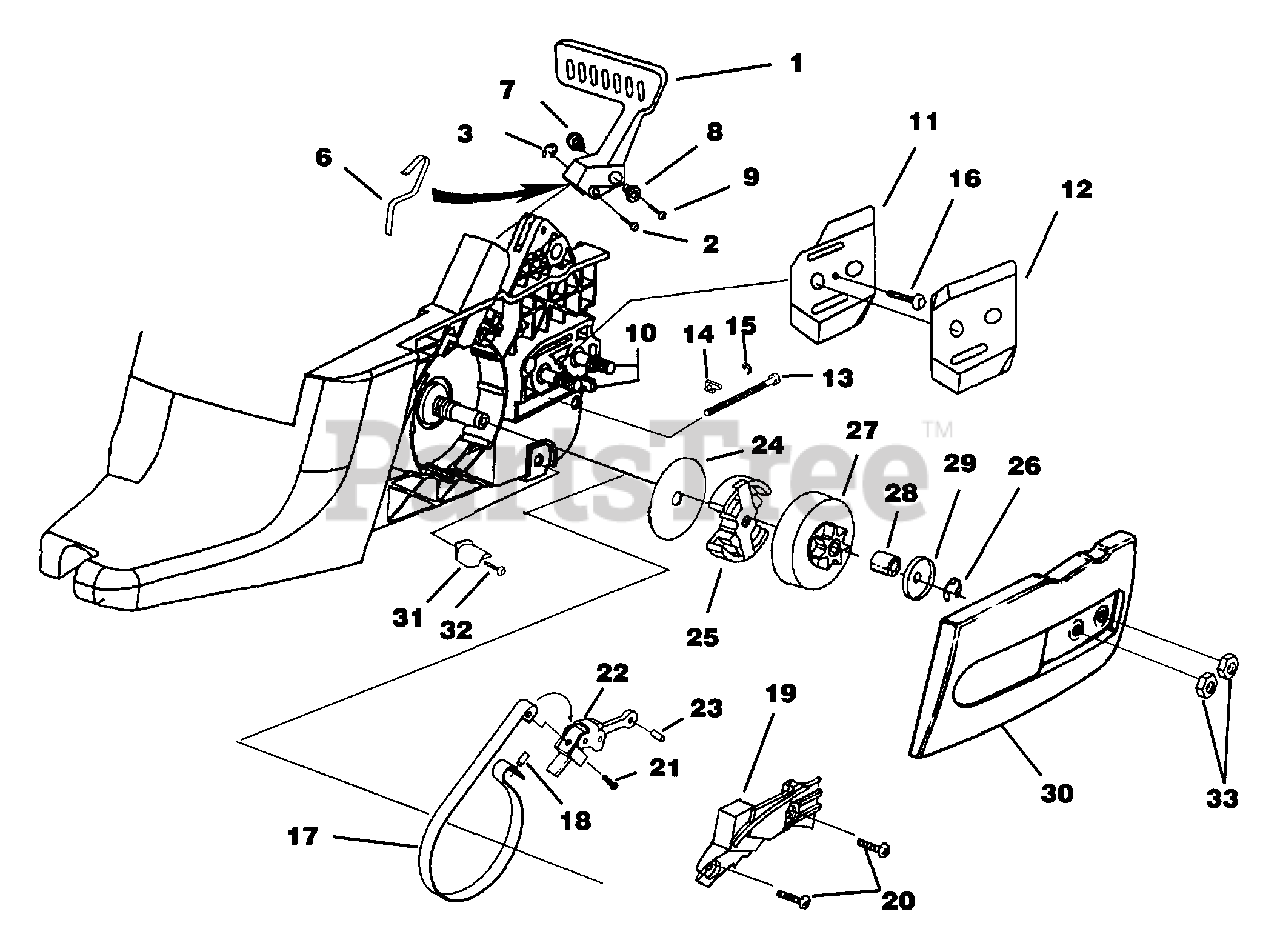

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title

1

Homelite A08681A

Hand Guard Kit
(Superseded to UP06568)

$

$

Not available

2

Homelite 07580

Hand Guard Actuating Pin
(Superseded to 620282001)

$2.49

$

In Stock, Qty 20+

0

3

Homelite 69599

Retaining Ring

$

$

Not available

4

Homelite 07406

Hand Guard Link
(Superseded to UP04207)

Note: (Not shown)(Non-chain brake units)

$8.99

$

Usually ships in 3-7 days

0

5

Homelite 95395A

Roll Pin
(Superseded to 671099001)

Note: (Not shown)(Non-chain brake units)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 07613

Spring, Handguard
(Superseded to 631052001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 07393

Pivot, L.H.
(Superseded to 671097001)

$2.49

$

In Stock, only 4 left!

0

8

Homelite 07392

Pivot, R.H.
(Superseded to 671096001)

$2.49

$

In Stock, only 4 left!

0

9

Homelite 82624

Screw, Hex Socket Hd. (8-32 x 5/8")
(Superseded to 660635001)

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$2.49

$

In Stock, only 1 left!

0

10

Homelite 04945

Guide Bar Bolt
(Superseded to PS04881)

$

$

Not available

Homelite A08678

Guide Bar Adjusting Kit
(Superseded to UP06966)

$

$

Not available

11

Homelite 07404A

Plate, Guide Bar
(Superseded to 631036001)

$

$

Not available

12

Homelite 07405A

Plate, Guide Bar
(Superseded to 631038001)

$

$

Not available

13

Homelite 06844

Screw, Guide Bar Adjusting

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 06842

Pin, Guide Bar Adjusting
(Superseded to 631037001)

$2.49

$

In Stock, only 2 left!

0

15

Homelite 69599

Ring, Retaining

$

$

Not available

16

Homelite 82513

Screw, Thread Form (6-19 x 1/2")

Note: Torque Specs: 8-18 In/Lbs; .9-2.0 Nm

$2.49

$

In Stock, only 4 left!

0

17

Homelite A086802

Chain Brake Kit

$

$

Currently unavailable

18

Homelite 06672

Pin, Roll
(Superseded to 671095001)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 068433

Cover, Chain Brake

$

$

Currently unavailable

20

Homelite 82513

Screw, Pan Hd (6-19 x 1/2")

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$2.49

$

In Stock, only 4 left!

0

21

Homelite 82623

Screw, Pan Hd. (8-16 x .320)
(Superseded to 660634001)

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.4 Nm

$2.49

$

In Stock, Qty 20+

0

22

Homelite A07612

Chain Brake Link
(Superseded to A07612A)

$

$

Not available

23

Homelite 95395A

Pin, Roll
(Superseded to 671099001)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 04940

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 2 left!

0

25

Homelite A09023

Clutch & Hardware
(Superseded to 300960001)

$

$

Not available

26

Homelite 08981

Ring, Retaining

$5.99

$

In Stock, only 2 left!

0

27

Homelite A09024

Sprocket, Drum & Hardware
(Superseded to UP06967A)

$57.99

$

In Stock, only 2 left!

0

28

Homelite 04927

Bearing, Needle
(Superseded to PS04669)

$7.49

$

In Stock, only 1 left!

0

26

Homelite 08981

Ring, Retaining

$5.99

$

In Stock, only 2 left!

0

29

Homelite 04939A

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

30

Homelite A086732

Drive Case Cover
(Superseded to UP04554)

$

$

Not available

31

Homelite 95212

Stop, Chain

$

$

Not available

32

Homelite 82563

Screw, Thread Form (10-14 x 3/4")

Note: Torque Specs: 30-50 In/Lbs; 3.4-5.6 Nm

$2.49

$

In Stock, Qty 6

0

33

Homelite 81196

Nut, Hex
(Superseded to 671076001)

Note: Torque Specs: Hand Tight

$2.49

$

In Stock, only 3 left!

0
