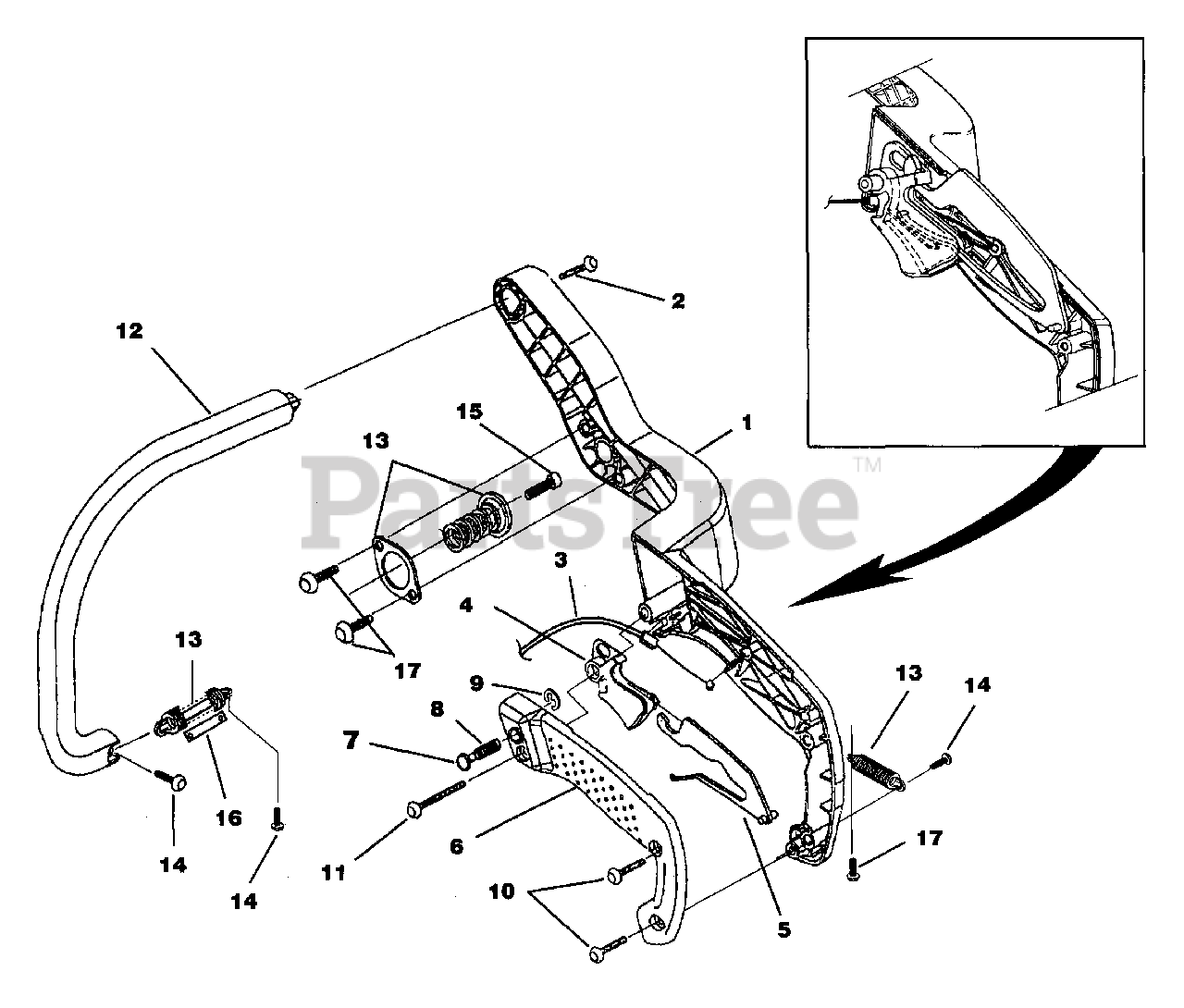

UT-26204 - Green Machine Chainsaw, 33cc Handles Parts Diagram

Chainsaw, 33cc

Handles Parts Diagram

  • Title

1

Homelite A08675

Rear Handle Kit
(Superseded to UP06977A)

$

$

Not available

2

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")

Note: Torque Specs: 40-50 In/lbs; 4.5-5.6 Nm

$5.99

$

Usually ships in 3-7 days

0

3

Homelite A07596A

Throttle Cable
(Superseded to UP04218)

$

$

Not available

4

Homelite 07382A

Trigger, Throttle
(Superseded to 984354001)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 07383

Throttle Lock Out
(Superseded to PS03966)

$

$

Not available

6

Homelite A08683

Handle Cover Kit
(Superseded to A08683A)

$

$

Not available

7

Homelite 07388

Throttle Lock Pin
(Superseded to PS03971)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 08898

Spring, Compression
(Superseded to 671073001)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 58409

Ring, Retainer

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 82563

Screw, Thread Form (10-14 x 3/4")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$2.49

$

In Stock, Qty 5

0

11

Homelite 82622

Screw, Thread Form (10-14 x 1 3/8")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$2.99

$

Usually ships in 3-7 days

0

12

Homelite A08695

Front Handle Kit
(Superseded to UP06973)

$58.99

$

Usually ships in 3-7 days

0

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")

Note: (See No. 2 above)

$5.99

$

Usually ships in 3-7 days

0

13

Homelite A08677

Isolator Kit
(Superseded to UP08007A)

$

$

Not available

14

Homelite 82621

Screw, Truss Hd. (10-14 x 5/8")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$

$

Not available

15

Homelite 82597

Screw, Truss Hd. (10-24 x 5/8")
(Superseded to 660630001)

Note: Torque Specs: 40-50 In/lbs; 4.5-5.6 Nm

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 01812A

Limiter, Isolator
(Superseded to 631050001)

$

$

Not available

17

Homelite 82541

Screw, Thread Form (10-14 x 1/2")

Note: Torque Specs: 30-40 In/lbs; 3.4-4.5 Nm

$2.49

$

In Stock, only 3 left!

0
