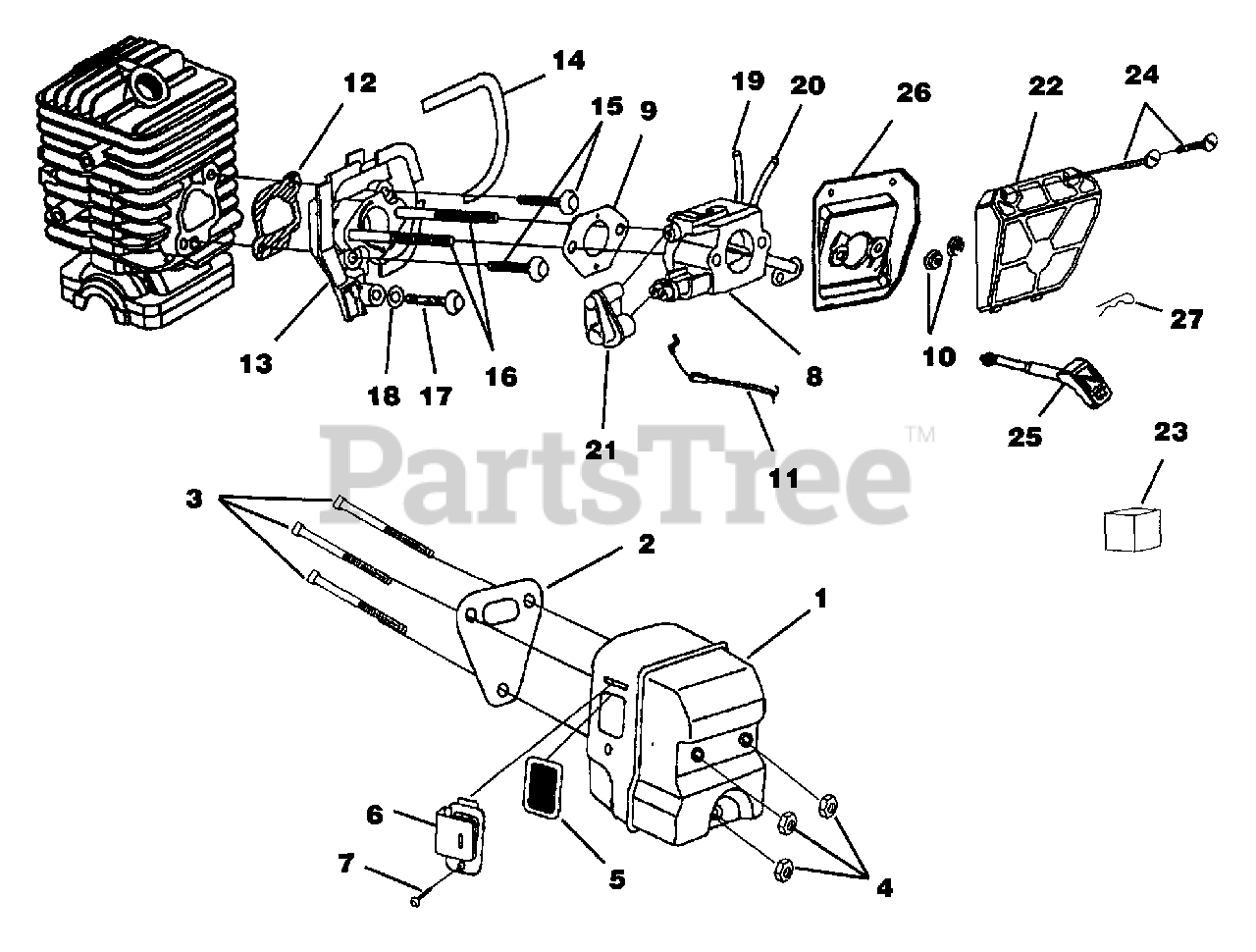

UT-26205 - Green Machine Chainsaw, 38cc Carburetor - Muffler - Air Filter Parts Diagram

Chainsaw, 38cc

Carburetor - Muffler - Air Filter Parts Diagram

  • Title

1

Homelite A08694

Muffler Kit
(Superseded to UP06752)

$

$

Not available

2

Homelite 06839

Muffler Gasket
(Superseded to 900848001)

$1.49

$

In Stock, only 2 left!

0

3

Homelite 07592

Screw-Square Hd.
(Superseded to UP04049)

$

$

Not available

4

Homelite 81206

Nut-Locking Hex (10-32)
(Superseded to 671079001)

Note: Torque Specs: 50-60 In/Lbs; 5.6-6.7 Nm

$1.49

$

In Stock, Qty 16

0

5

Homelite 07394

Screen, Spark
(Superseded to A07402)

$

$

Not available

6

Homelite 07396A

Deflector, Muffler

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 95922

Screw
(Superseded to 660624001)

$

$

Not available

8

Homelite A08674

Carburetor Kit
(Superseded to UP06737)

$

$

Not available

9

Homelite 98339

Carburetor Gasket
(Superseded to 900843001)

$

$

Not available

10

Homelite 07589

Flange Nut (10-24)

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$1.49

$

In Stock, only 1 left!

0

11

Homelite A07596A

Throttle Cable
(Superseded to UP04218)

$

$

Not available

12

Homelite 06840A

Gasket, Heat Dam

$

$

Not available

13

Homelite 04916

Heat Dam

$

$

Not available

14

Homelite 06873

Seal, Heat Dam

$

$

Not available

15

Homelite 82539

Screw, Truss Hd. Taptite (10-24 x 7/8")
(Superseded to 660616001)

Note: Torque Specs: 45-55 In/Lbs; 5.0-6.2 Nm

$

$

Not available

16

Homelite 06852

Screw, Carburetor

$2.99

$

In Stock, only 1 left!

0

17

Homelite 82541

Screw, Thread Form (10-14 x 1/2")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$1.49

$

In Stock, only 3 left!

0

18

Homelite 12789

Washer, Retaining

$

$

Not available

19

Homelite 0745434

Fuel Line (Tank to Carburetor 8 1/2")

$

$

Not available

20

Homelite 0745416

Fuel Line (Carburetor to Purge Bulb 4")

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 04907

Carburetor Grommet

$

$

Not available

Homelite A08693

Air Filter Kit
(Superseded to UP06753)

$

$

Not available

22

Homelite 04938

Air Filter Cover

$

$

Not available

23

Homelite 07407

Pre Filter (In engine housing)

$

$

Not available

24

Homelite 82617

Screw-Slotted Pan Hd. (8-16 x 5/8")

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$1.49

$

In Stock, only 2 left!

0

25

Homelite 07579

Rod, Choke
(Superseded to PS06280)

$

$

Not available

26

Homelite 04937

Air Filter Plate

$

$

Not available

27

Homelite 08939

Spring Clip (Choke Rod)

$

$

Not available
