UT-26205 - Green Machine Chainsaw, 38cc Engine Housing - Fuel Tank - Oil Tank Parts Diagram

Chainsaw, 38cc

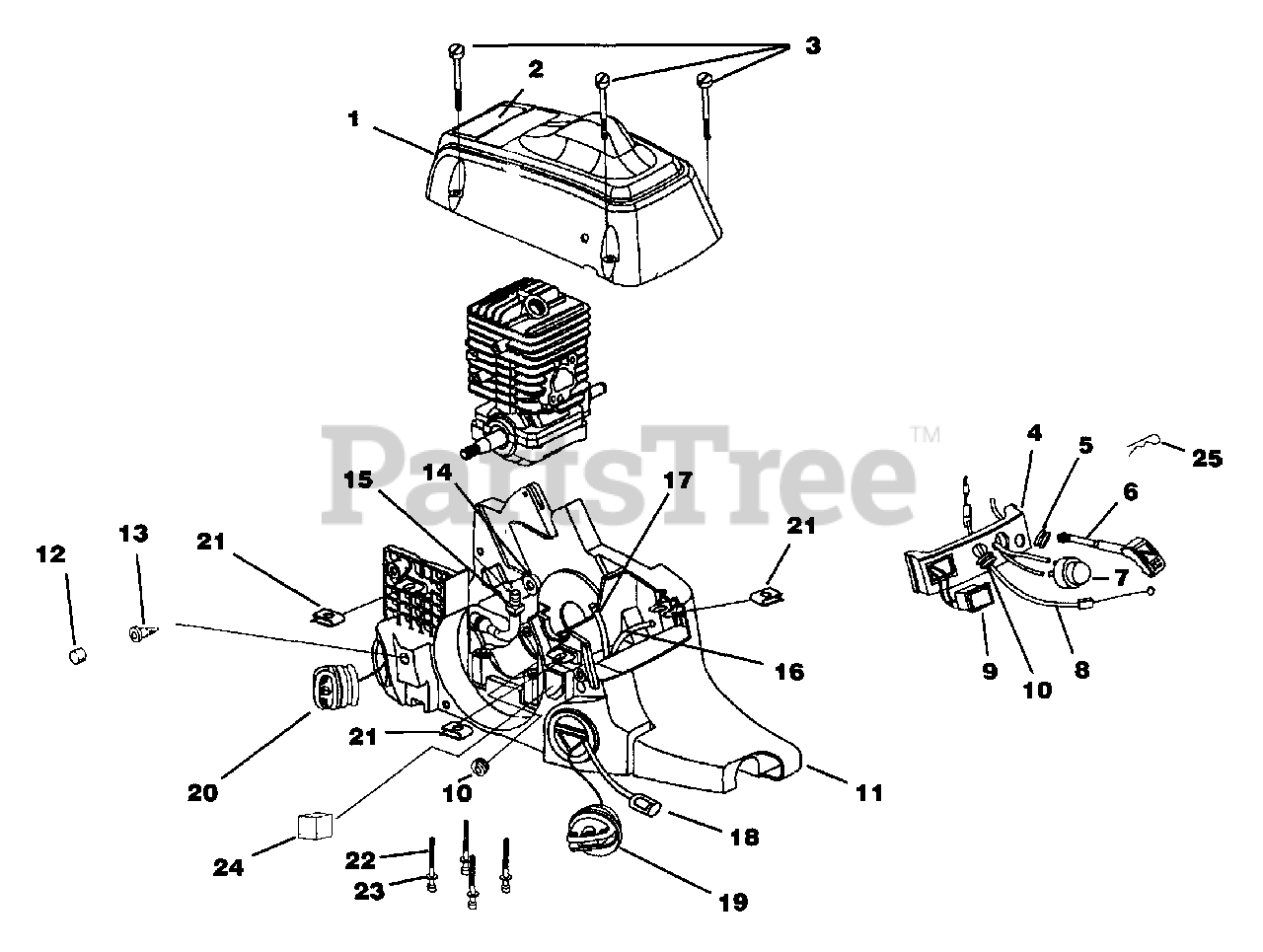

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title

1

Homelite A08692

Cylinder Cover Kit
(Superseded to A08692A)

$

$

Not available

2

Homelite 07566

Safety Decal
(Superseded to 940299425)

$

$

Not available

3

Homelite 07597

Screw-Slotted Pan Hd.
(Superseded to 660636001)

Note: Torque Specs: 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

4

Homelite 073793

Control Panel

$

$

Currently unavailable

5

Homelite 64862

Grommet
(Superseded to 570219001)

$

$

Not available

6

Homelite 07579

Rod, Choke
(Superseded to PS06280)

$

$

Not available

7

Homelite 01183

Bulb, Air Purge
(Superseded to 300780002)

$

$

Not available

8

Homelite A07596A

Throttle Cable
(Superseded to UP04218)

$

$

Not available

9

Homelite 07385

Switch, Rocker
(Superseded to 760661001)

$

$

Not available

10

Homelite 07587

Grommet - Split
(Superseded to 570227001)

$1.49

$

In Stock, only 2 left!

0

11

Homelite A09007

Engine Housing Assembly

$

$

Not available

12

Homelite 07403

Element, Filter (Bronze)
(Superseded to 671088001)

$

$

Not available

13

Homelite 03134

Duck Bill Valve
(Superseded to 560955001)

$1.99

$

In Stock, Qty 10

0

14

Homelite 06841

Oil Outlet Grommet
(Superseded to 570226001)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 06848

Oil Intake Tube
(Superseded to UP04048)

$

$

Not available

16

Homelite 0745422

Rubber Tubing (5 1/2")

$5.49

$

In Stock, only 1 left!

0

17

Homelite 0745434

Rubber Tubing (8 1/2")

$

$

Not available

18

Homelite 49422

Fuel Filter
(Superseded to PS03380)

$

$

Not available

19

Homelite DG07590

Fuel Cap w/Retainer

$

$

Not available

20

Homelite DG07591

Oil Cap w/Retainer

$10.99

$

Usually ships in 3-7 days

0

Homelite A68593

Oil Filter

Note: (Not Shown)

$

$

Not available

Homelite 04945

Guide Bar Bolt
(Superseded to PS04881)

Note: (Not Shown)

$

$

Not available

21

Homelite 07598

Speed Nut ("U-Type")

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

Note: Torque Specs: 65-76 In/Lbs; 7.3-8.5 Nm

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 84008

Washer
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 07407

Pre Filter

$

$

Not available

25

Homelite 08939

Spring Clip (Choke Rod)

$

$

Not available
