UT-26SS EMC (090330020) - Homelite String Trimmer, 26cc, Rev 03 (2018-12) Figure B Parts Diagram

String Trimmer, 26cc, Rev 03

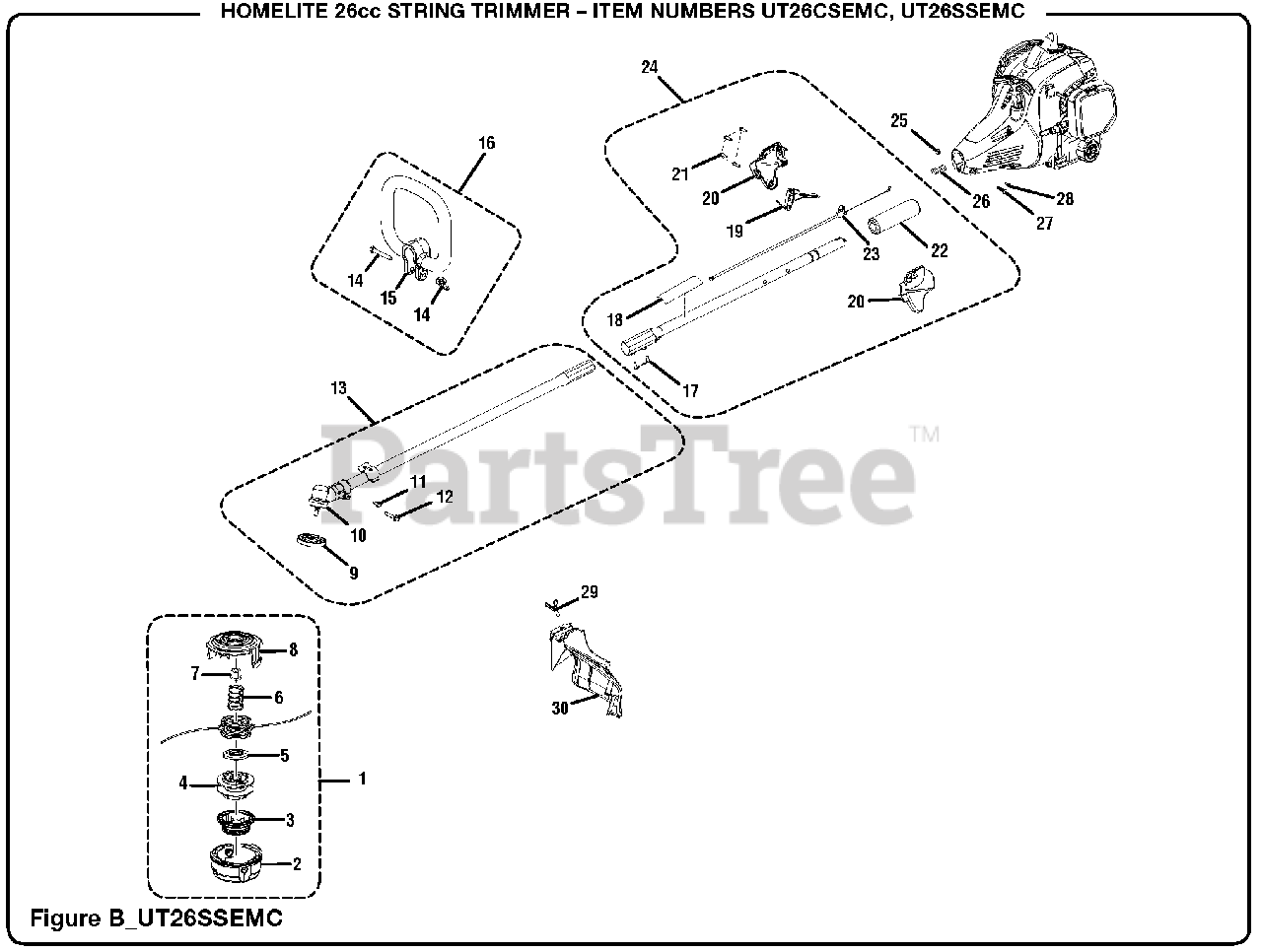

Figure B Parts Diagram

  • Title

1

Homelite 311759012

Trimmer Head Assembly

Note: (Inc. Key Nos. 2-8)

$16.99

$

In Stock, Qty 8

0

2

Homelite 530366001

Lower Housing

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 530455001

Bump Knob (Gray)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 530670001

Spool

$1.99

$

In Stock, only 1 left!

0

5

Homelite 529803001

String Guide

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678749001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

7

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$1.49

$

In Stock, only 4 left!

0

8

Homelite 530001004

Upper Housing

$2.49

$

In Stock, only 3 left!

0

9

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 308210009

Gear Head

$28.99

$

Usually ships in 3-7 days

0

11

Homelite 660736001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)
(Superseded to 983774003)

$1.49

$

In Stock, only 1 left!

0

12

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Hd.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 311101002

Lower Boom Assembly

Note: (Inc. Key Nos. 9-12)

$45.99

$

Usually ships in 3-7 days

0

14

Homelite 205012001

Fastener Kit

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 518674001

Front Handle

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 308741001

Front Handle Assembly

Note: (Inc. Key Nos. 14-15)

$7.49

$

In Stock, only 1 left!

0

17

Homelite 661848001

Set Screw (M5 x 10 mm, Hex Soc. Hd.)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 940657168

Icon Warning Label

$

$

Not available

19

Homelite 533909001

Throttle Trigger

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 310831007

Handle Assembly

Note: (Inc. Key Nos. 19 and 21)

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 660526003

Screw (M4 x 20 mm, T20 Torx Pan Hd. T.Fl.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 570087005

Foam Grip

$1.49

$

In Stock, only 3 left!

0

23

Homelite 307196007

Throttle Cable

$2.49

$

In Stock, only 2 left!

0

24

Homelite 205039001

Boom Assembly

Note: (Inc. Key Nos. 17-23)

$24.99

$

Usually ships in 3-7 days

0

25

Homelite 678029002

Hex Nut (M6)

$1.49

$

In Stock, Qty 9

0

26

Homelite 679974001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 660697002

Screw (M6 x 20 mm, T27 Torx Button Hd.)

$1.49

$

In Stock, only 1 left!

0

28

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Round Hd.)

$1.49

$

In Stock, only 3 left!

0

29

Homelite 660886001

Wing Nut (1/4-20)

$1.49

$

In Stock, only 2 left!

0

30

Homelite 308473005

Grass Deflector Assembly

Note: (Inc. Key No. 29)

$9.99

$

Usually ships in 3-7 days

0
