UT-30091 - Homelite HC Walk-Behind Mower Mower Parts Diagram

HC Walk-Behind Mower

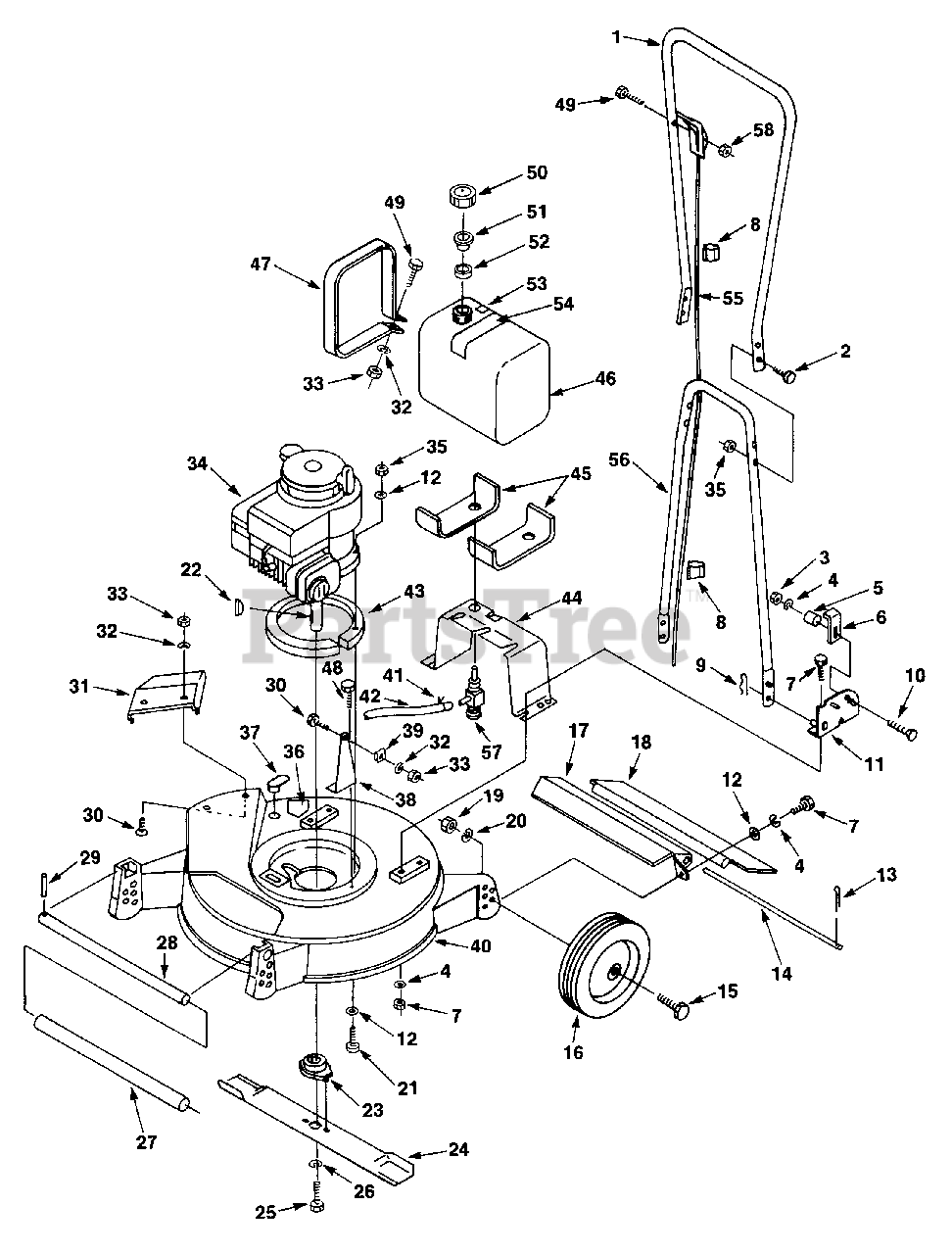

Mower Parts Diagram

  • Title

1

Homelite JA0055222

HANDLE- Upper

$

$

Currently unavailable

2

Homelite JA440086

BOLT- Sq. neck (5/16-18 x 1 1/2")

$2.99

$

Usually ships in 3-7 days

0

3

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

4

Homelite JA446136

WASHER- Lock (5/16")
(Superseded to UP03791)

$

$

Not available

5

Homelite JA0055234

STOP- Hanger

$

$

Currently unavailable

6

Homelite JA0055229

BRACKET- Stop

$

$

Currently unavailable

7

Homelite JA400188

SCREW- Hex hd. (5/16-18 x 1")
(Superseded to 80085)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite JA0055226

CLIP- Handle

$

$

Currently unavailable

9

Homelite JA460318

HAIR PIN- Cotter

$

$

Currently unavailable

10

Homelite JA440084

BOLT- Sq. Neck (5/16-18 x 1 1/4")

$

$

Currently unavailable

11

Homelite JA0055232

BRACKET- R.H.

$

$

Currently unavailable

Homelite JA0055233

BRACKET- L.H.

$

$

Currently unavailable

12

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

13

Homelite JA453009

PIN- Cotter
(Superseded to UP07173)

$

$

Not available

14

Homelite JA0055216

ROD- Drag flap

$

$

Currently unavailable

15

Homelite JA400420

SCREW- Hex hd. (1/2-20 x 3 1/2")

$

$

Currently unavailable

16

Homelite JA0055220

WHEEL & TIRE ASSEMBLY

$

$

Currently unavailable

17

Homelite JA0055214

DEFLECTOR

$

$

Currently unavailable

18

Homelite JA0055215

FLAP- Drag

$

$

Not available

19

Homelite JA443118

NUT- Hex (1/2-20)

$

$

Currently unavailable

20

Homelite JA446154

WASHER- Lock (1/2")

$

$

Not available

21

Homelite JA400200

SCREW- Hex hd. (5/16-18 x 2 1/2")

$

$

Not available

22

Homelite JA463009

KEY- Morton

$

$

Currently unavailable

23

Homelite JA992137

ADAPTER- Blade

$

$

Currently unavailable

24

Homelite JA392422

BAR- Cutter
(Superseded to JA993820)

$23.99

$

Usually ships in 3-7 days

0

25

Homelite JA401209

SCREW- Hex hd. (3/8-24 x 1 1/2")

$

$

Currently unavailable

26

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

27

Homelite JA005529

BUMPER- Front

$

$

Currently unavailable

28

Homelite JA0055213

ROD- Front

$

$

Currently unavailable

29

Homelite JA461361

PIN- Roll

$

$

Not available

30

Homelite JA404018

SCREW- Hex hd. (1/4-20 x 3/4")

$2.49

$

Usually ships in 3-7 days

0

31

Homelite JA0055223

SHIELD- Deflector

$

$

Currently unavailable

32

Homelite JA446130

WASHER- Lock (1/4")

$

$

Not available

33

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

34

Homelite JA993722

ENGINE- 5 H.P.

$

$

Currently unavailable

35

Homelite JA444718

NUT- Hex (5/16-18)

$

$

Not available

36

Homelite JA339460

DECAL- Warning

$

$

Not available

37

Homelite JA342549

PLUG- Wash hole

$

$

Currently unavailable

38

Homelite JA0055219

BRACKET- Spacer

$

$

Currently unavailable

39

Homelite JA0055227

CLAMP- Throttle

$

$

Currently unavailable

40

Homelite JA993723

DECK

Note: (Incl. #36)

$

$

Currently unavailable

41

Homelite JA472801

RING- Fuel line

$

$

Currently unavailable

42

Homelite JA0055210

LINE- Fuel

$

$

Not available

43

Homelite JA992421

SPACER- Engine

$

$

Currently unavailable

44

Homelite JA0055231

SUPPORT- Tank

$

$

Currently unavailable

45

Homelite JA0055224

SUPPORT- Tank

$

$

Currently unavailable

46

Homelite JA0055212

TANK- Fuel

Note: (Incl. #45 & 50)

$

$

Not available

47

Homelite JA0055225

STRAP- Fuel tank

$

$

Currently unavailable

48

Homelite JA409904

SCREW- Hex hd. (10-24 x 1/2")

$

$

Currently unavailable

49

Homelite JA400116

SCREW- Hex hd. (1/4-20 x 1 1/2")

$

$

Not available

50

Homelite JA0055211

CAP- Fuel tank

Note: (Incl. #51 & 52)

$

$

Currently unavailable

51

Homelite JA153465

BAFFLE- Fuel cap

$

$

Currently unavailable

52

Homelite JA344156

GASKET- Fuel cap

$23.99

$

Usually ships in 3-7 days

0

53

Homelite JA0055218

DECAL- Refueling Instruction

$

$

Currently unavailable

54

Homelite JA0055217

DECAL- Engine Instruction

$

$

Currently unavailable

55

Homelite JA991452

CONTROL- Throttle

$

$

Currently unavailable

56

Homelite JA0055221

HANDLE- Lower

$

$

Currently unavailable

57

Homelite JA0055228

VALVE- Shut off

$

$

Currently unavailable

58

Homelite JA444708

NUT- Hex locking (1/4-20)

$

$

Currently unavailable

Homelite JA0055246

GRASS CATCHER

$

$

Currently unavailable

Homelite JA502397

REPLACEMENT BAG

$

$

Currently unavailable
