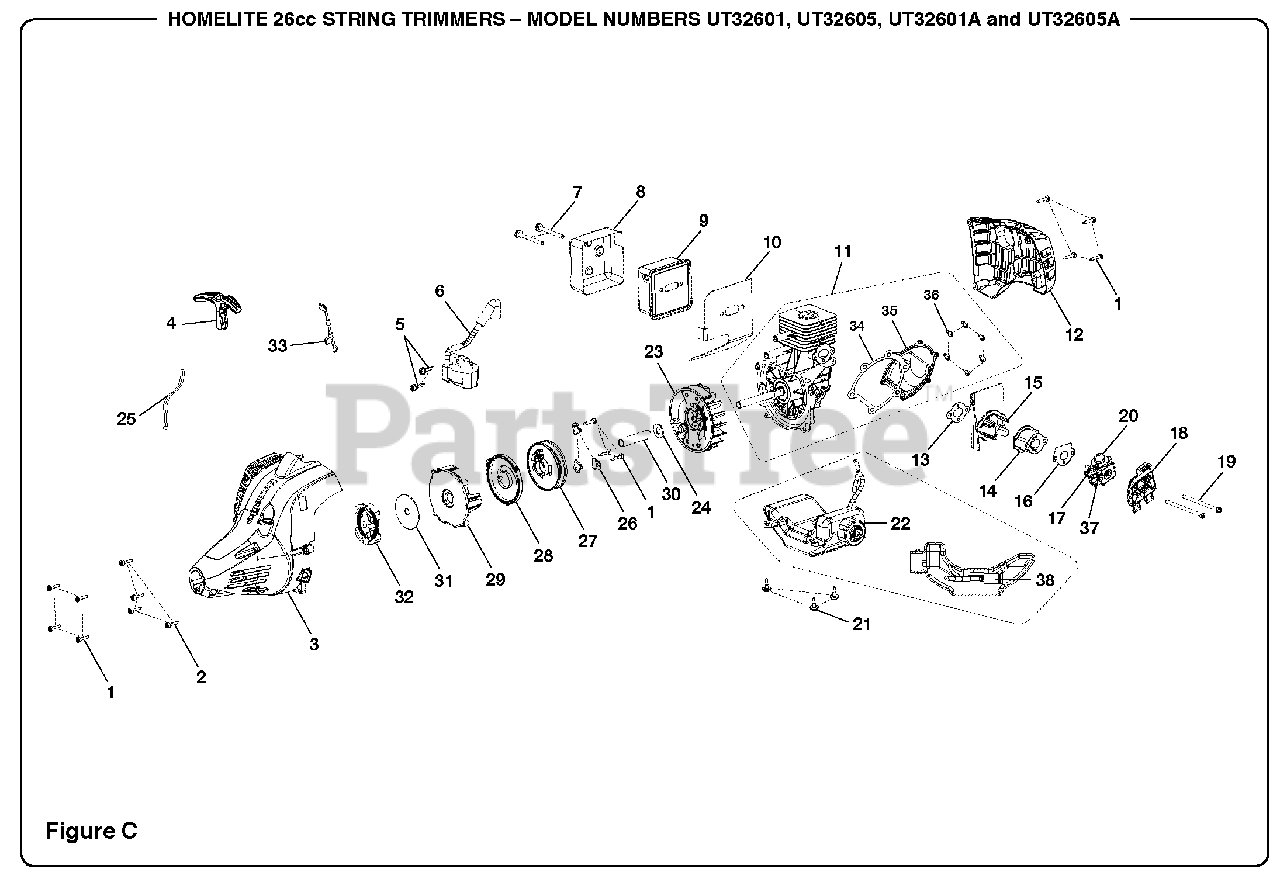

UT-32601-A - Homelite String Trimmer, 26cc Figure C Parts Diagram

String Trimmer, 26cc

Figure C Parts Diagram

  • Title

1

Homelite 660466001

Screw (M4 x 18 mm)

$1.49

$

In Stock, Qty 6

0

2

Homelite 660970001

Screw (M4 x 16 mm)

$1.49

$

In Stock, only 1 left!

0

3

Homelite 310829001

Front Housing Assembly

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 511731001

Pulley Handle
(Superseded to PS06114)

$

$

Not available

5

Homelite 660968001

Screw (M4 x 19 mm)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 850108009

Ignition Module

$

$

Not available

7

Homelite 660638003

Screw (10-24 x 2-3/16 in.)
(Superseded to PS03999)

$

$

Not available

8

Homelite 638442001

Heat Shield

$2.99

$

In Stock, only 2 left!

0

9

Homelite 308990016

Muffler Assembly (Non "A" versions)

$28.99

$

Usually ships in 3-7 days

0

Homelite 300748027

Muffler Assembly ("A" versions)

$

$

Currently unavailable

10

Homelite 901452011

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 308892006

Short Block Assembly

$

$

Not available

12

Homelite 519824001

Rear Housing
(Superseded to 519824002)

$2.49

$

In Stock, only 1 left!

0

13

Homelite 901551001

Intake Gasket

$1.49

$

In Stock, Qty 19

0

14

Homelite 518497001

Heat Dam

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 521808001

Heat Dam Deflector

$1.49

$

In Stock, Qty 5

0

16

Homelite 901552001

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

17

Homelite 308054043

Carburetor Assembly

$

$

Not available

18

Homelite 518766001

Air Box Base

$

$

Not available

19

Homelite 660454007

Screw (M5 x 79 mm)

$1.49

$

In Stock, Qty 5

0

20

Homelite 561635001

Primer Bulb

$4.99

$

In Stock, Qty 8

0

21

Homelite 660970002

Screw (M4 x 10 mm Shoulder)

$1.49

$

In Stock, only 4 left!

0

22

Homelite 308675001

Fuel Tank Assembly w/Cap
(Superseded to 308675051)

$

$

Not available

23

Homelite 308811006

Flywheel Assembly

$19.99

$

Usually ships in 3-7 days

0

24

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

25

Homelite 900849002

Starter Rope (42 in.)

$1.49

$

In Stock, Qty 6

0

26

Homelite 638389001

Pulley Retainer

$1.49

$

In Stock, only 4 left!

0

27

Homelite 310022004

Starter Pulley Assembly

$7.49

$

Usually ships in 3-7 days

0

28

Homelite 638033001

Spring & Container Assembly

$3.49

$

In Stock, only 3 left!

0

29

Homelite 518692001

Starter Housing

$1.49

$

In Stock, Qty 6

0

30

Homelite 638284006

Spacer Tube

$1.49

$

In Stock, only 2 left!

0

31

Homelite 638090001

Clutch Washer

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 300960002

Clutch Assembly

$6.49

$

Usually ships in 3-7 days

0

33

Homelite 308863032

Lead Assembly

$

$

Not available

34

Homelite 901550001

Gasket
(Superseded to 901550003)

$1.49

$

In Stock, Qty 5

0

35

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$3.99

$

Usually ships in 3-7 days

0

36

Homelite 660925003

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 521523001

Choke Lever

$

$

Not available

38

Homelite 300759005

Fuel Filter

$5.99

$

Usually ships in 3-7 days

0
