UT-36052 - Homelite 42" Rotary Mower Attachment 42" Mower Parts Diagram

42" Rotary Mower Attachment

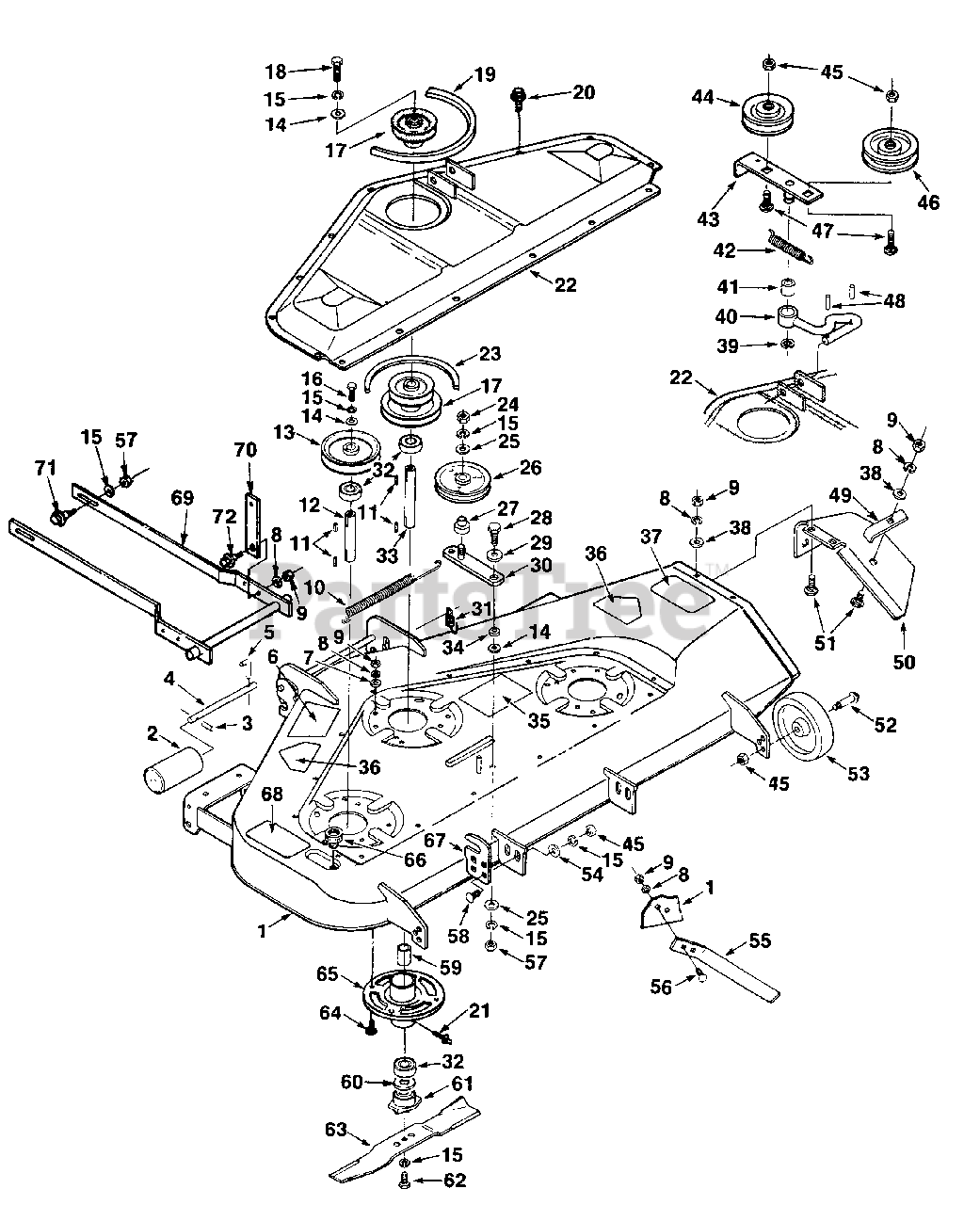

42" Mower Parts Diagram

  • Title

1

Homelite JA991800

MOWER HOUSING ASSEMBLY

$

$

Currently unavailable

2

Homelite JA335178

ROLLER

$

$

Not available

3

Homelite JA461381

PIN- 3/16 x 13/16 roll

$

$

Not available

4

Homelite JA351426

SHAFT- Front roller

$

$

Currently unavailable

5

Homelite JA351494

PIN- Hold

$

$

Not available

6

Homelite JA990320

DECAL- Instruction

$

$

Currently unavailable

7

Homelite JA452006

WASHER-5/16 std flat

$

$

Currently unavailable

8

Homelite JA446136

WASHER- Lock 5/16 hvy
(Superseded to UP03791)

$

$

Not available

9

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

10

Homelite JA352120

SPRING- Idler pulley

$

$

Not available

11

Homelite JA320791

KEY- Parallel 3/16 x 3/16 x 13/16

$

$

Not available

12

Homelite JA339609

SHAFT- Cutter sides

$

$

Currently unavailable

13

Homelite JA392601

PULLEY- R.H. & L.H. Cutter drive

$

$

Currently unavailable

14

Homelite JA310711

WASHER- Pulley retainer

$

$

Not available

15

Homelite JA446142

WASHER- Lock 3/8 hvy

$

$

Not available

16

Homelite JA400300

SCREW- 3/8-24 x 1 1/4 Hex hd. cap

$

$

Currently unavailable

17

Homelite JA392603

PULLEY- Mower drive

$

$

Currently unavailable

18

Homelite JA400308

SCREW

$

$

Currently unavailable

19

Homelite JA992328

V-Belt engine to mower

$

$

Not available

20

Homelite JA408865

SCREW- 1/4-20 x 1/2 hex hd. type T

$

$

Currently unavailable

21

Homelite JA471238

FITTING- Grease

$

$

Currently unavailable

22

Homelite JA990073

MOWER PULLEY COVER ASSEMBLY

$

$

Currently unavailable

23

Homelite JA328821

BELT- Cutter drive

$

$

Currently unavailable

24

Homelite JA443810

NUT- 3/8-16 hex jam

$

$

Not available

25

Homelite JA453011

WASHER- 3/8 SAE flat
(Superseded to PS84010)

$

$

Not available

26

Homelite JA154796

IDLER PULLEY ASSEMBLY

$

$

Currently unavailable

27

Homelite JA344952

STANDOFF- Idler

$

$

Currently unavailable

28

Homelite JA404122

SCREW- 3/8-16 x 1 1/4 C/R truss hd.

$

$

Not available

29

Homelite JA319755

WASHER- Arm retaining

$18.99

$

Usually ships in 3-7 days

0

30

Homelite JA990075

WELDMENT- Idler arm

$

$

Currently unavailable

31

Homelite JA351493

SPRING- Hitch latch front

$

$

Currently unavailable

32

Homelite JA991765

BEARING- Cutter shaft

$

$

Currently unavailable

33

Homelite JA339610

SHAFT- Cutter center

$

$

Not available

34

Homelite JA352594

SPACER- Idler arm pivot

$

$

Currently unavailable

35

Homelite JA335207

DECAL- Belt mtg. instruction

$

$

Currently unavailable

36

Homelite JA339460

DECAL- CPSC warning

$

$

Not available

37

Homelite JA336737

DECAL- Danger

$

$

Currently unavailable

38

Homelite JA453009

WASHER- 5/16
(Superseded to UP07173)

$

$

Not available

39

Homelite JA458036

RING- Tru-arc 5133-62 retaining

$

$

Not available

40

Homelite JA130439

IDLER ROD ASSEMBLY

$

$

Currently unavailable

41

Homelite JA348883

BUSHING

$

$

Currently unavailable

42

Homelite JA357975

SPRING- Extension

$

$

Currently unavailable

43

Homelite JA991220

IDLER PIVOT ASSEMBLY

$

$

Currently unavailable

44

Homelite JA336223

PULLEY- Idler V-groove

$

$

Not available

45

Homelite JA444762

NUT- 3/8-16 prev. tq. hex L'nut

$

$

Currently unavailable

46

Homelite JA336222

PULLEY- Idler backside

$

$

Currently unavailable

47

Homelite JA440124

BOLT- 3/8-16 x 1 3/4 rd. hd. sq. neck

$5.99

$

Usually ships in 3-7 days

0

48

Homelite JA461361

PIN- Roll 1/8 x 7/8

$

$

Not available

49

Homelite JA353272

BRACKET- Deflector clamping

$

$

Currently unavailable

50

Homelite JA991281

DEFLECTOR- Discharge chute

$

$

Currently unavailable

51

Homelite JA441602

BOLT- 5/16-18 x 3/4 rd. hd. sq. neck

$5.99

$

Usually ships in 3-7 days

0

52

Homelite JA376084

BOLT- Shoulder

$

$

Currently unavailable

53

Homelite JA339607

WHEEL- Gauge

$

$

Not available

54

Homelite JA314916

WASHER

$

$

Currently unavailable

55

Homelite JA392604

GUARD- Toe

$

$

Currently unavailable

56

Homelite JA440080

BOLT- 5/16-18 x 7/8 rd. hd. short sq. neck carr

$

$

Currently unavailable

57

Homelite JA443110

NUT- Hex 3/8-16

$

$

Not available

58

Homelite JA441676

BOLT- 3/8-16 x 1 1/4 rd. hd. sq. neck

$12.99

$

Usually ships in 3-7 days

0

59

Homelite JA376076

SPACER- Bearing

$

$

Currently unavailable

60

Homelite JA991614

WASHER- Flat

$

$

Not available

61

Homelite JA339608

ADAPTER- Blade

$

$

Currently unavailable

62

Homelite JA403753

SCREW- Mach Hex hd 3/8-24 x 1 1/4

$

$

Not available

63

Homelite JA519016

CUTTER BAR SET

$

$

Not available

64

Homelite JA400184

SCREW- 5/16-18 x 3/4 hex hd.
(Superseded to UP03381)

$

$

Not available

65

Homelite JA142192

CUTTER HOUSING ASSEMBLY

$

$

Currently unavailable

66

Homelite JA375977

FITTING- Washout

$

$

Currently unavailable

67

Homelite JA992514

BRACKET- Rear hanger

$

$

Currently unavailable

68

Homelite JA336736

DECAL- Danger

$

$

Currently unavailable

69

Homelite JA992511

DRAG LINK ASSEMBLY

$

$

Currently unavailable

70

Homelite JA992512

LINK LIFT ASSEMBLY

$

$

Currently unavailable

71

Homelite JA376094

BOLT- 3/8-16

$

$

Not available

72

Homelite JA354480

BOLT- 5/16-18

$

$

Currently unavailable

Homelite JA991860

SIDE CUTTER SPINDLE KIT

Note: Includes items #65, 12, 59 & 32

$

$

Currently unavailable

Homelite JA991870

CENTER CUTTER SPINDLE KIT

Note: Includes items #65, 33, 59 & 32

$

$

Currently unavailable
