UT-40530 (099858002) - Homelite Water Pump Figure A Parts Diagram

Water Pump

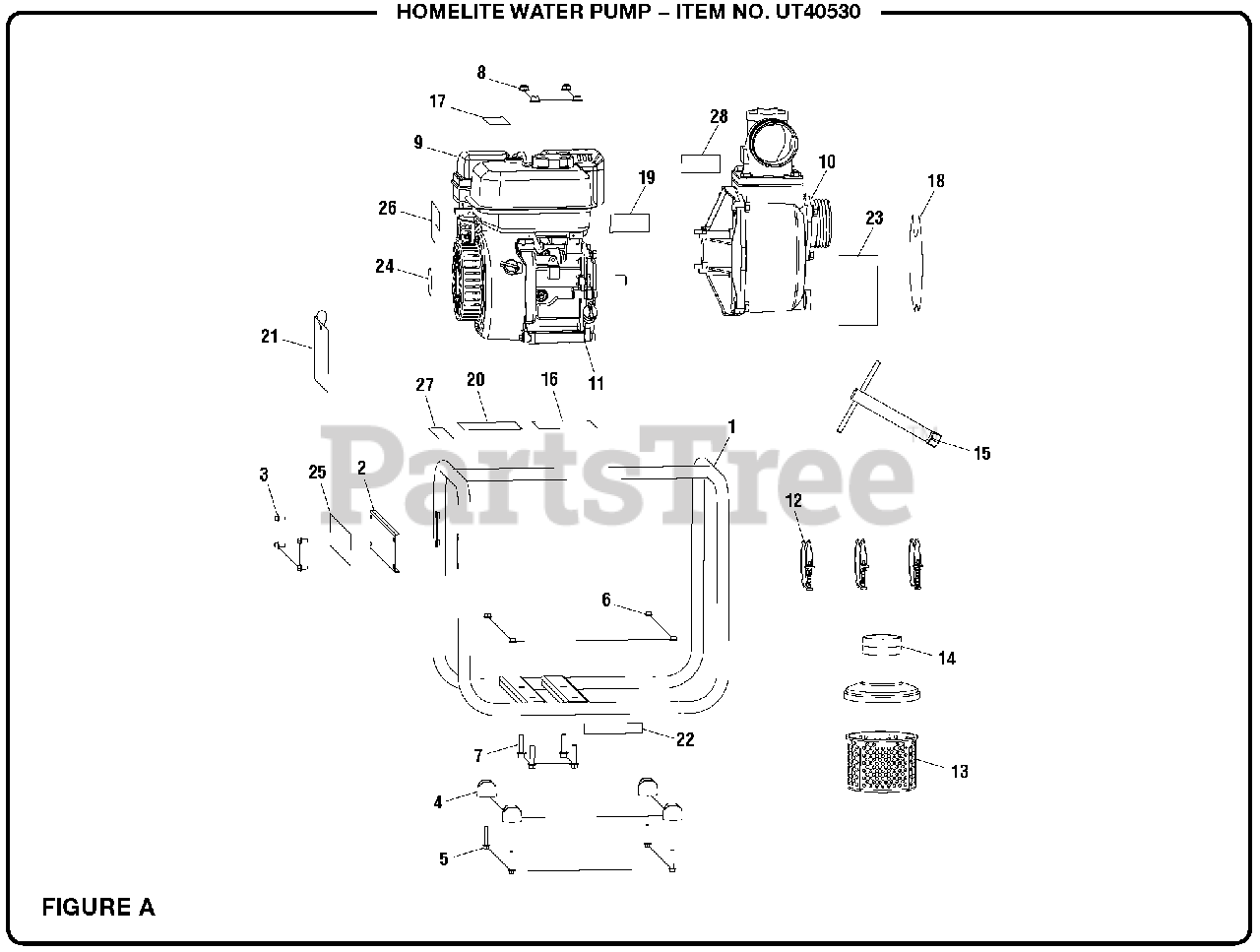

Figure A Parts Diagram

  • Title

1

Homelite 308471047

Frame Assembly

Note: (Inc Key.Nos. 2-6)

$

$

Currently unavailable

2

Homelite 678973004

Front Panel

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 660975011

Bolt (M6 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 570554015

Rubber Foot

$

$

Not available

5

Homelite 660975012

Bolt (M6 x 35 mm, Flange Hd.)

$

$

Not available

6

Homelite 660975013

Lock Nut (M6, Flange Hd.)

$

$

Not available

7

Homelite 661505027

Bolt (M8 x 35 mm, Flange Hd.)

$

$

Not available

8

Homelite 678774001

Lock Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

9

Engine (RATO 212cc)

Note: OWT Industries, Inc., will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

10

Homelite 311198002

Pump Assembly

$

$

Not available

11

Homelite 678424004

Output Shaft Key

$

$

Not available

12

Homelite 308258001

Hose Clamp

$

$

Not available

13

Homelite 519710008

Filter

$

$

Not available

14

Homelite 519710010

Filter Cap

$

$

Not available

15

Homelite 560901008

Spark Plug Wrench

$3.49

$

Usually ships in 3-7 days

0

16

Homelite 940680055

Hot Surface Label

$

$

Not available

17

Homelite 940515028

CPSC Label

$3.49

$

Usually ships in 3-7 days

0

18

Homelite 940654253

Danger Label

$

$

Not available

19

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

20

Homelite 940947009

Combustion Label

$

$

Not available

21

Homelite 940473010

Danger Hangtag

$

$

Not available

22

Homelite 940708019

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940617127

Quick Start Label

$

$

Not available

24

Homelite 940633030

Recoil Housing Label

$

$

Not available

25

Homelite 940779105

Performance Label

$

$

Currently unavailable

26

Homelite 940647096

Choke Label

$

$

Not available

27

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 941081002

Do Not Operate Label

$

$

Currently unavailable

Homelite 990000730

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000732

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable
